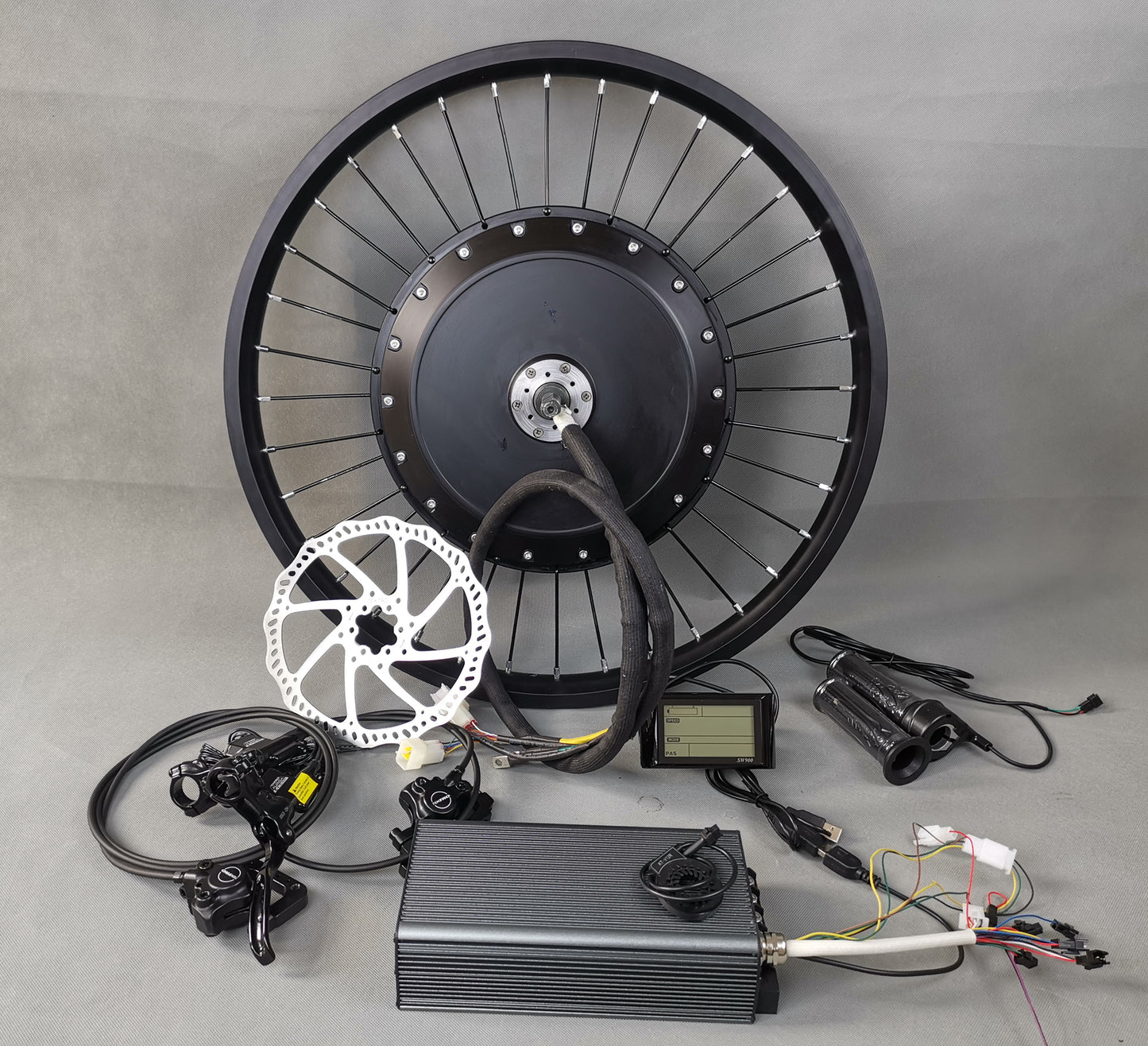

(1)Germany type gearless motor REAR (2)1xAluminum Alloy Fat Rim (3)36xSpokes (4)1xtwist or thumb throttle
(5)2xbrake lever (6)1xcontroller (7)1xInstallation User Manual (8)1xWinding pipe (9)1xLCD(optional)
100km/h High Power60v-96v Brushless Hub Motor 3000w 5000w 8000w E Bike Conversion Kit with 18''19''20''21''26'700c28''29'''wheel
100km/h High Power60v-96v Brushless Hub Motor 3000w 5000w 8000w E Bike Conversion Kit with 18''19''20''21''26'700c28''29'''wheel
Regular price
£256.11 GBP
Regular price
£0.00 GBP
Sale price
£256.11 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
100km/h High Power60V-96V brushless hub motor 3000w 5000w 8000w e bike conversion kit with 18''19''20''21''26'700C28''29'''wheel
Product Description
|
Motor power
|
250W,350W,500W750W, 1000W,1500W,2000W,3000W,5000W
|
|
Design
|
Brushless gearless dc
|
|
Axle
|
10mm*14mm
|
|
Casstte Fly
|
8s,9s ( cassette motor only ) $20 extra
|
|
controller
|
Smart controller
|
|
Throttle
|
Thumb/Twist throttle
|
|
Brake
|
Disc brake / Brake sensor
|
|
waterproof
|
IP54
|
|
Open size
|
135mm rear / 100mm front
|
|
Wheel size
|
16" 20" 24" 26" 28" 29"
|
|
Display
|
LED / LCD / Colorful display Optional
|
500w /750w /1000w /1500w /2000w front or rear wheel electric bike conversion kit for ebike
1.95-inch wide mountain bike tire
Fat tire of 3.0 inch wide snowy bicycle
Fat tire of 4.0 inch wide snowy bicycle
Detailed Images
36v/48V brushless Gearless Hub motor
1). Very light and low noise
2). 4.4 reduction ratio with high torque
3). 100mm /135mm dropout for bikes
4). OEM warmly welcome
2). 4.4 reduction ratio with high torque
3). 100mm /135mm dropout for bikes
4). OEM warmly welcome
36V/48V 22A-40A brushless controller:
2). 120 degree phrase position(120º)
Pedal-assistant sensor(PAS):
1). 5/8 magnet points available with good quality
2).5 magnet for the kit without display ,8 magner for display kit
3). Good response speed and sensive for pedal assistance
2).5 magnet for the kit without display ,8 magner for display kit
3). Good response speed and sensive for pedal assistance
Thumb throttle/Twist throttle:
1). Wuxing brand 57XDX
2). Power indicator/Lock available
2). Power indicator/Lock available
Display(LCD3):
1. Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
E-brake/Brake sensor:
1). Size: 36mm*12mm*16mm(hydralic brake sensor is also ok )
2). Fit for all bikes with normal or hydraulic disc brakes
3). Easy installation,no need to remove original brake levers
4). Cut power automatically once brakes move
2). Fit for all bikes with normal or hydraulic disc brakes
3). Easy installation,no need to remove original brake levers
4). Cut power automatically once brakes move
