16inch-28inch 700C 48V1000W Wheel Hub Motor Electric Bike Cycle Conversion Kit

Name: 16inch-28inch 700C 48V1000W Wheel Hub Motor Electric Bike Cycle Conversion Kit
Brand: konstantxpress
SKU: 158272875019684_355721178
Price: 488.79 GBP
Availability: InStock

£488.79 GBP

~~£0.00 GBP~~ £488.79 GBP

Sale Sold out

Tax included.

Product variants

Quantity

48V 1000W Brushless Non-gear Hub Motor Wheel

1.Easy to convert wheel Electric Bike conversion kit for bicycle withrear rotate fork size “135-142mm” Flywheel is ≤ 9 Speeds(rear
cassette fork size “≥142mm” Flywheel is 8 Speed)(front fork size“≥100mm”). Easily convert your bike into a motorized bike within
2-hour.

2.Stable Drive System, This motor wheel, which is compatible with the disc brake and V-brake, has a rated power of 1000W,
providing ideal power for vehicles. Strong and efficient, this motor greatly enhances riding comfort and is suitable for touring
bikes, commuter bikes and mountain bikes.

3.Super Cost-Efficient, speed up to 35-40Km/h, torque up to 325-331RPM ;Brake Levers cut off the power supply to the motor safely.

Rated Voltage(V)	48V
Rated Power(W)	1000W
Wheel Diameter(Inch)	16"20”24"26"28"29"700C Rim
Rated Speed(km/h)	35-40KM/H

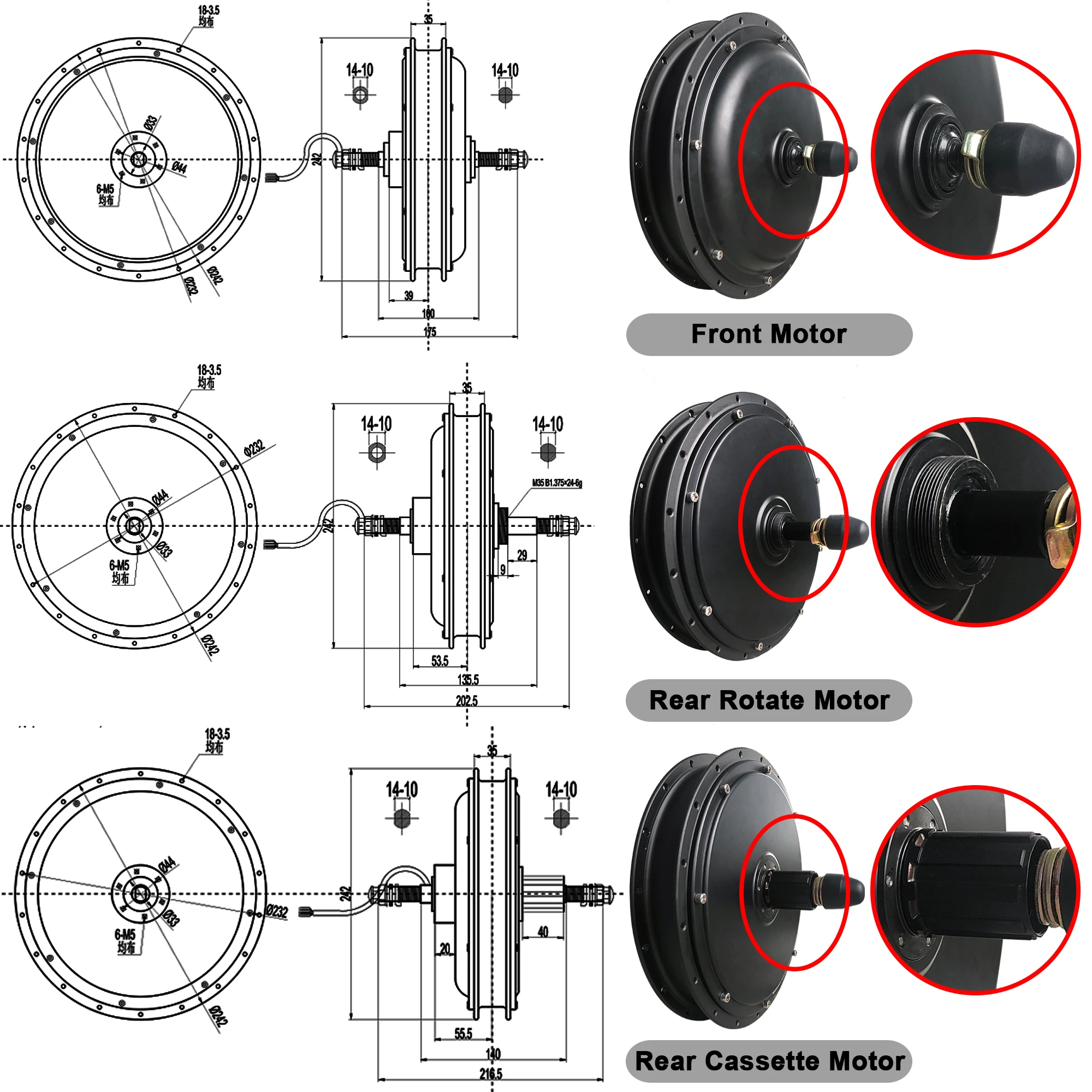

Position	Front wheel or Rear wheel
Construction	Brushless Non-gear Hub Motor Wheel

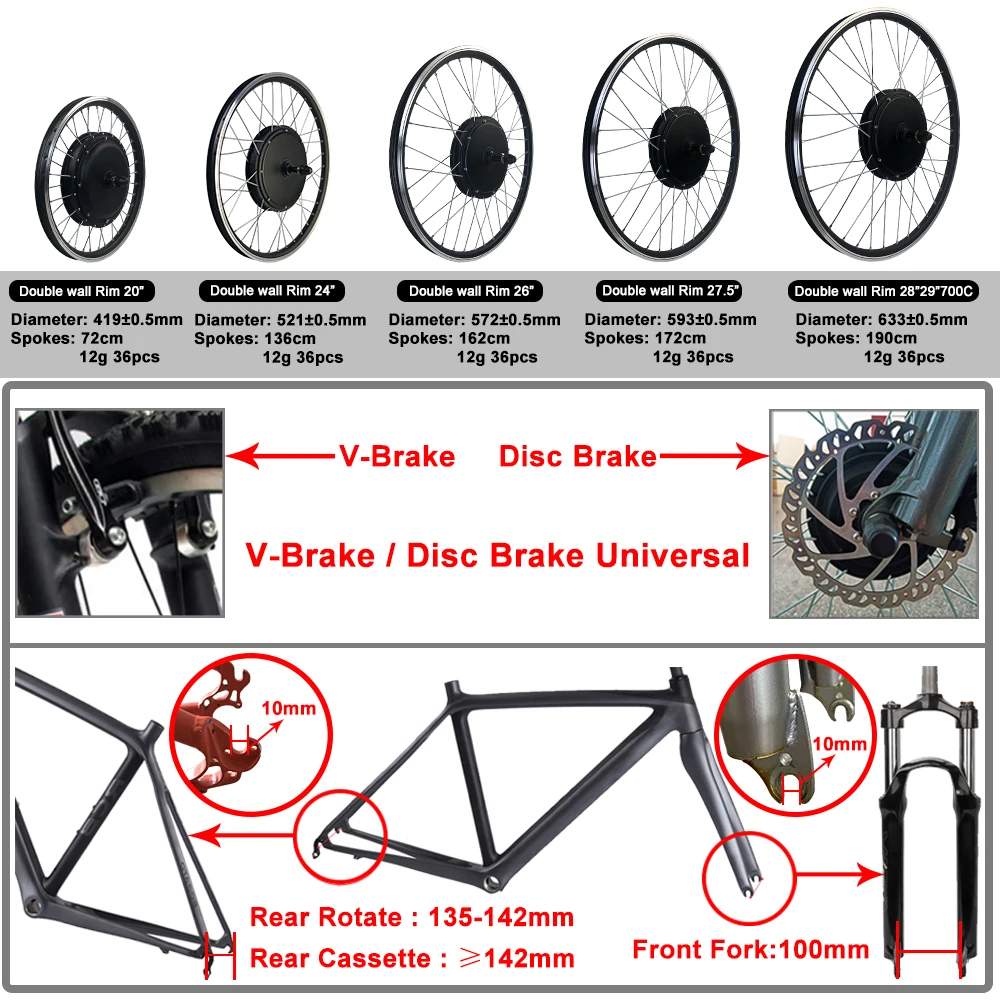

Dropout(mm)	Rear Rotate 135-142mm / Rear Cassette≥142mm
Brake Type	Disc Brake
Freewheel	9 Speeds
Rim wheel	Spoked with double-wall Aluminum alloy rim with 36 nuts, stainless steel spokes
Max Torque	57.5-59 N.m

According to your Requirment

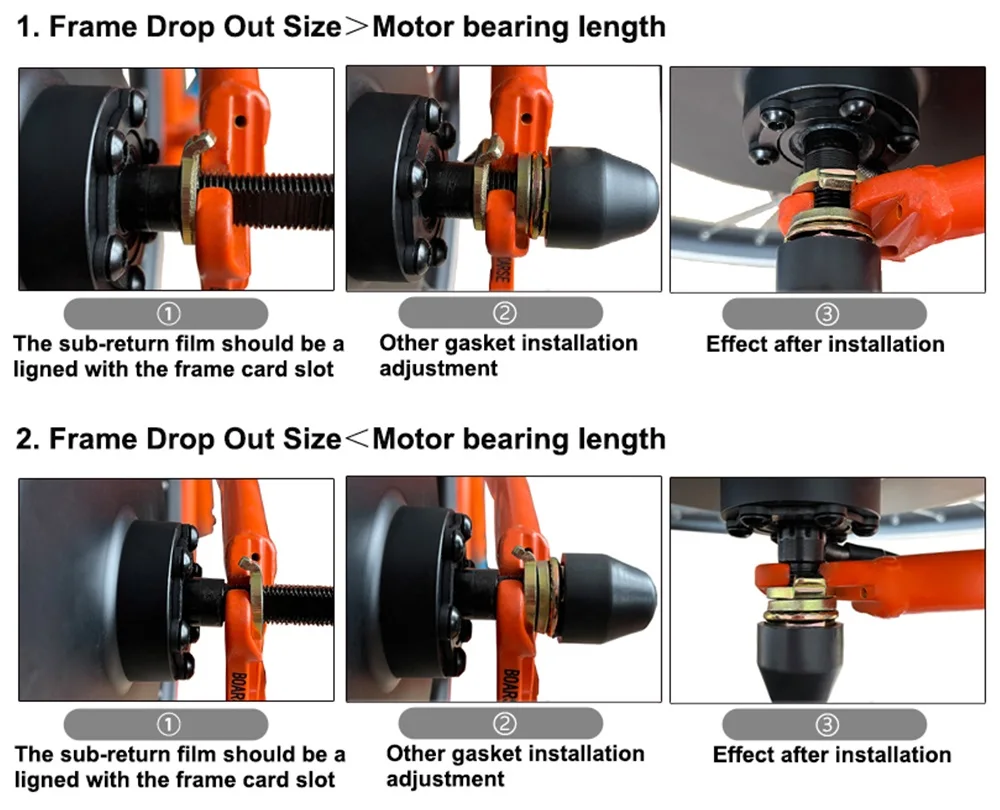

1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm

2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.

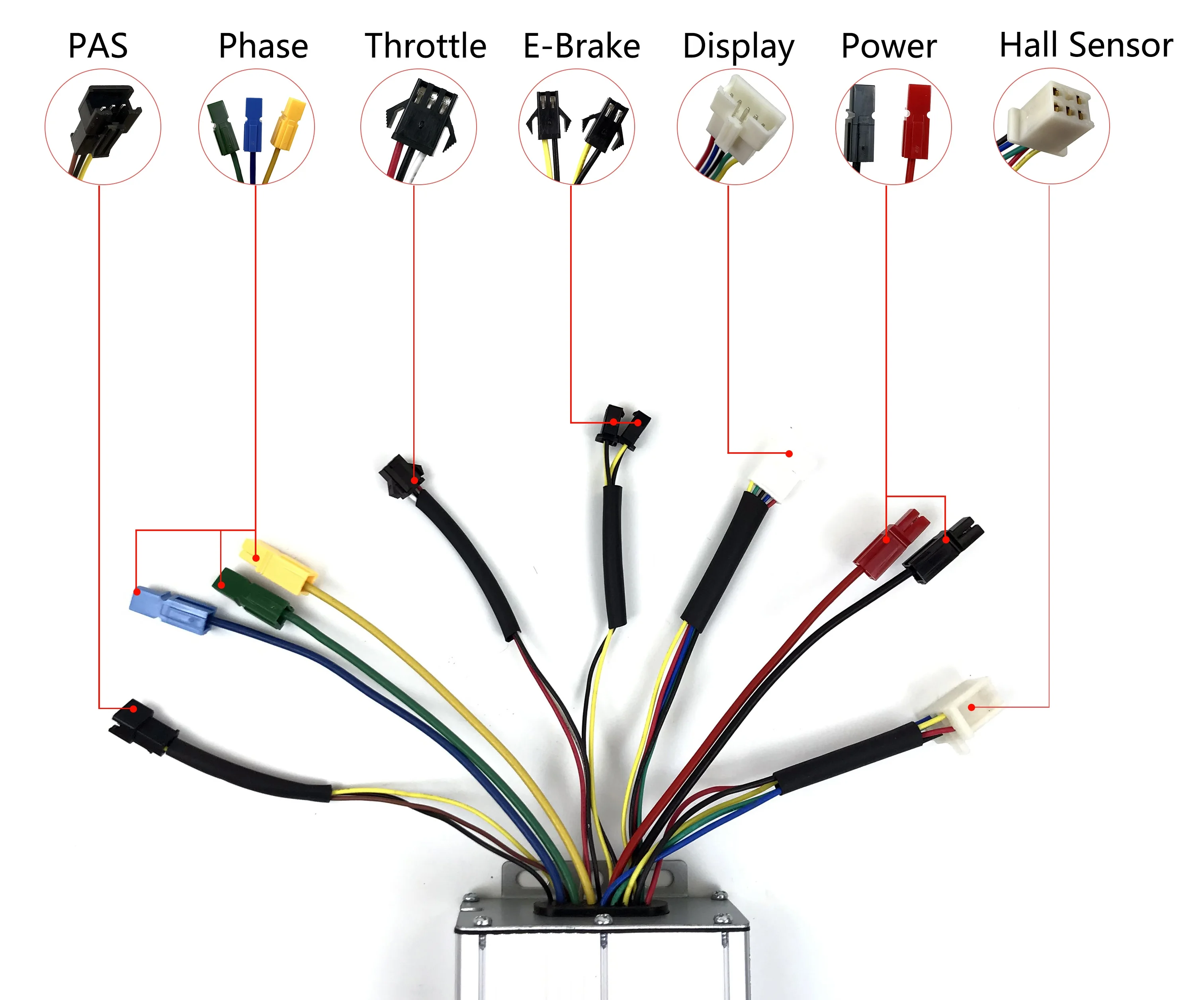

3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.

4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.

5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.

6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.

7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.

8.A:ODM,OEM?
B:it is possible.
