8fang e-bike electric cycle conversion kit bafang 36v 500w bbs02b mid drive motor kit with battery
8fang e-bike electric cycle conversion kit bafang 36v 500w bbs02b mid drive motor kit with battery
Regular price
£2,116.43 GBP
Regular price
£0.00 GBP
Sale price
£2,116.43 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Click what you like
Product list
|
Mid Drive Motor built in controller
|
1 set
|
|
Brake Levers (can be changed to Hydraulic Brake Sensors for Free in China, Optional)
|
1 pair
|
|
Crank
|
1 pair
|
|
Chain wheel (BBS01,BBS02 44T/46T/48T/52T Optional, 46T default)
|
1 pair
|
|
Thumb Throttle
|
1 set
|
|
Display ( DPC18, C965, 850C, Optional)
|
1 pc
|
|
Speed Sensor
|
1 set
|
|
4 to 1 EB-BUS Cable
|
1 pc
|
|
Accessories
|
1 set
|
|

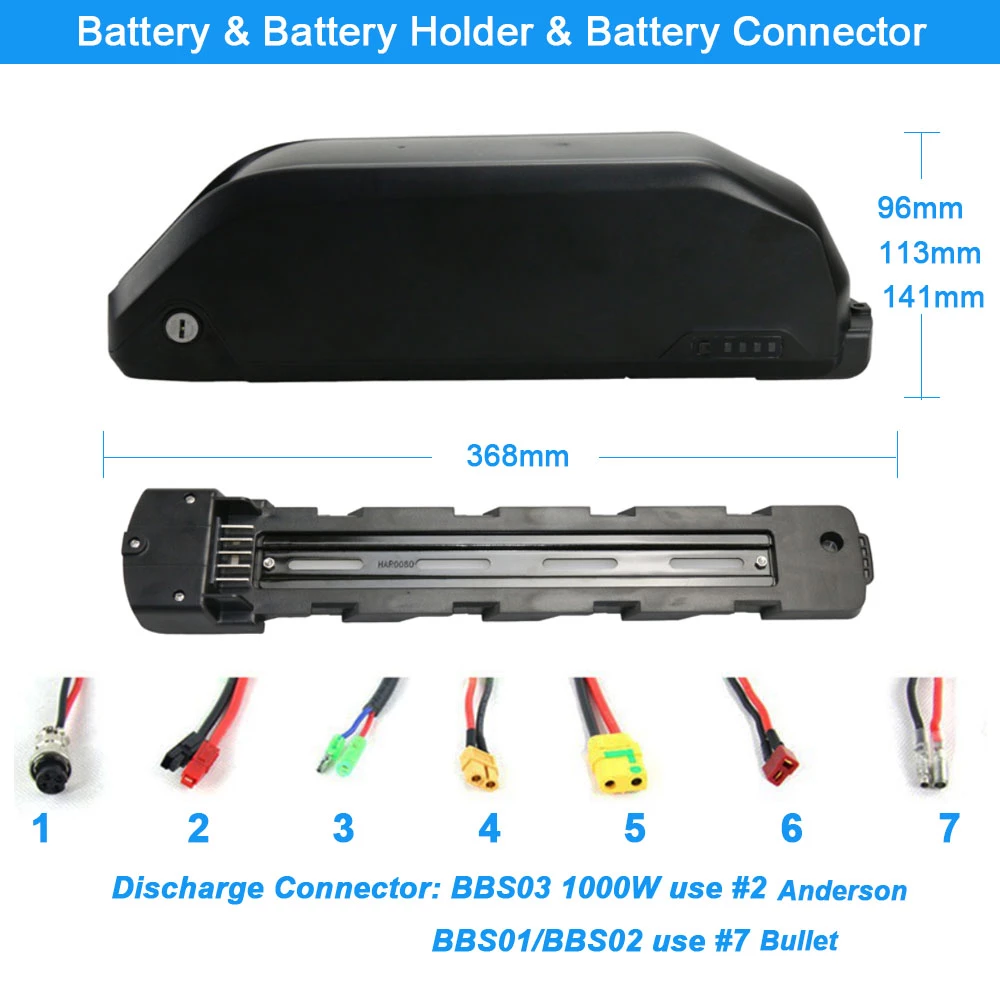

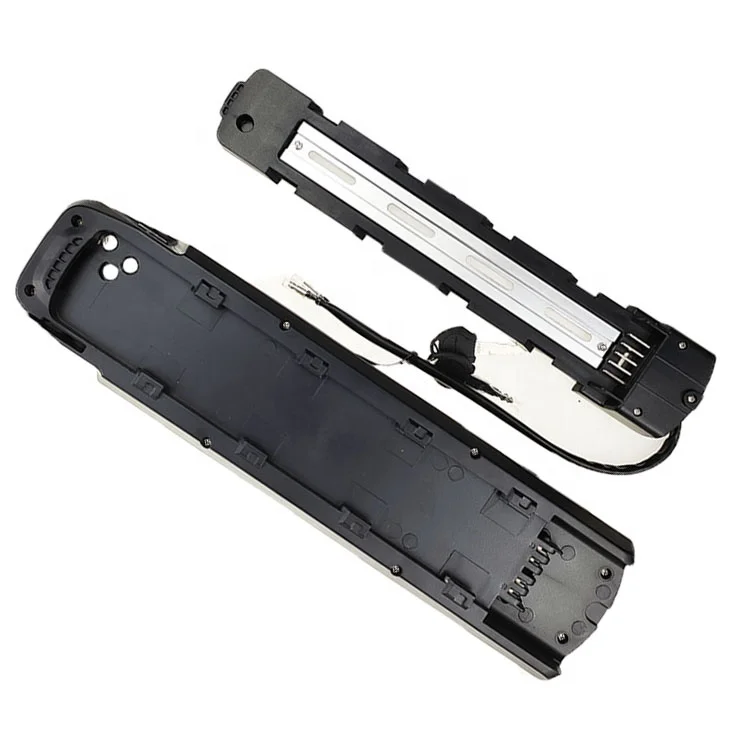

eBike Battery
|
1pc
|
|
Charger
|
1pc
|
|
Motor Battery Connection Cable (Anderson & Bullet interface)
|
1pc
|
|
XT60 Connector, Please kindly check with us if it is available right now.
|
If ship from EU warehouse, default charger plug is EU standard, please pay attention to it.
Optional item listed above, Please kindly mark while you order if you need or wanna change.
Product Paramenters
|
Model type
|
36V BBS02B/BBS02
|
|
Power
|
500W
|
|
Voltage
|
36V
|
|
Controller Current
|
25A
|
|
No Load Speed(RPM)
|
120
|
|
Load Speed(RPM)
|
113
|
|
MAX Torque
|
100 N.m
|
|
Efficiency
|
> 80%
|
|
PAS SENSOR
|
Speed Sensor
|
|
Reduction Ratio
|
1 : 21.9
|
|
Centification
|
CE/EN 14764/ROHS
|
|
Waterproof Grade
|
IP65
|
|
Net Motor Weight
|
2.24kg
|
|
Bracket bottom length
|
68mm
|
|
Motor Operation Temperature
|
-20℃-45℃
|
|
Display Working Temperature
|
-20℃-80℃
|
Product Description
8fang e-bike electric cycle conversion kit bafang 36v 500w bbs02b mid drive motor kit with battery
Function:
It's the 8FUN newest version has two plugs for gear shift sensor and 6V light. (this product doesn't include light and gear sensor.)
Our Service
1. Warranty for Battery and Motor is 12 months. (except physical damage and wrong operation)
1. Warranty for Battery and Motor is 12 months. (except physical damage and wrong operation)
2. EU countries, order from Spain,tax paid by us. Ship in 7 working days. Note: Bulgaria, Malta, Cyprus, Monaco, Switzerland, Norway is not included.
3. Order Motor from China, Russia/United States tax paid by us, usually Ship by CDEK/Fedex. Other countries, Please check tax reduction service with us.
4. Order Battery from China, usually Ship by DPD/UPS/TNT. Tax free. 5. Follow our store to get more coupon and promo discount.
Attention
1. Please fill in your accurate and complete contact information carefully before placing an order, and keep the AliExpress
Message unblocked. Any questions, we can get in touch in time.
Attention
1. Please fill in your accurate and complete contact information carefully before placing an order, and keep the AliExpress
Message unblocked. Any questions, we can get in touch in time.
2. If your address is remote areas or in an island, please contact us before order, so that we can check whether we can arrange shipping to you.
3. If your country is Norway, please send your address and zip code to check if there is battery service to your city, before you order this e-bike conversion kit
4. China warehouse: Battery and motor will send separately, please do not worry, we will provide you 2 tracking numbers too. According to different country and region, battery parcel will delay 7-15 days to arrive.
5. When your country is Korea, please send your personal tax number and your birth date to us after you order it, many thanks.
