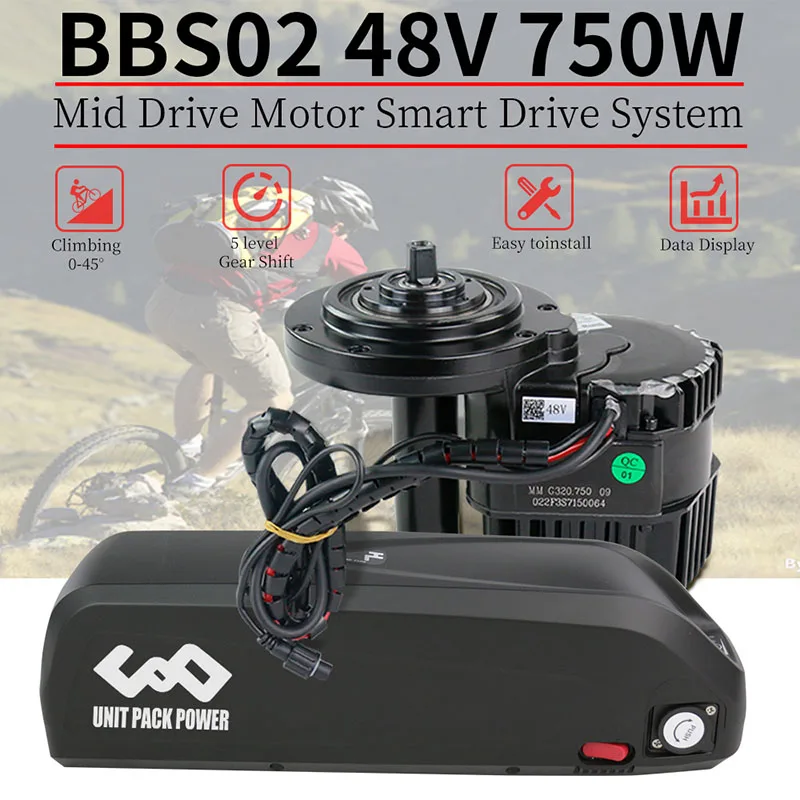

Bafang BBS02 Motor 48V 750W Mid Drive Electric Bike Motor Conversion Kit With Lithium Battery
Bafang BBS02 Motor 48V 750W Mid Drive Electric Bike Motor Conversion Kit With Lithium Battery
Regular price
£541.81 GBP
Regular price
£0.00 GBP
Sale price
£541.81 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Bafang BBS02 Motor 48V 750W Mid Drive Electric Bike Motor Conversion Kit With Lithium Battery
Specification
|
Electric Bike Conversion Kit With Lithium Battery
|
||||||
|
Bafang Model
|
BBS02B
|

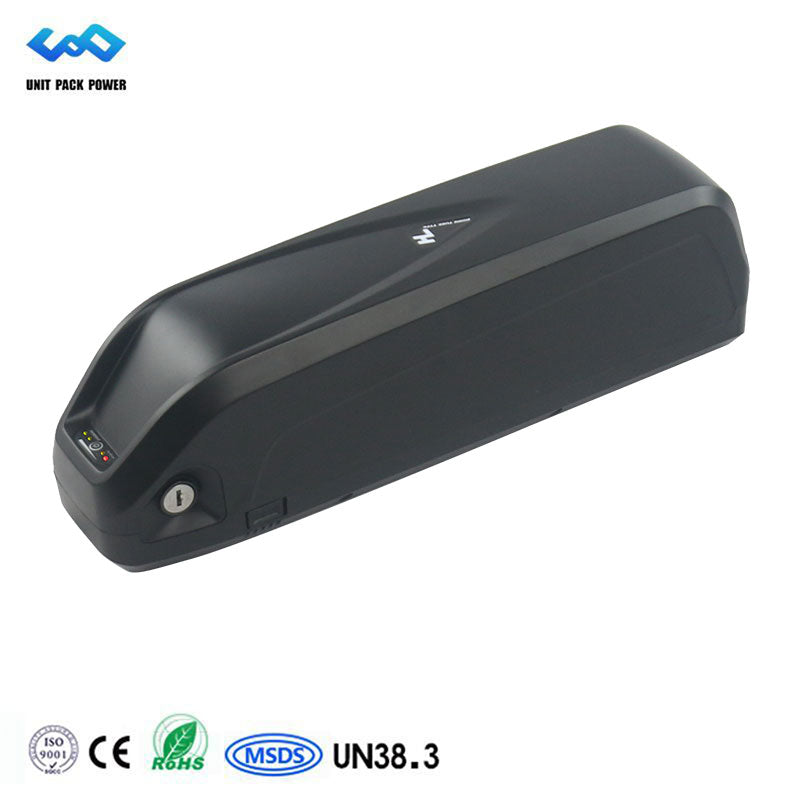

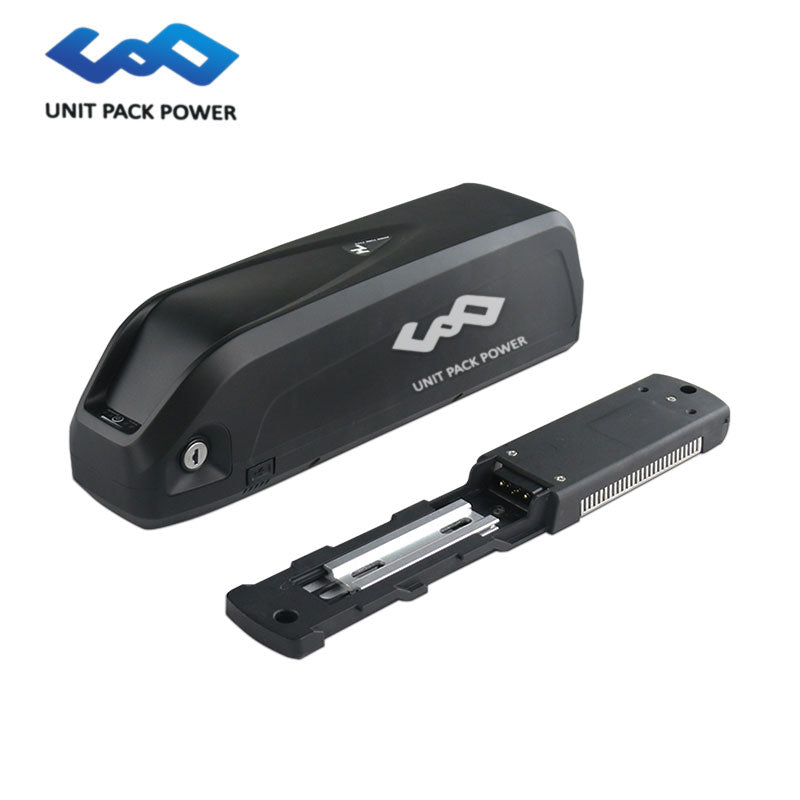

Battery model
|
S039-3
|
|||
|
Power
|
750W
|
Capacity
|
13ah
|
|||
|
Voltage
|
48V
|
Voltage
|
48V
|
|||
|
Controller Current
|
25A
|
Nominal Power
|
624 Watt Hours
|
|||
|
No Load Speed(RPM)
|
140-160
|

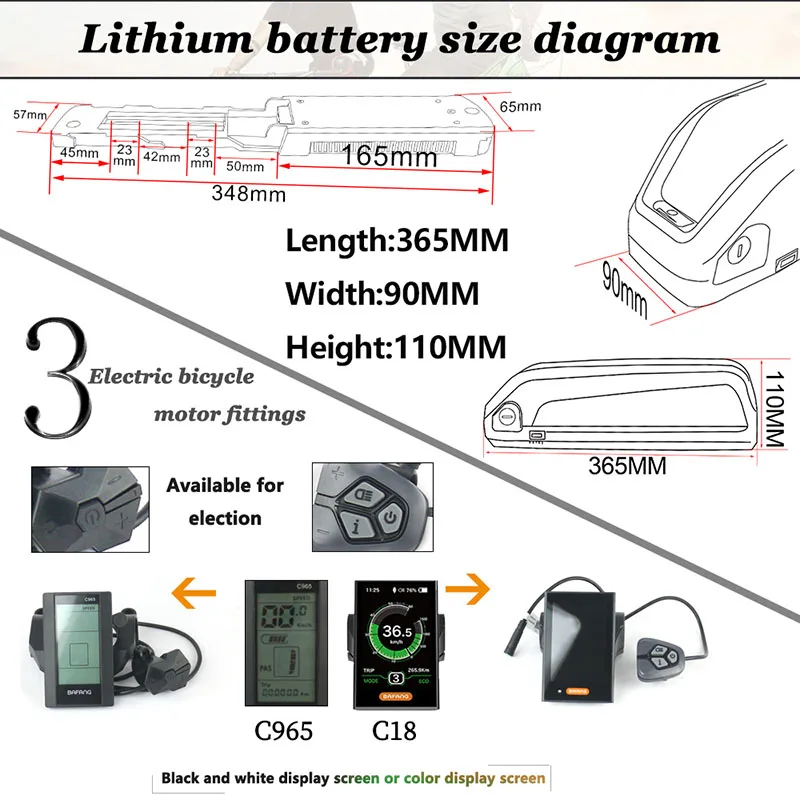

Battery size
|
365*90*110mm
|
|||
|
Load Speed(RPM)
|
120-135
|
Composed Type
|
13S5P
|
|||
|
MAX Torque
|
160 N.m
|
Battery Pack Cell
|
Powerful Brand 2500mAh
|
|||
|
Max speed
|
50-55km/h
|
Built-in BMS
|
30Amp continuous 90±10Amp maximum
|
|||
|
Efficiency
|
> 85%
|
Riding Mileage
|
31~44km
|
|||
|
PAS SENSOR
|
Speed Sensor
|
Charge Cut-off Voltage
|
54.6V
|
|||
|
Waterproof Grade
|
IP65
|
Discharge Cut-off Voltage
|
39V
|
|||
|

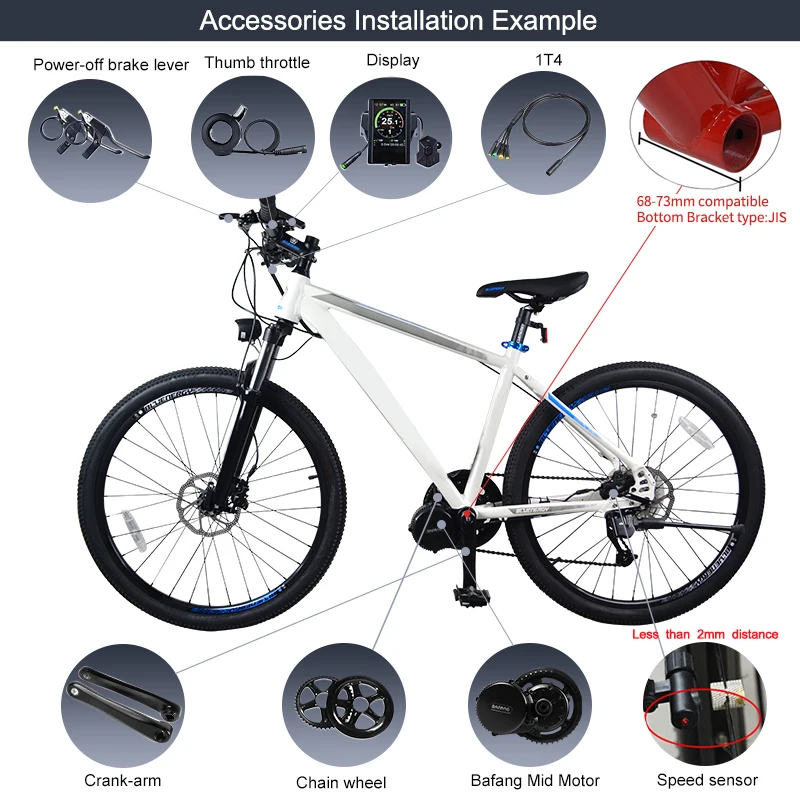

Bracket bottom length
|
68mm
|
Battery Weight
|
6.5kgs
|
|||
|
Display
|
C965/DPC18
|
Battery Charger
|
2A Standard Charger
|
|||
|
Weight
|
7.6kgs
|
Cycle Life
|
800 Cycles
|
|||
|
Chainwheel
|
46T
|
Charge Temperature
|
0 to 45°C
|
|||
|
Motor Operation Temperature
|
-20℃-45℃
|
Discharge Temperature
|
-20 to 65°C
|
|||
Product Description
