Bafang BBS02B 36V 500W Mid Drive Motor Electric Bike Conversion Kit
Bafang BBS02B 36V 500W Mid Drive Motor Electric Bike Conversion Kit
Regular price
£2,977.48 GBP
Regular price
£0.00 GBP
Sale price
£2,977.48 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Product Description
Service
1. If your brake lever is Hydraulic Brake. We can upgrade the ebrake to brake sensor. Please leave a message when you place the order.
2. We supply 44T 46T 48T 52T chainwheel. Please also leave a message to let us know how many teeth chainwheel you need. Thanks.
3. For the battery connector, we supply 3 versions: Bullet, PP30, XT60. Please also leave a message to tell us your option. Thanks.
4. If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5. Standard bottom bracket: 68mm.
2. We supply 44T 46T 48T 52T chainwheel. Please also leave a message to let us know how many teeth chainwheel you need. Thanks.
3. For the battery connector, we supply 3 versions: Bullet, PP30, XT60. Please also leave a message to tell us your option. Thanks.
4. If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5. Standard bottom bracket: 68mm.
If your bottom bracket is 73mm, 100mm or 120mm, please contact us for new price.
6. This kit is not for Carbon fiber bicycle.
6. This kit is not for Carbon fiber bicycle.
7. There is the light function in this kit. If you don't need the light function, please contact us for the new price.
8. This kit include the tool for installation, if no need tool, please tell us.
Main parameter
Power:36V 500W
Construction: Gear drive
Max Torque: 100 N.m

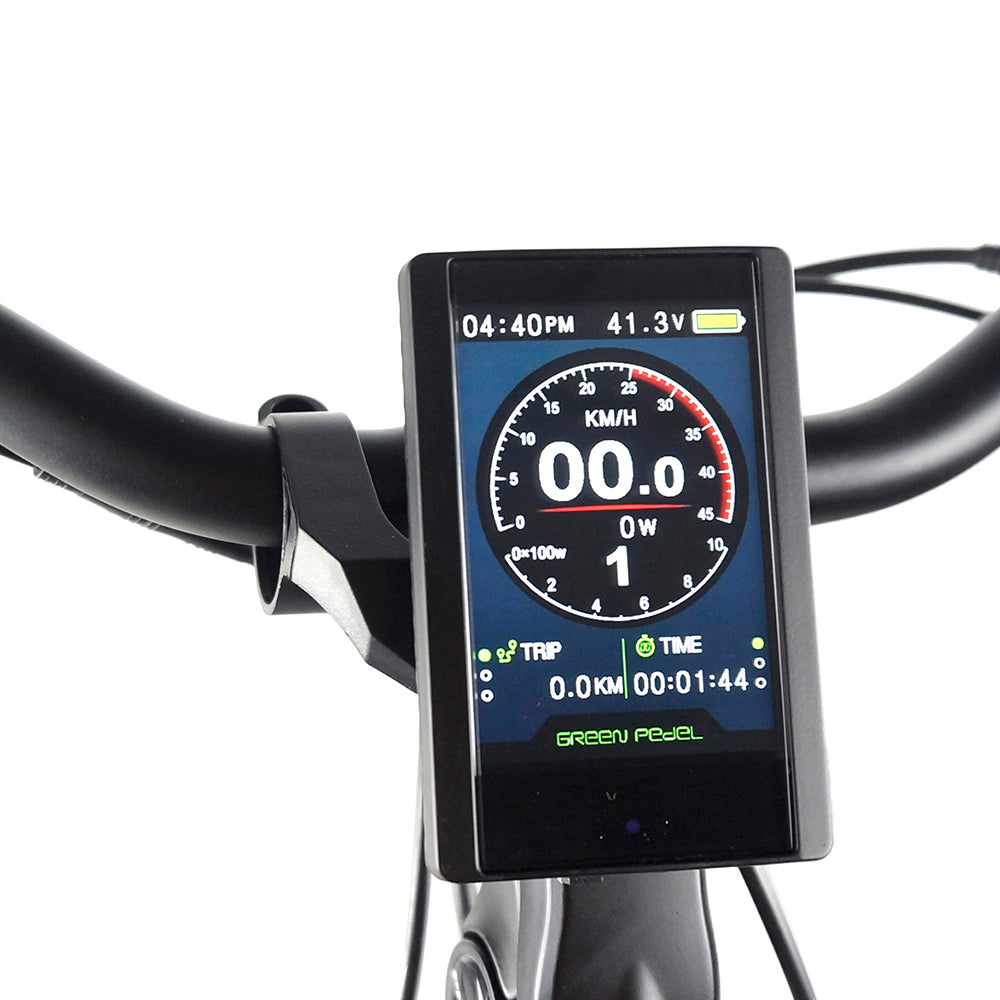

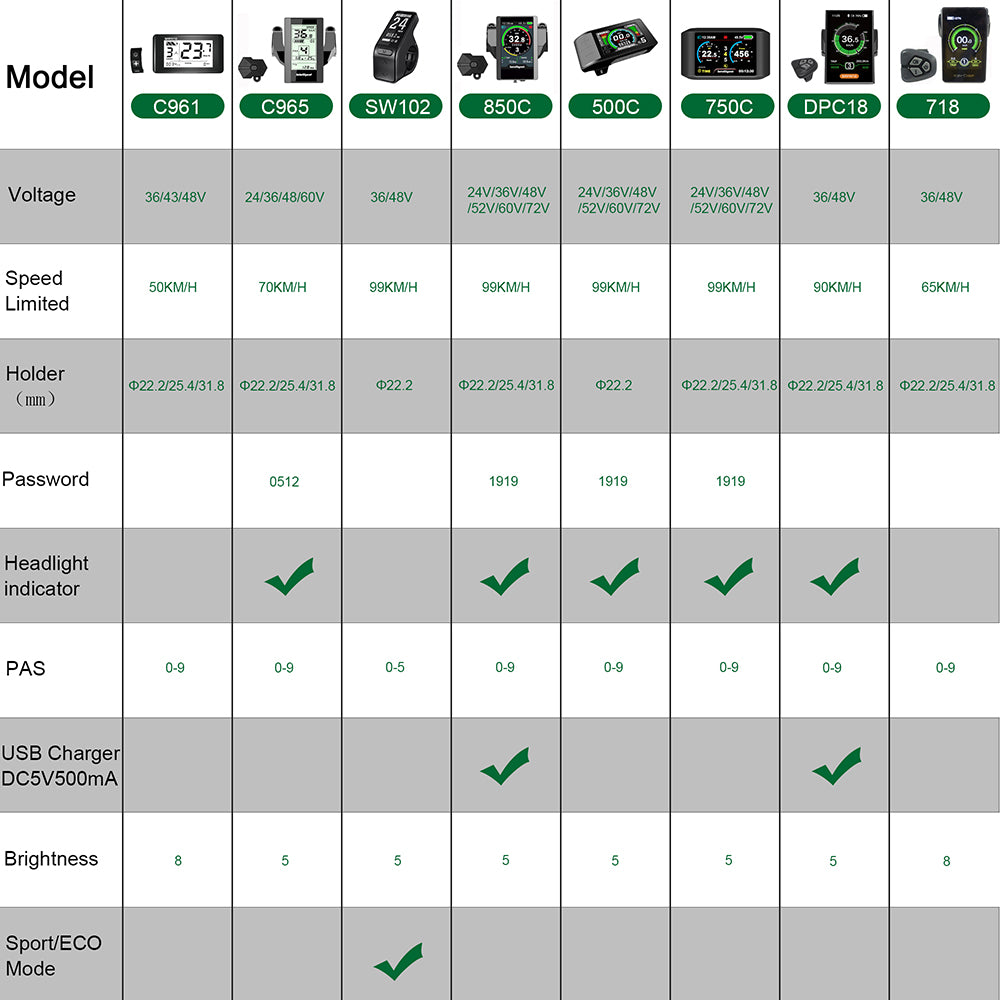

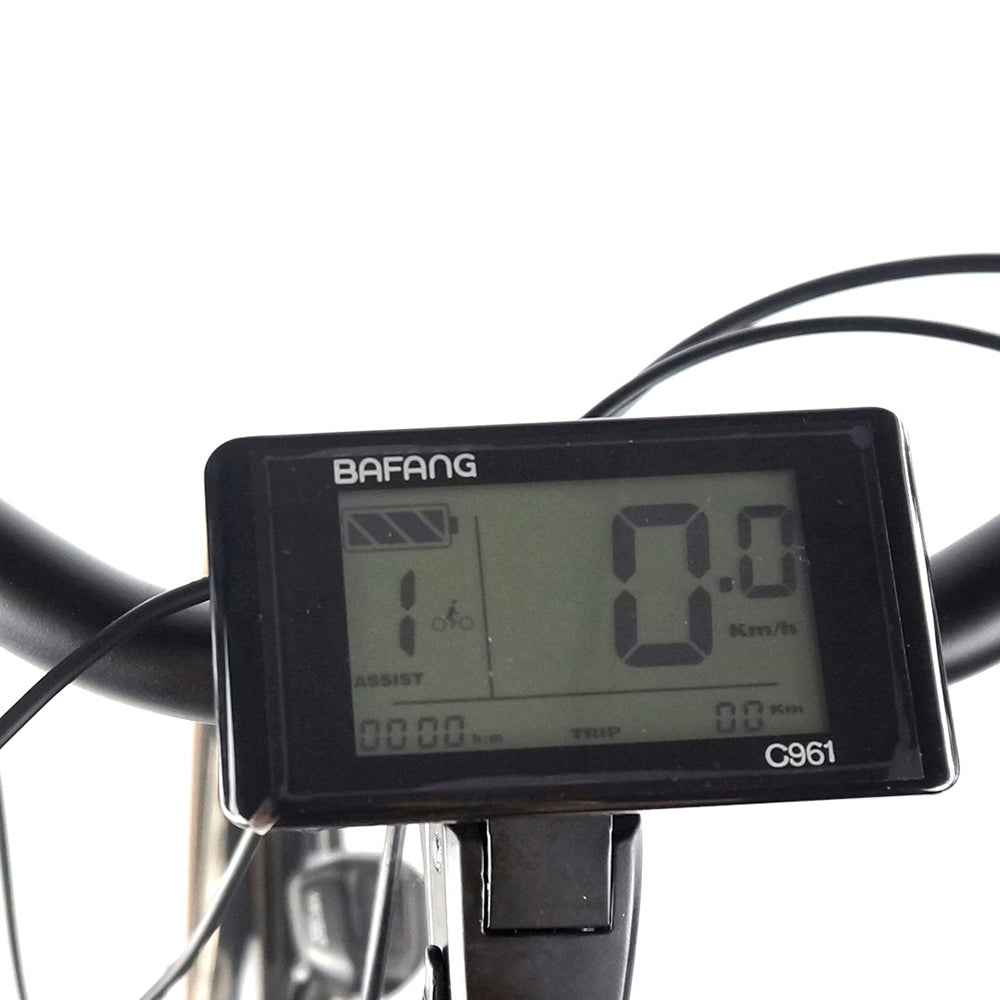

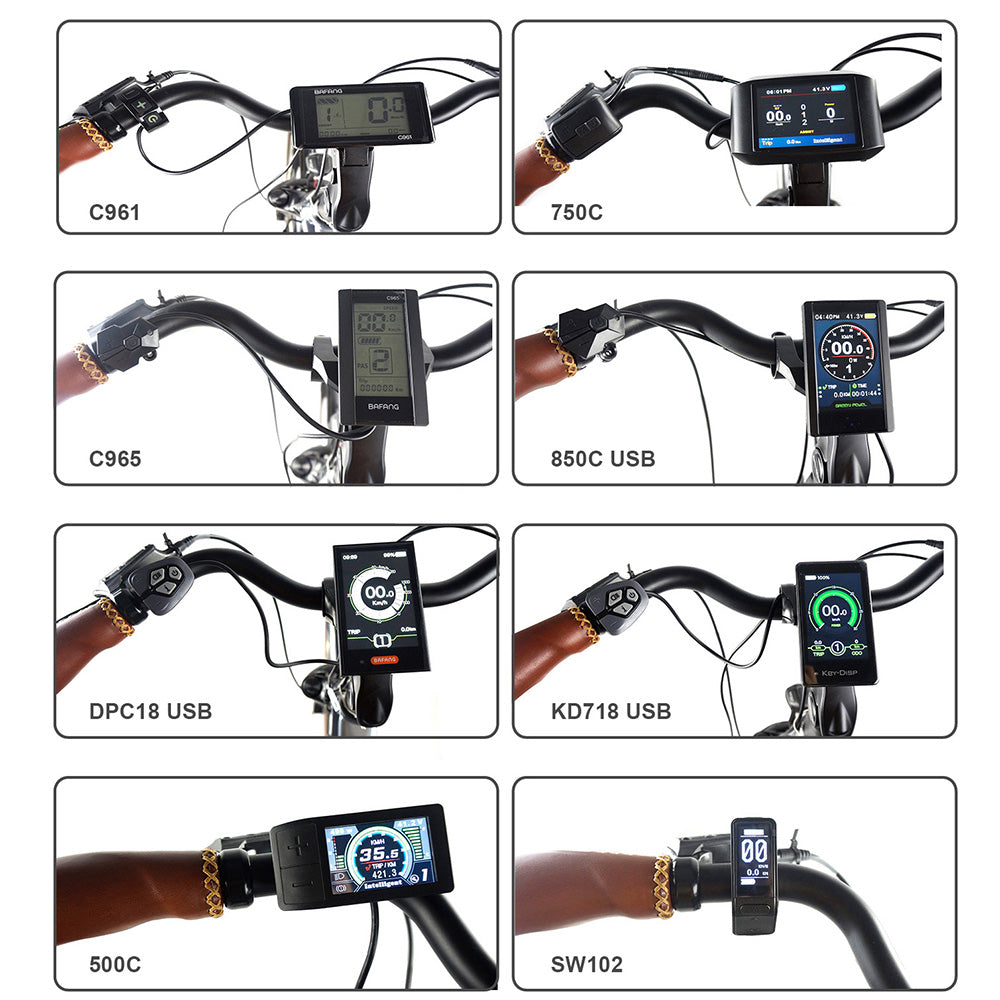

Display: C961 C965 SW102 / 850C 750C DPC18 KD718 500C (colorful display) Optional
Integrated Controller Current :18A
Teeth Number:44T 46T 48T 52T (Optional)
Pedal sensor: speed sensor
Noise Grade: ＜55dB
Certifications : CE / EN14764 / ROHS
Salt spray test standard (h): 96
Construction: Gear drive
Max Torque: 100 N.m
Display: C961 C965 SW102 / 850C 750C DPC18 KD718 500C (colorful display) Optional
Integrated Controller Current :18A
Teeth Number:44T 46T 48T 52T (Optional)
Net Motor Weight: 4.3kg
Bracket bottom length:68mm
Shaft standard: JIS
Shaft standard: JIS
Display Working Temperature:-20-80C
Waterproof Grade:IP65
Efficiency ≥80Pedal sensor: speed sensor
Noise Grade: ＜55dB
Certifications : CE / EN14764 / ROHS
Salt spray test standard (h): 96

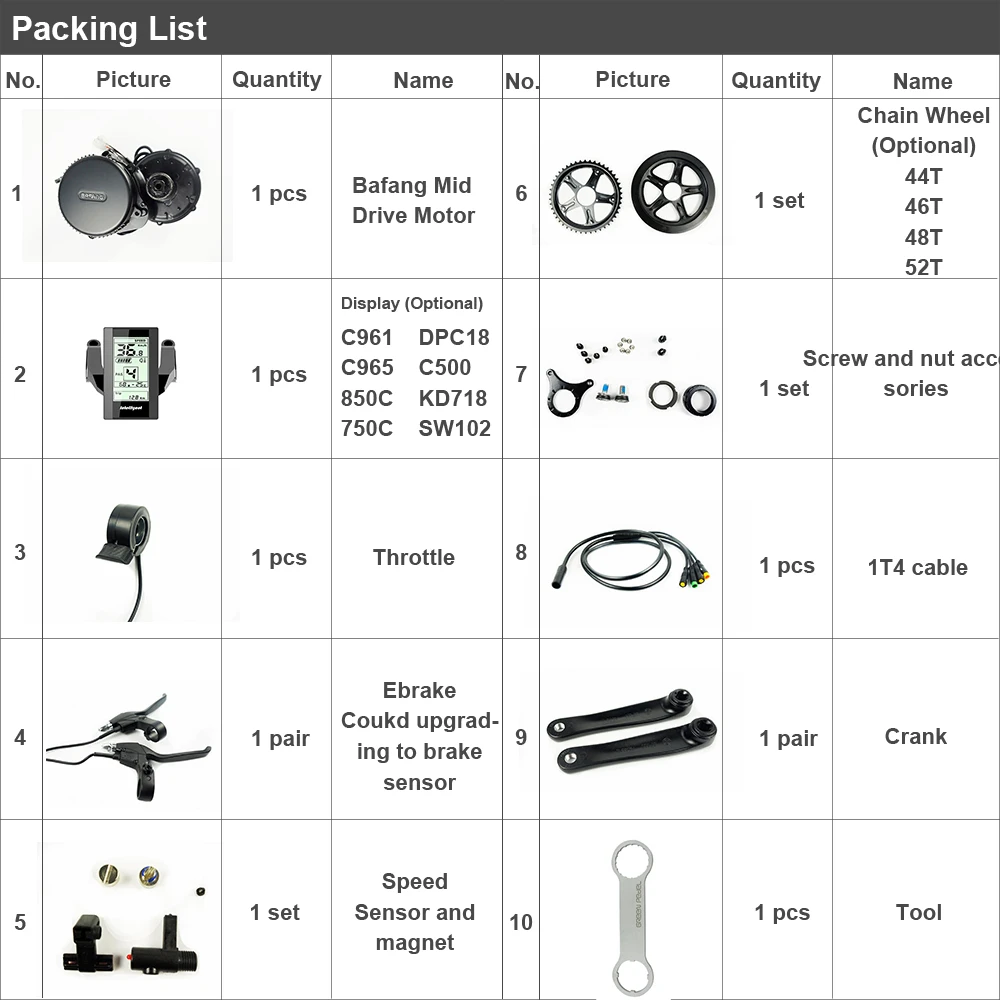

Packing included
1 * 36V 500W Mid Drive Motor
1 Pair * Brake Levers (can be changed to brake sensor for free, please kindly leave us message if you need)
1 Pair * Crank
1 Pair * Chainwheel (44T/46T/48T/52T opition, please kindly leave us message if you want change the chain wheel)
1 Set * Thumb Throttle
1 Set * Speed Sensor
1 * Display ( Optional)

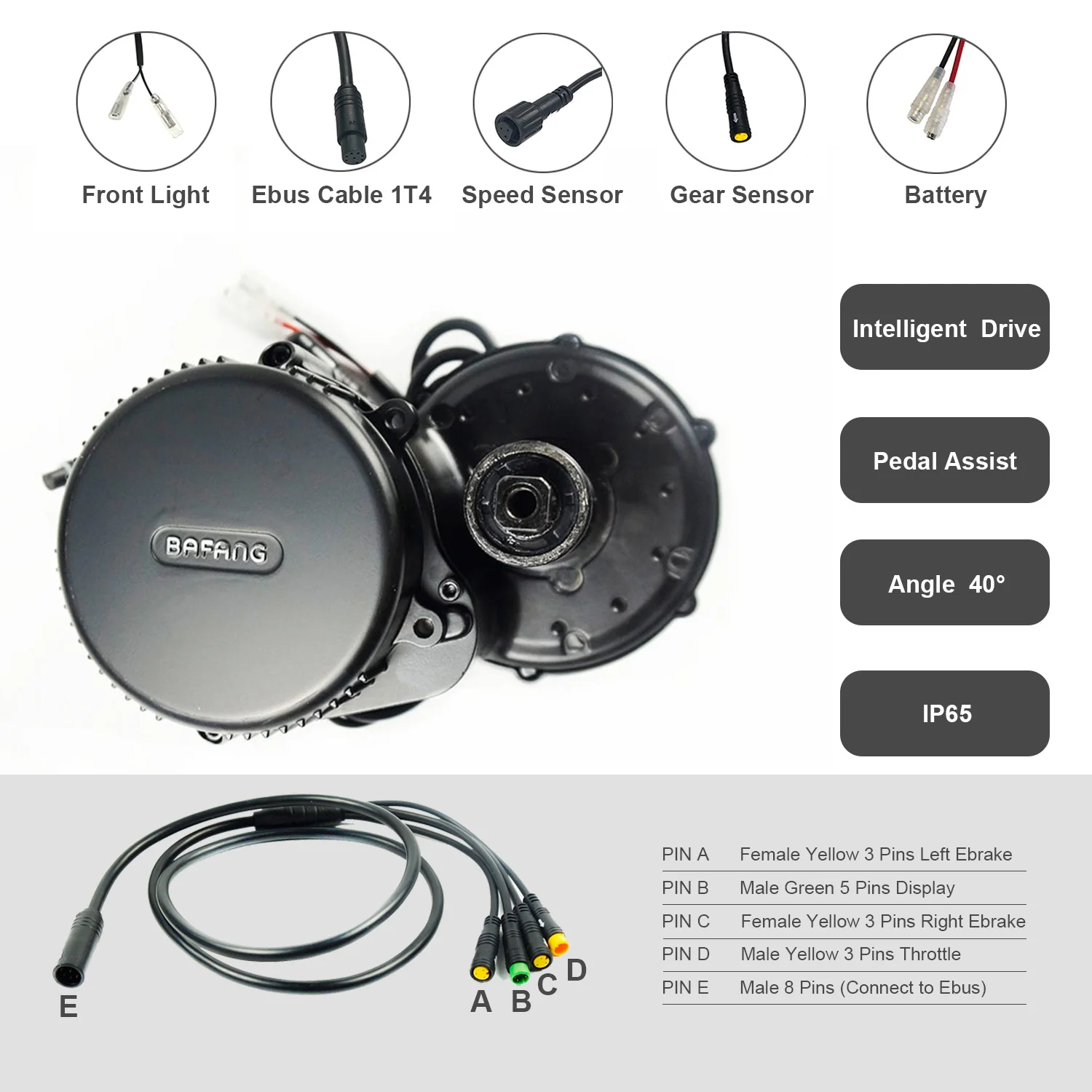

1 * 4 in 1 Cable
1 * Accessories

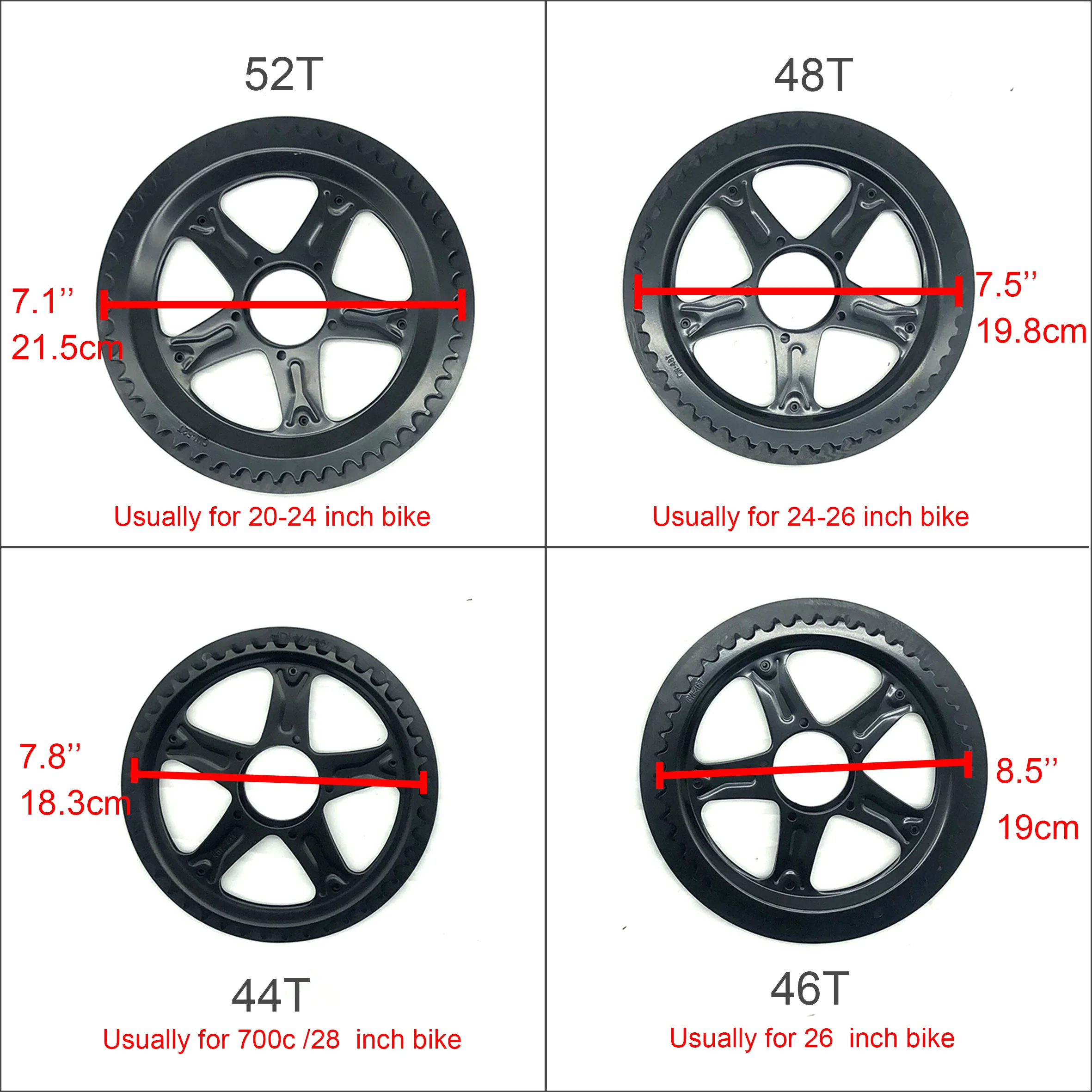

Chianwheel
There are 44T 46T 48T 52T chainwheel for option.
