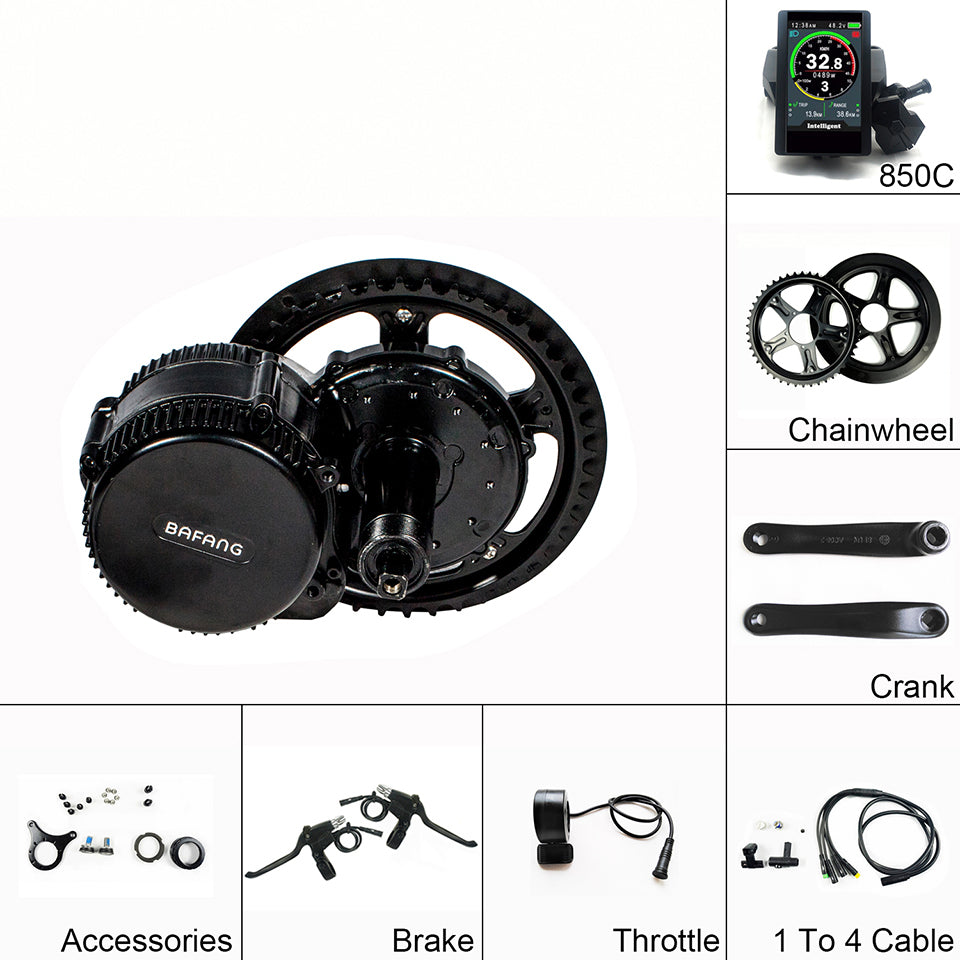

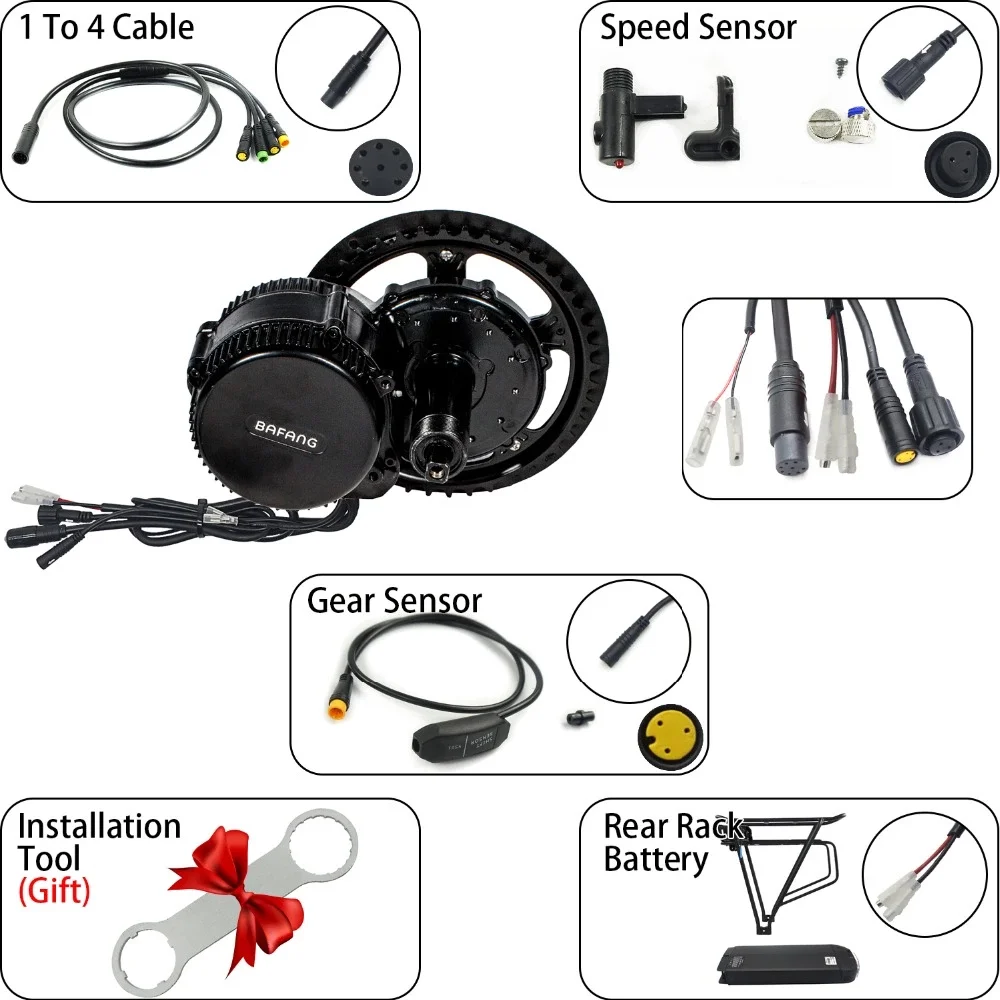

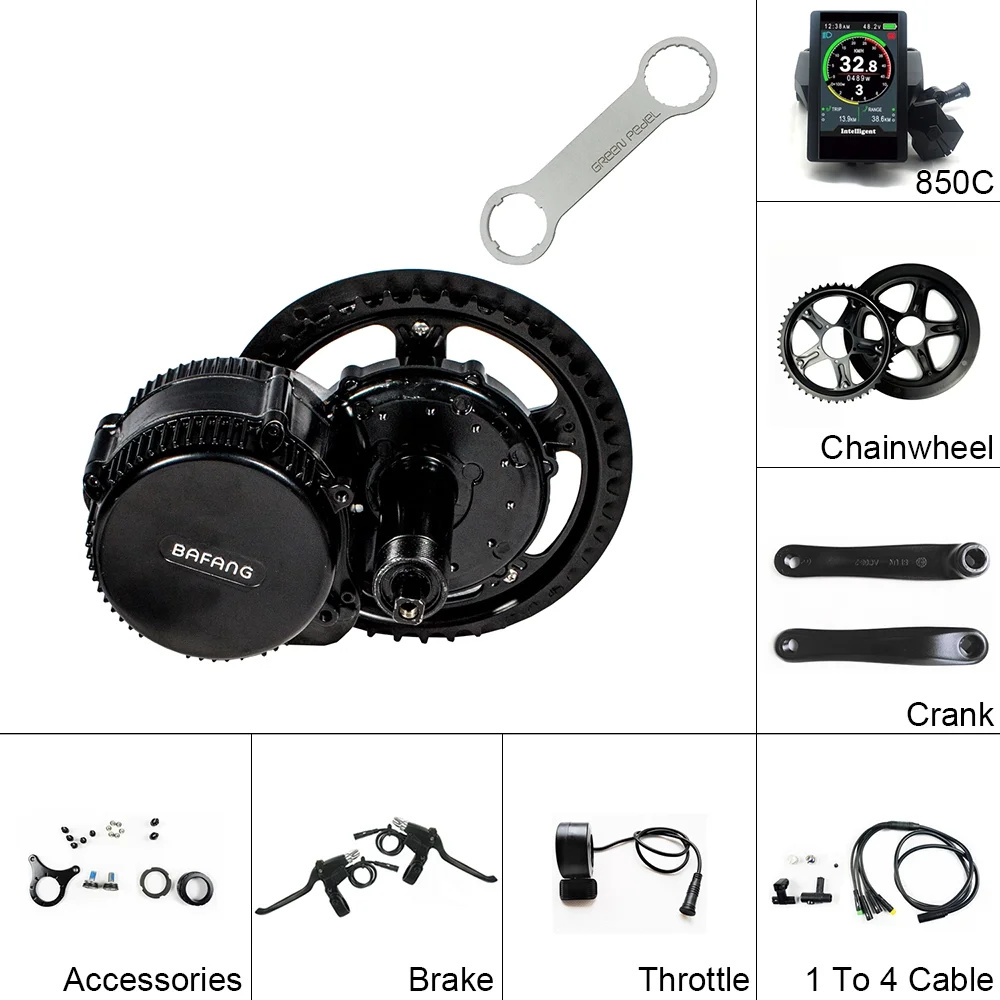

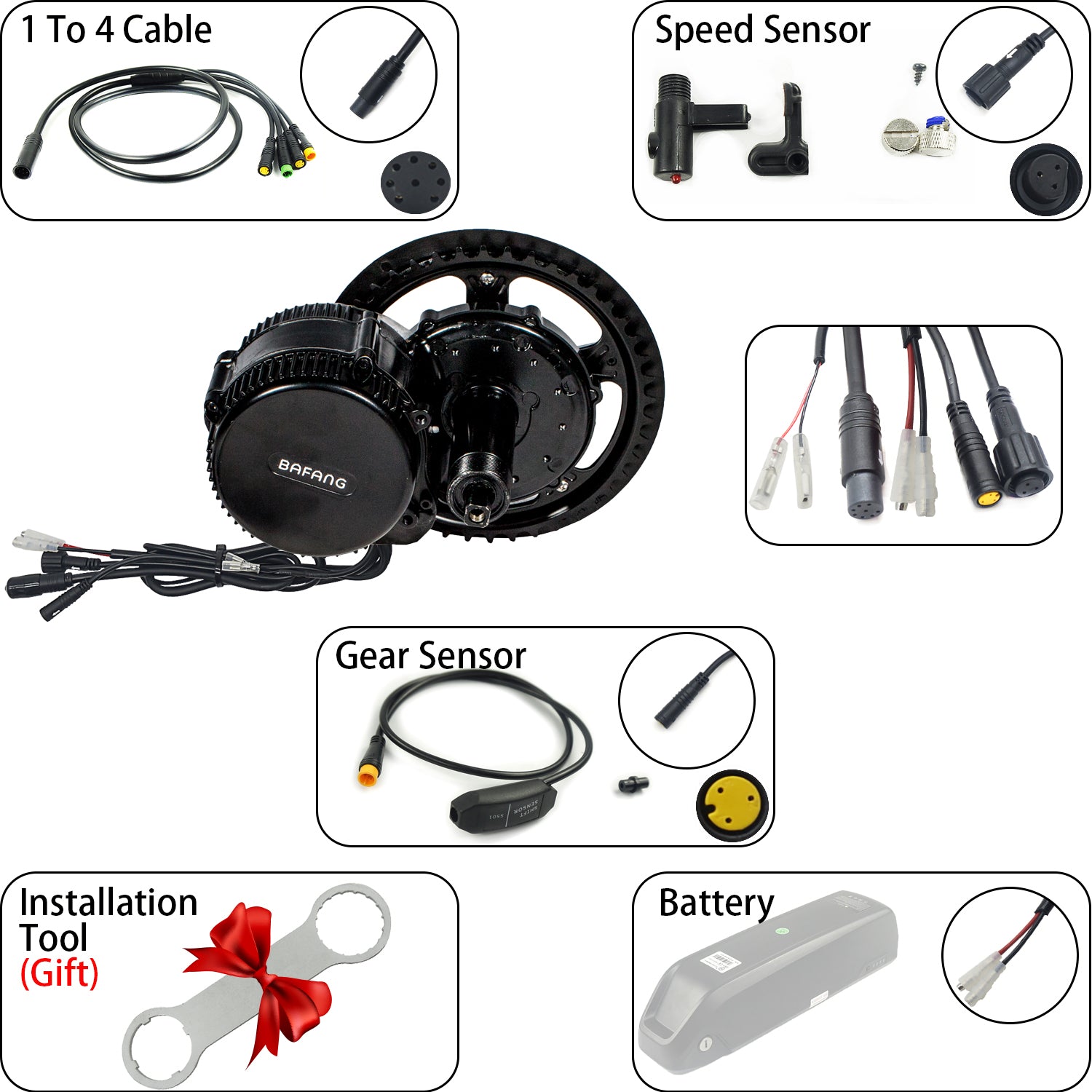

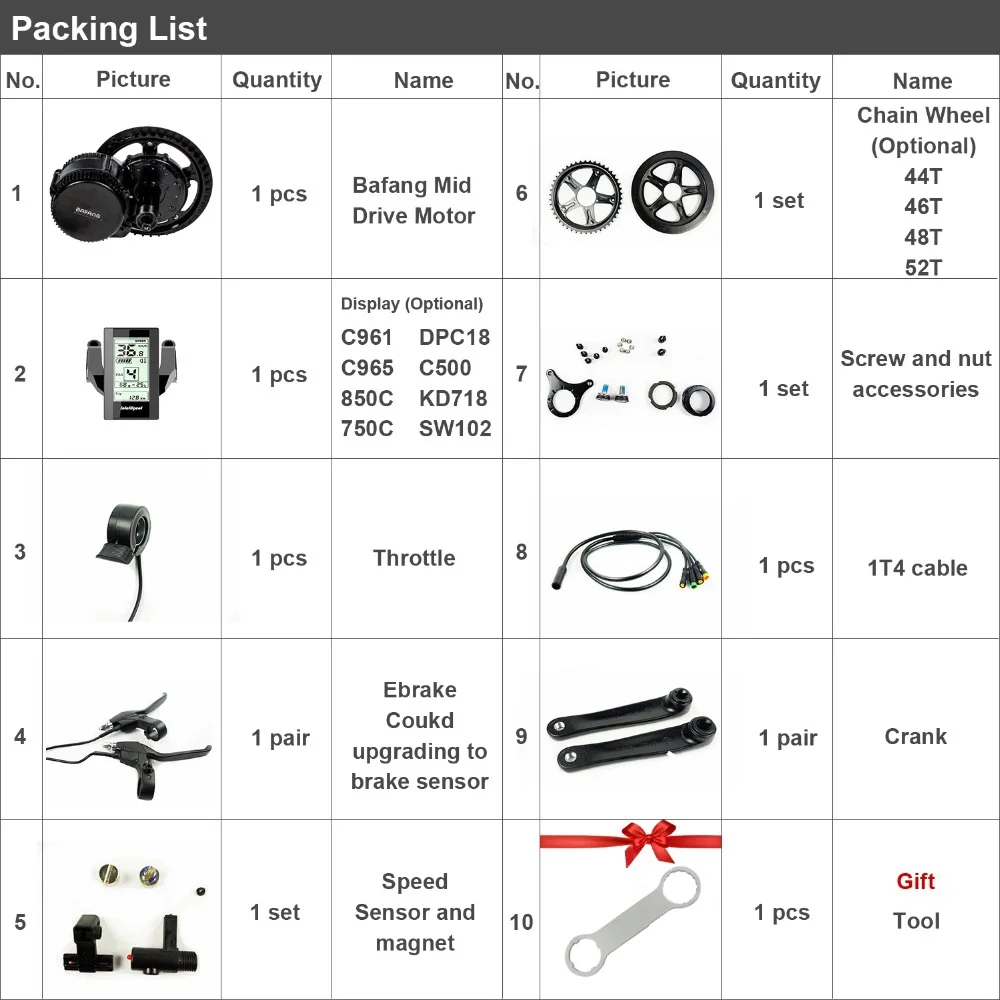

Packing list:
Bafang Mid Drive Motor * 1 pcs
Speed Detecting Sensor + Magnet * 1 set
Display * 1 (C965/850C/SW102 optional,please kindly leave us message if you need change display)
Brake Lever * 1 Pair (We can change the brake levers to Hydraulic Brake Sensor freely, leave us message)
Thumb Throttle * 1 pcs

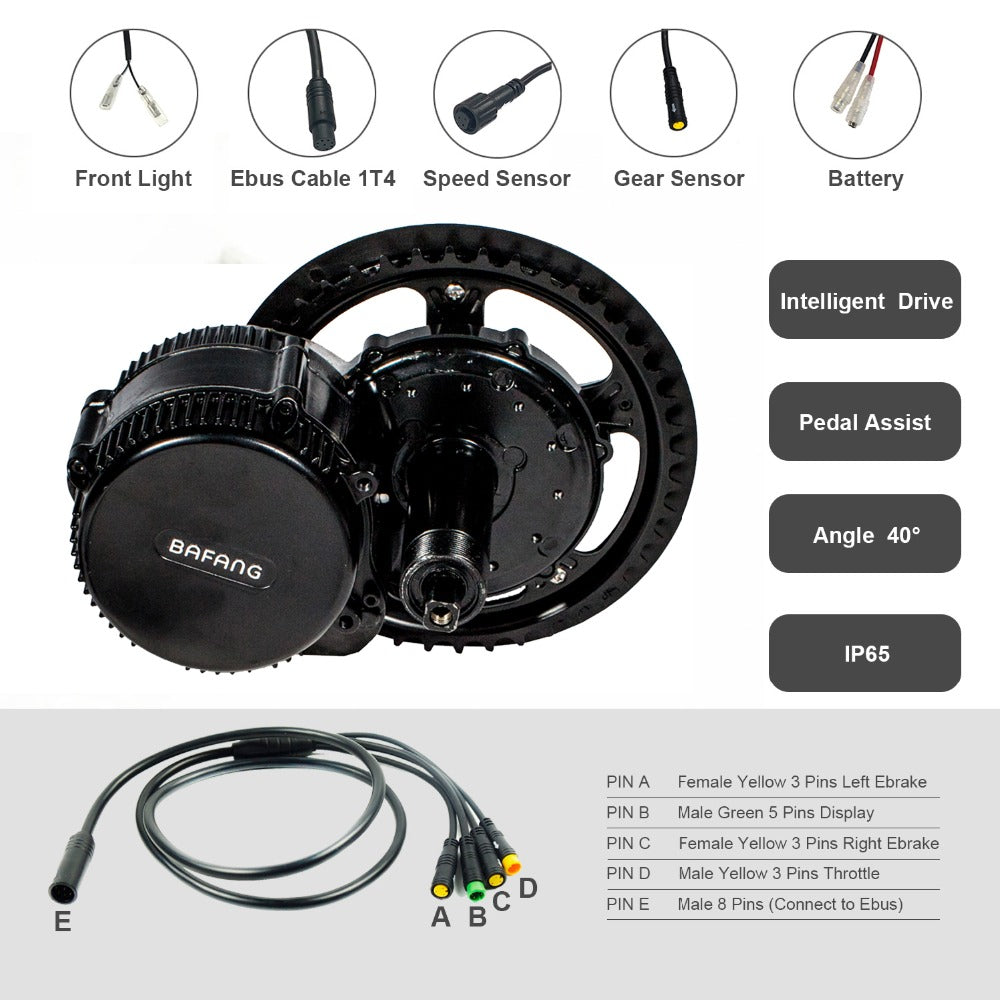

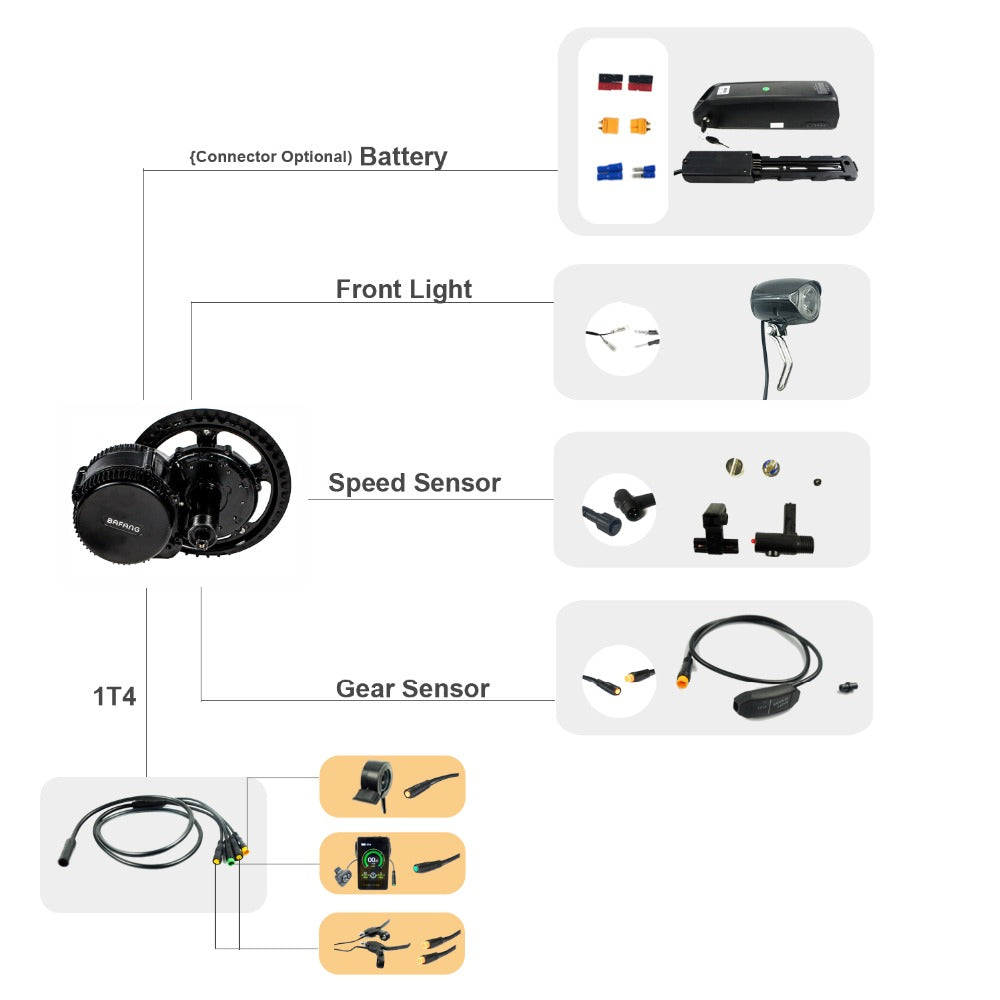

1T4 Cable *1 pcs
Crank* 1 pair
Chainwheel*1set
Screw and Nut Accessories * 1 set

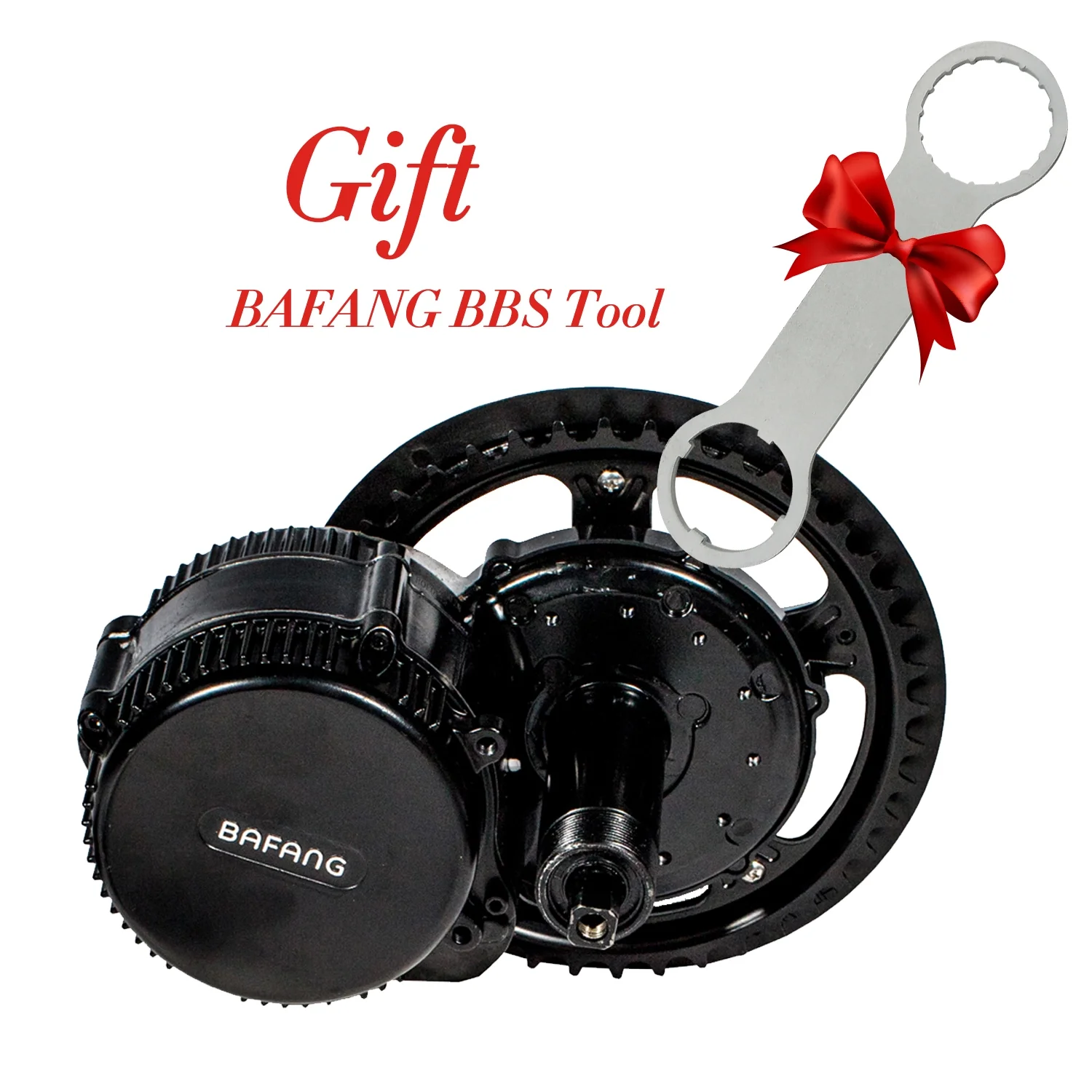

Gift Tool* 1

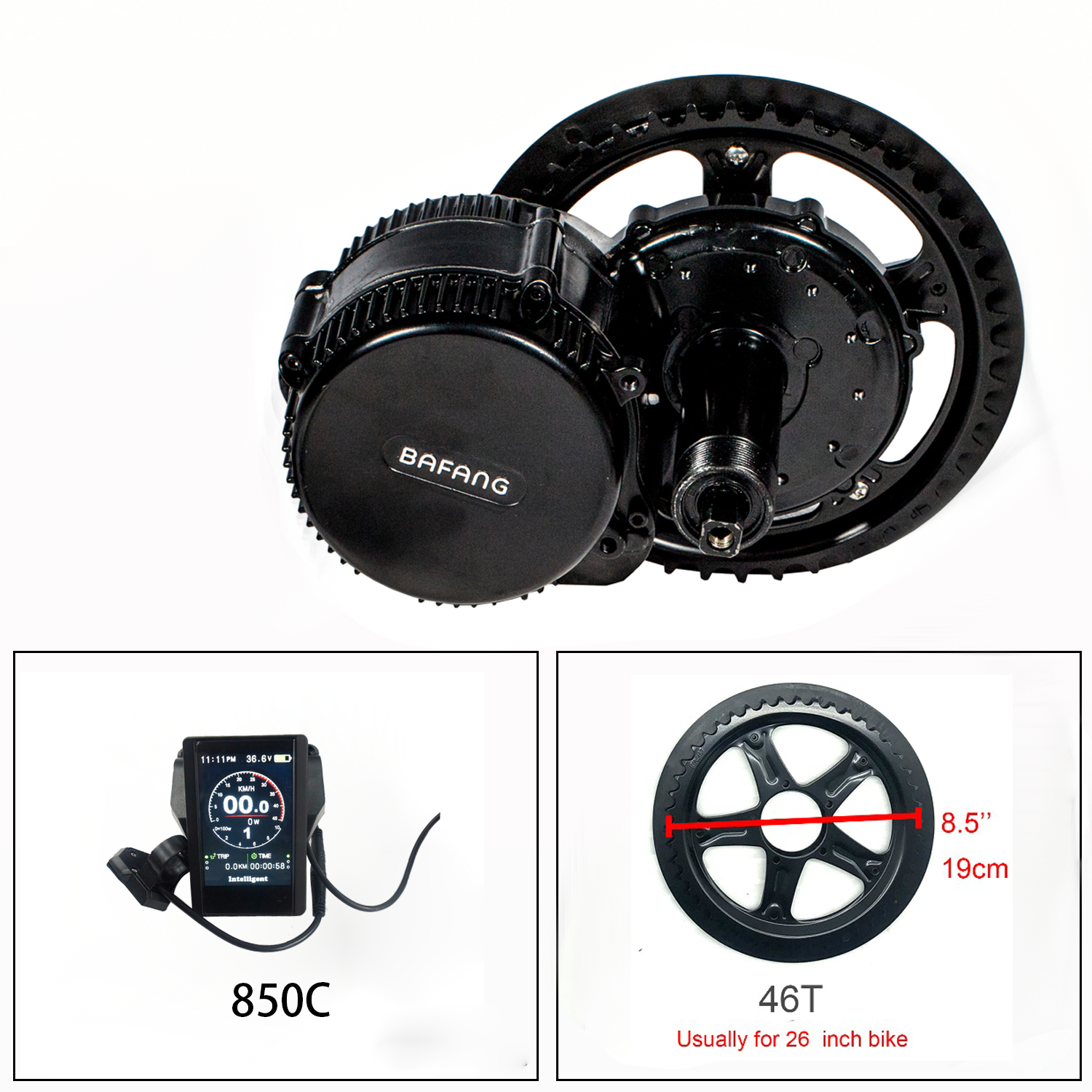

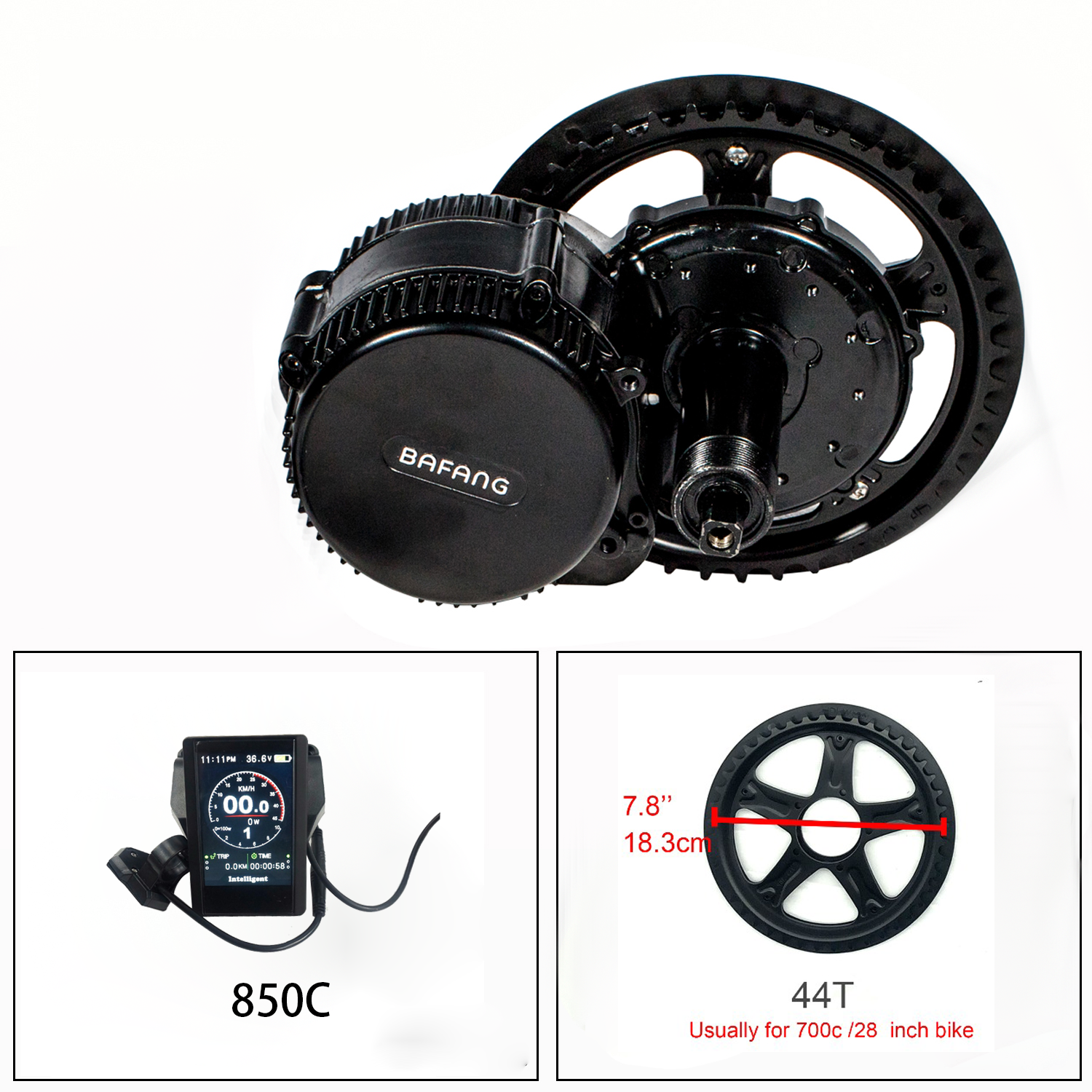

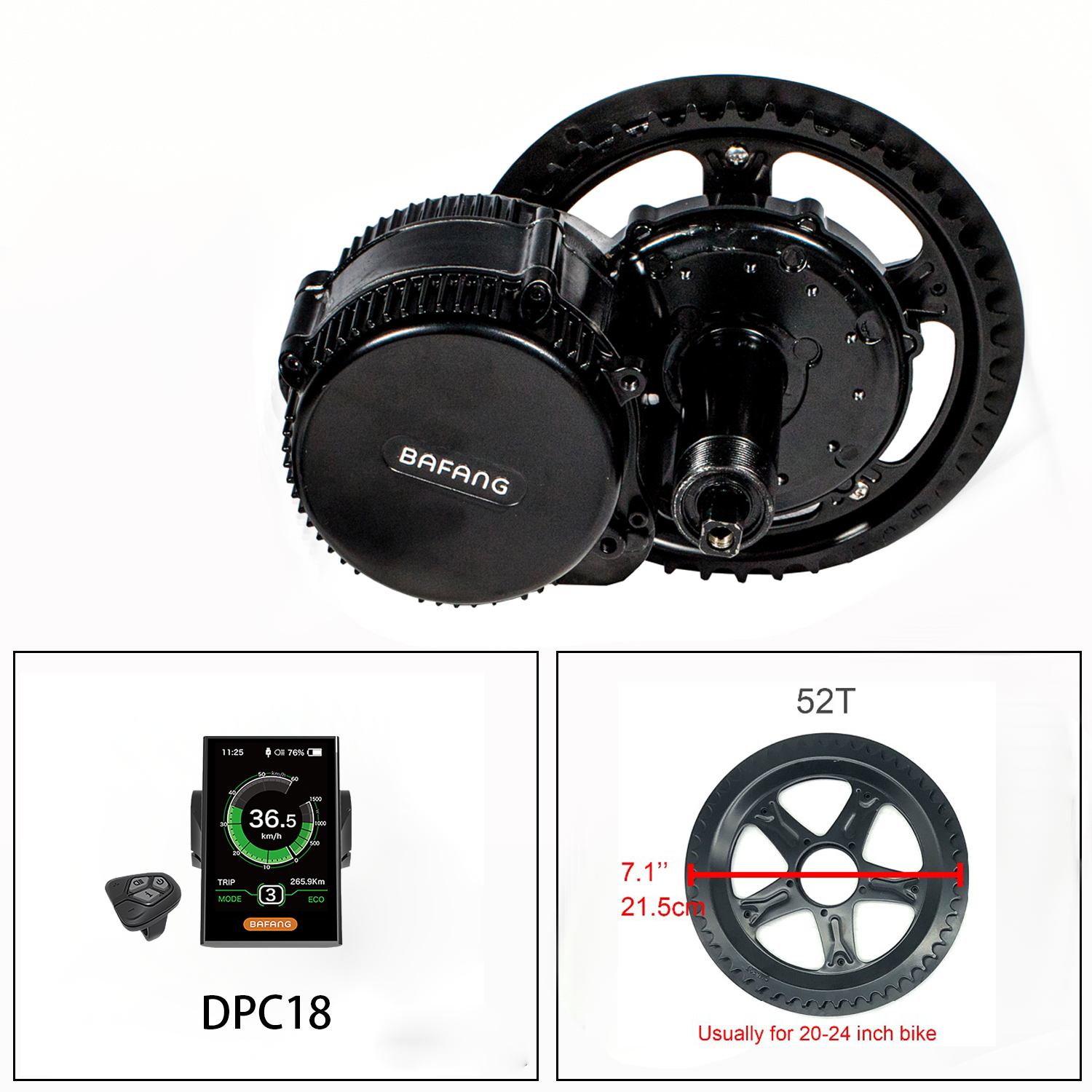

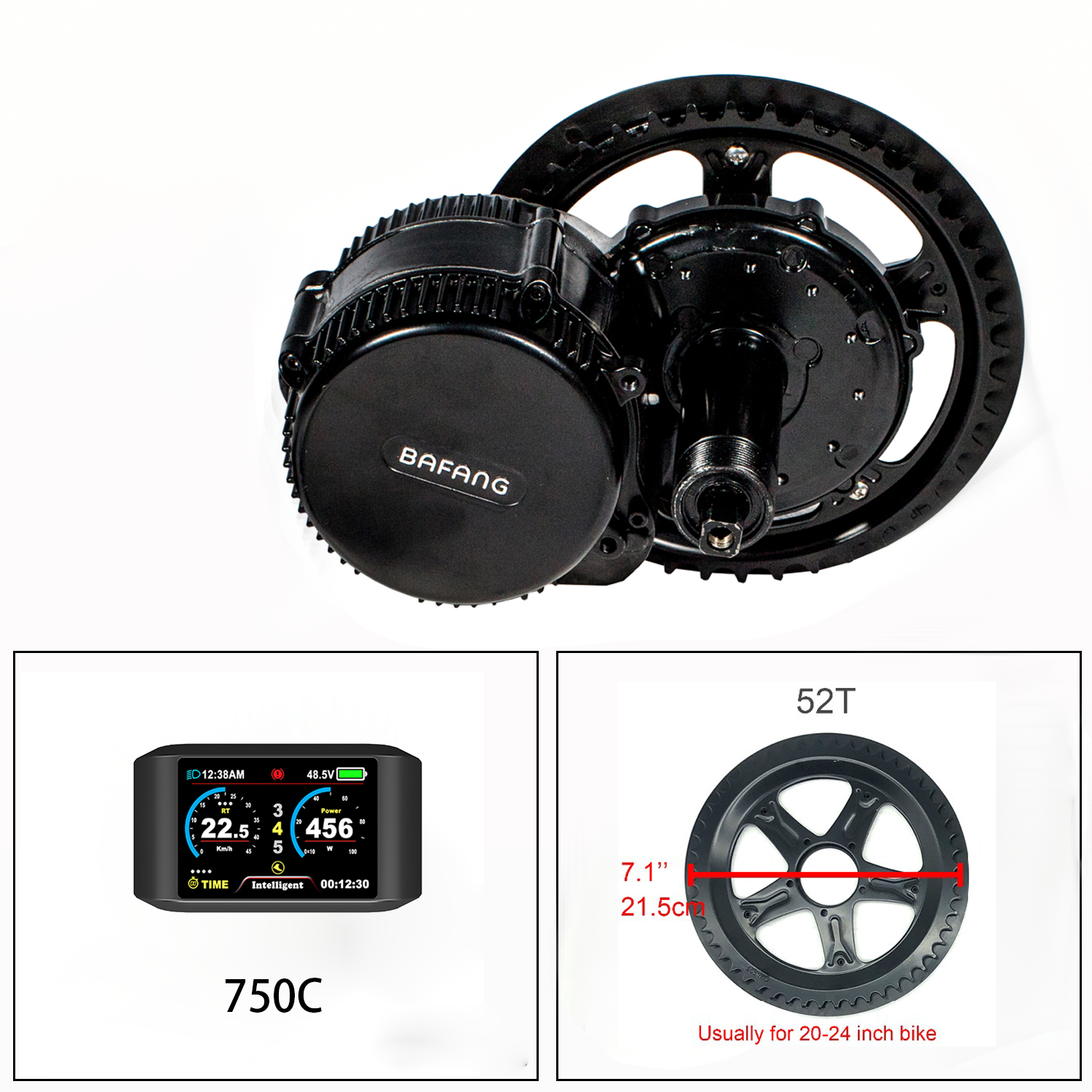

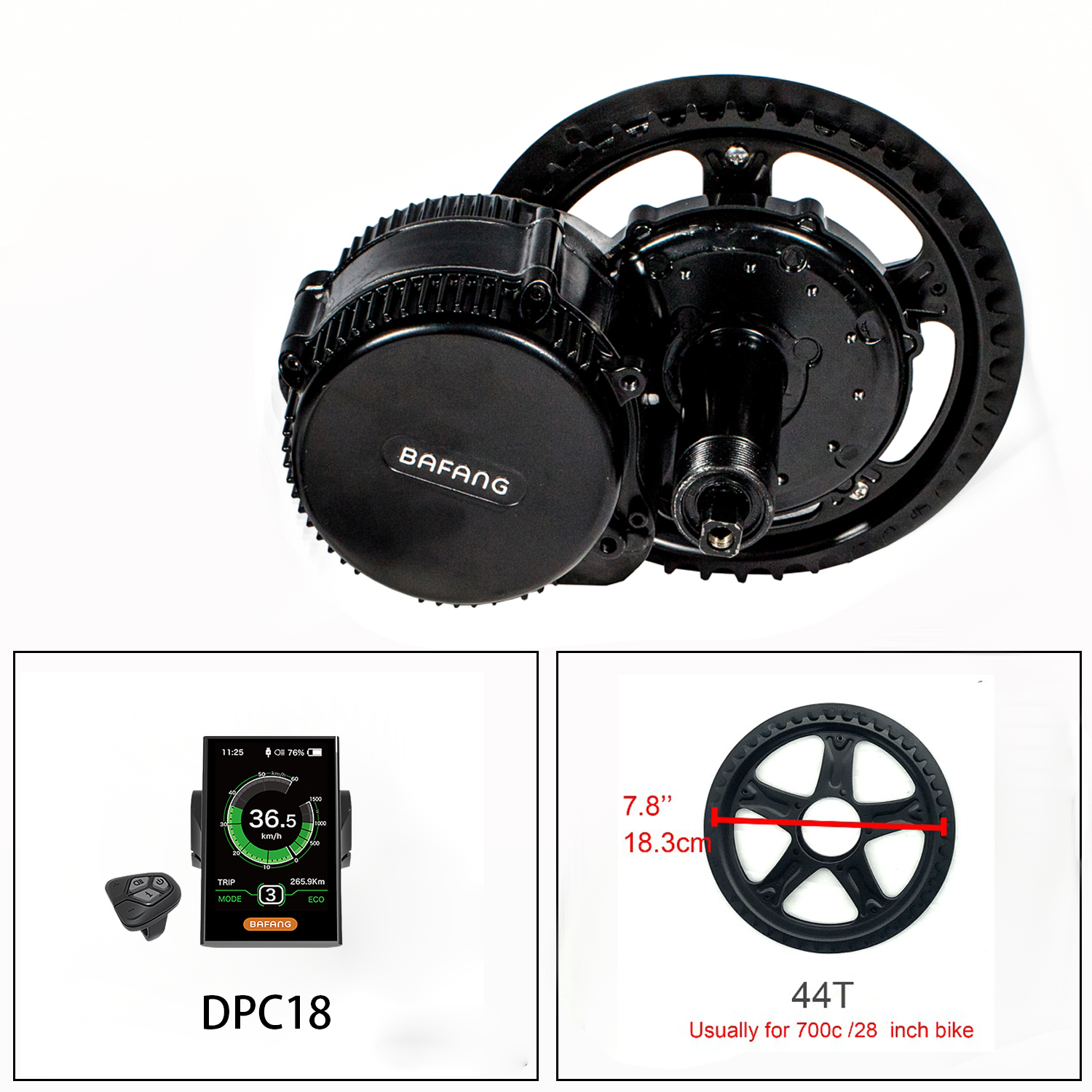

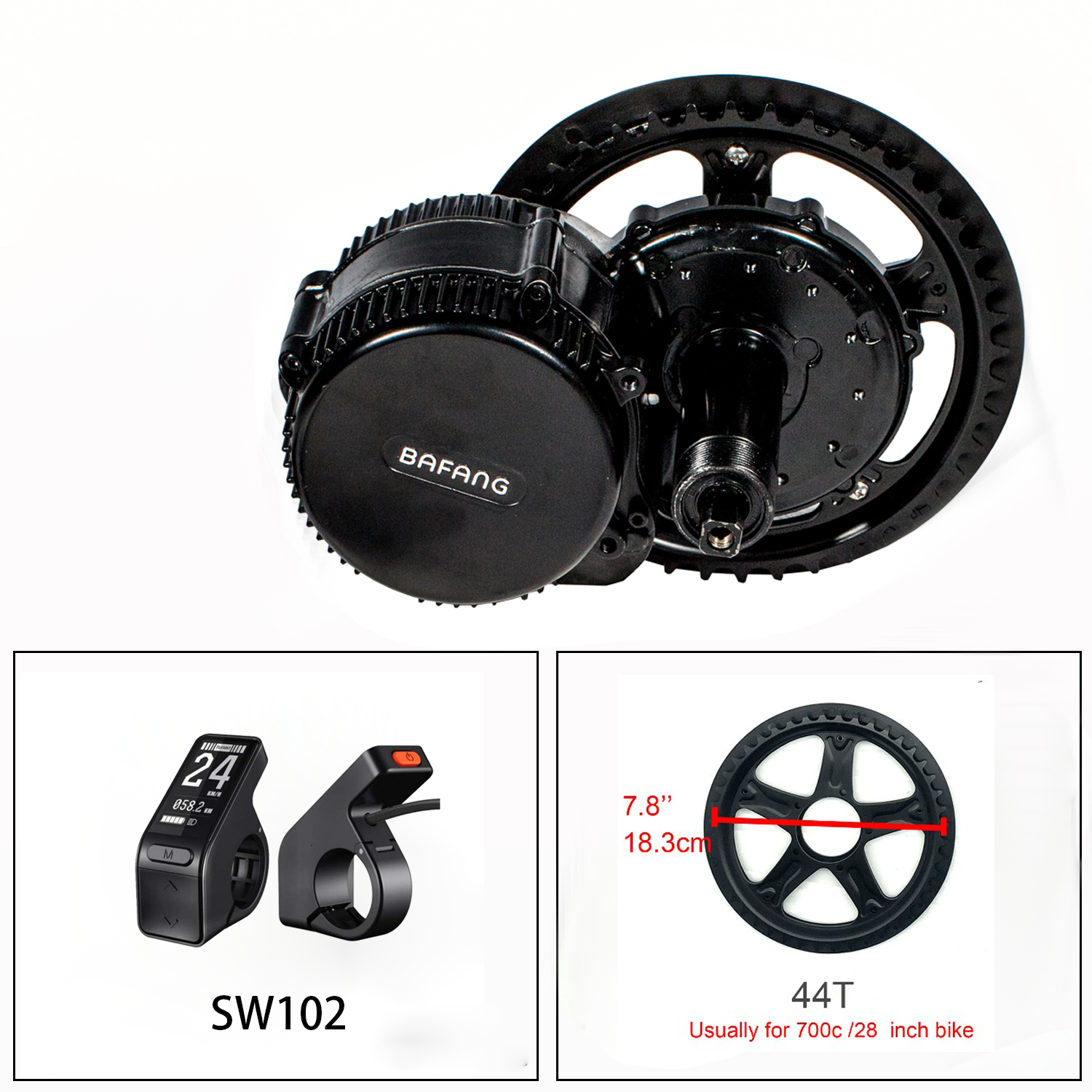

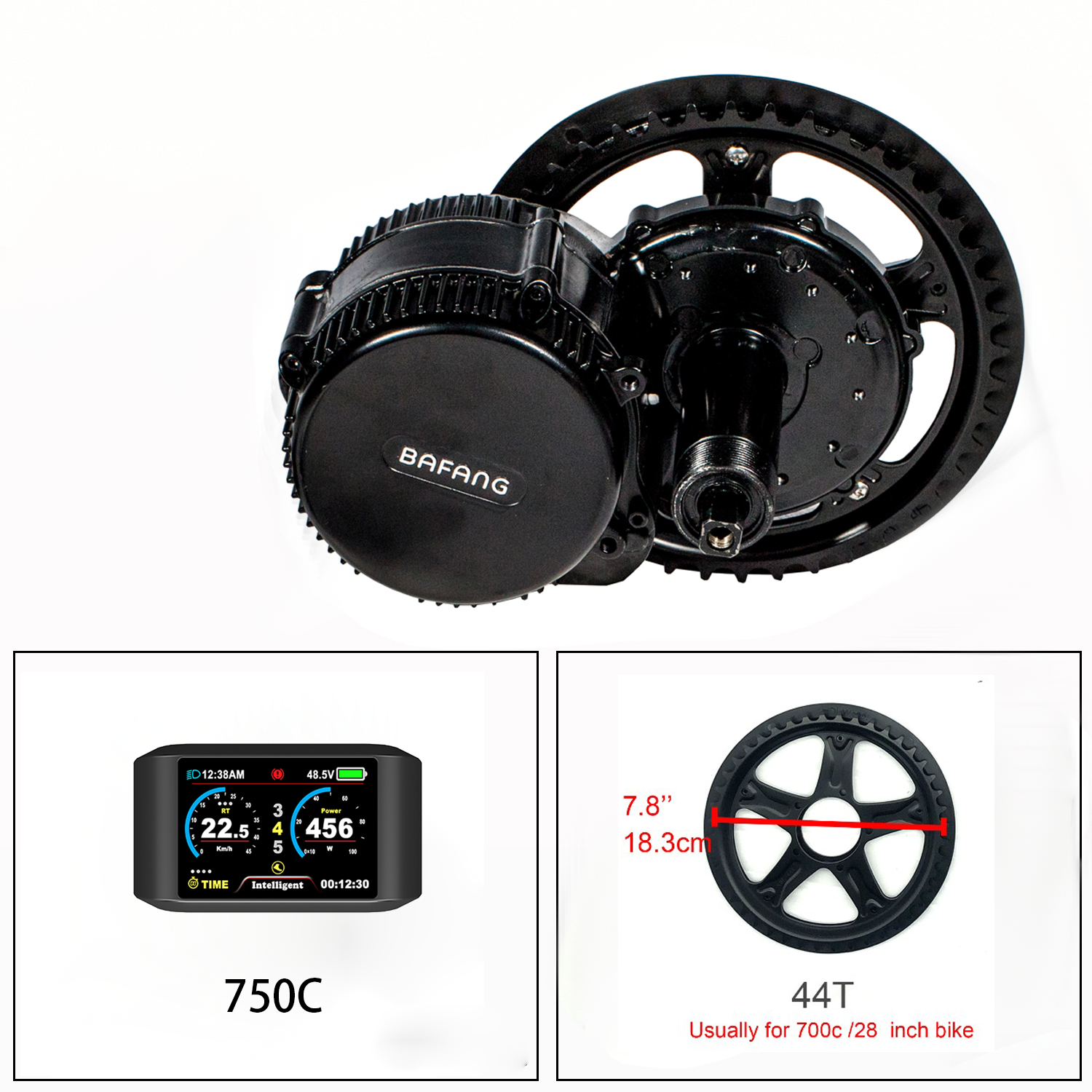

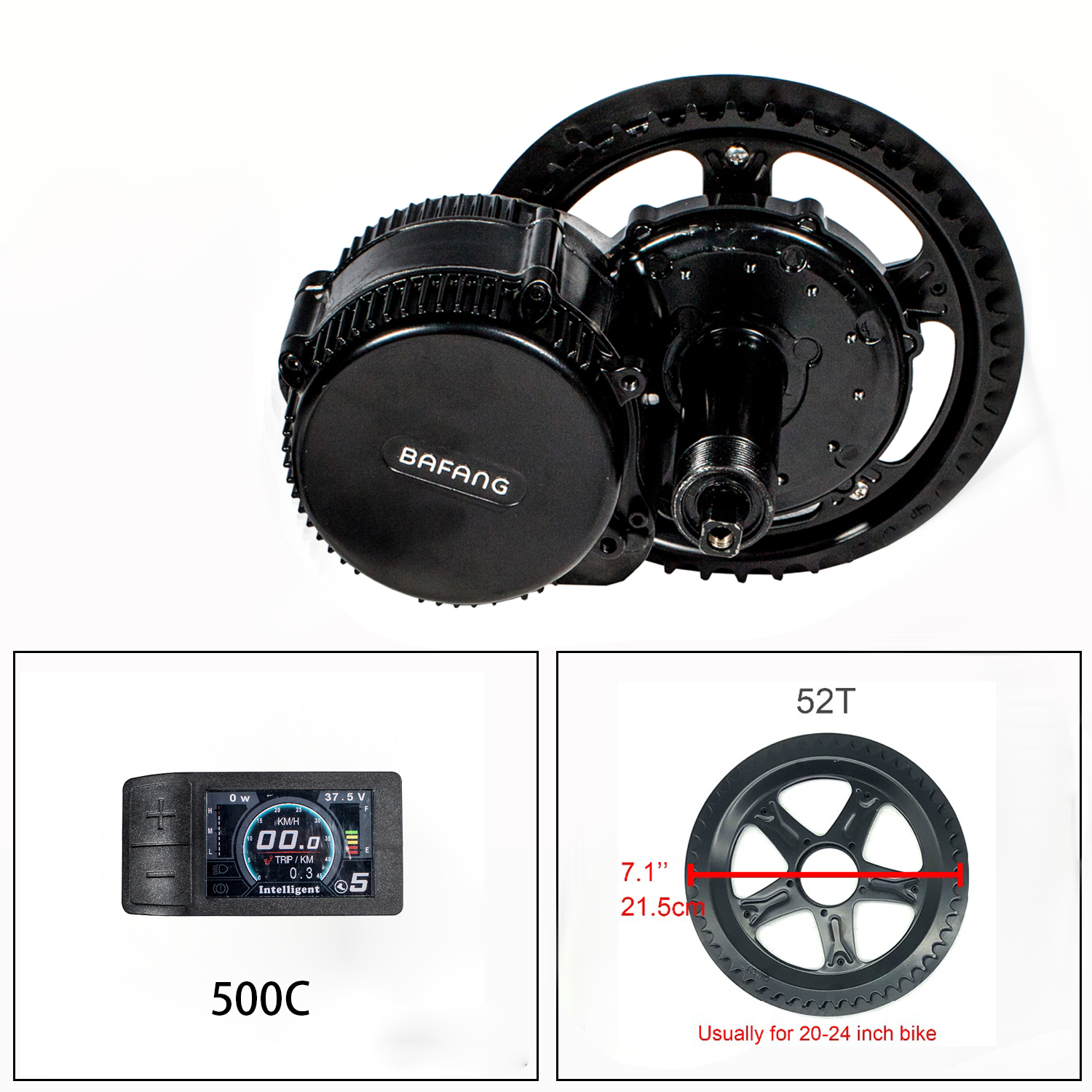

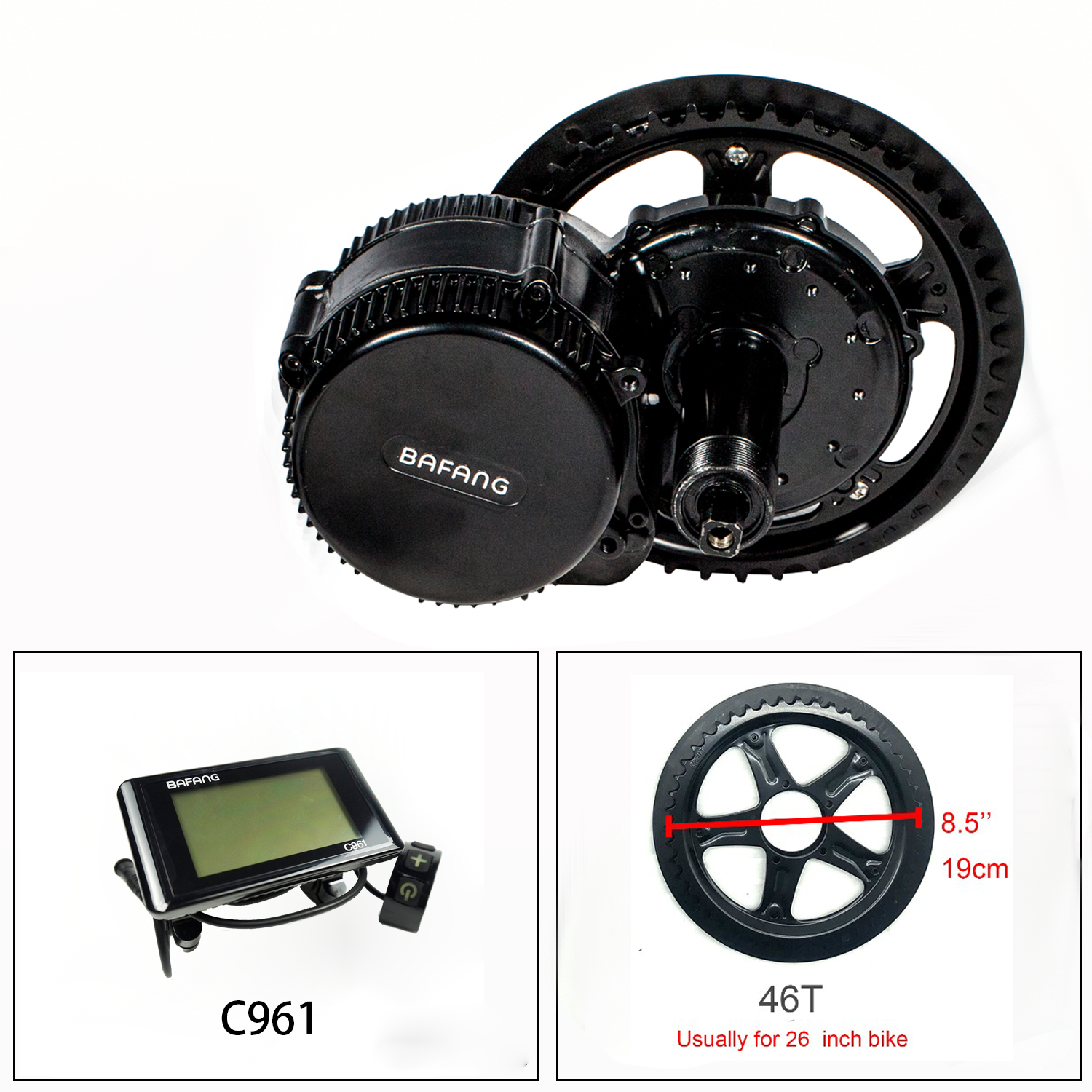

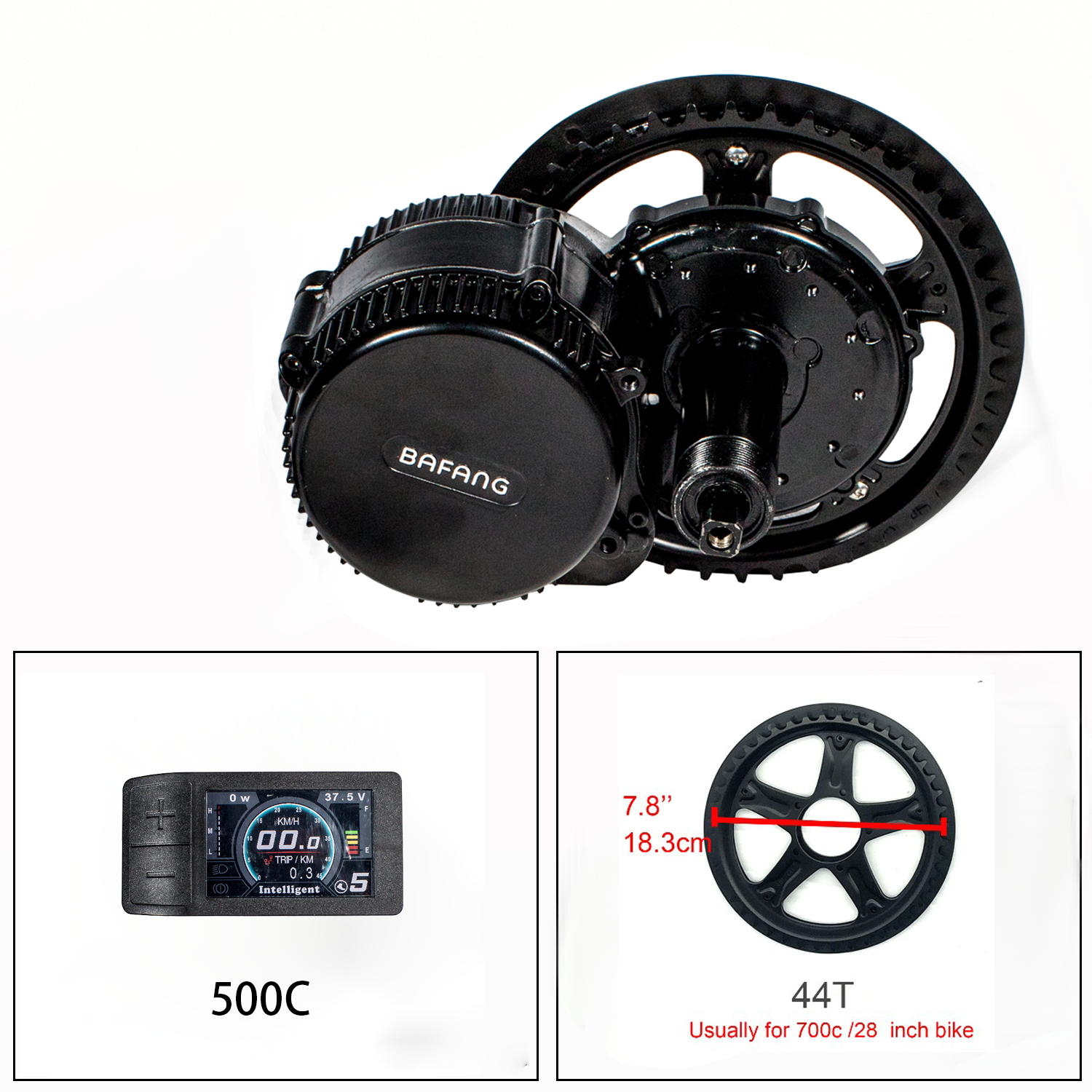

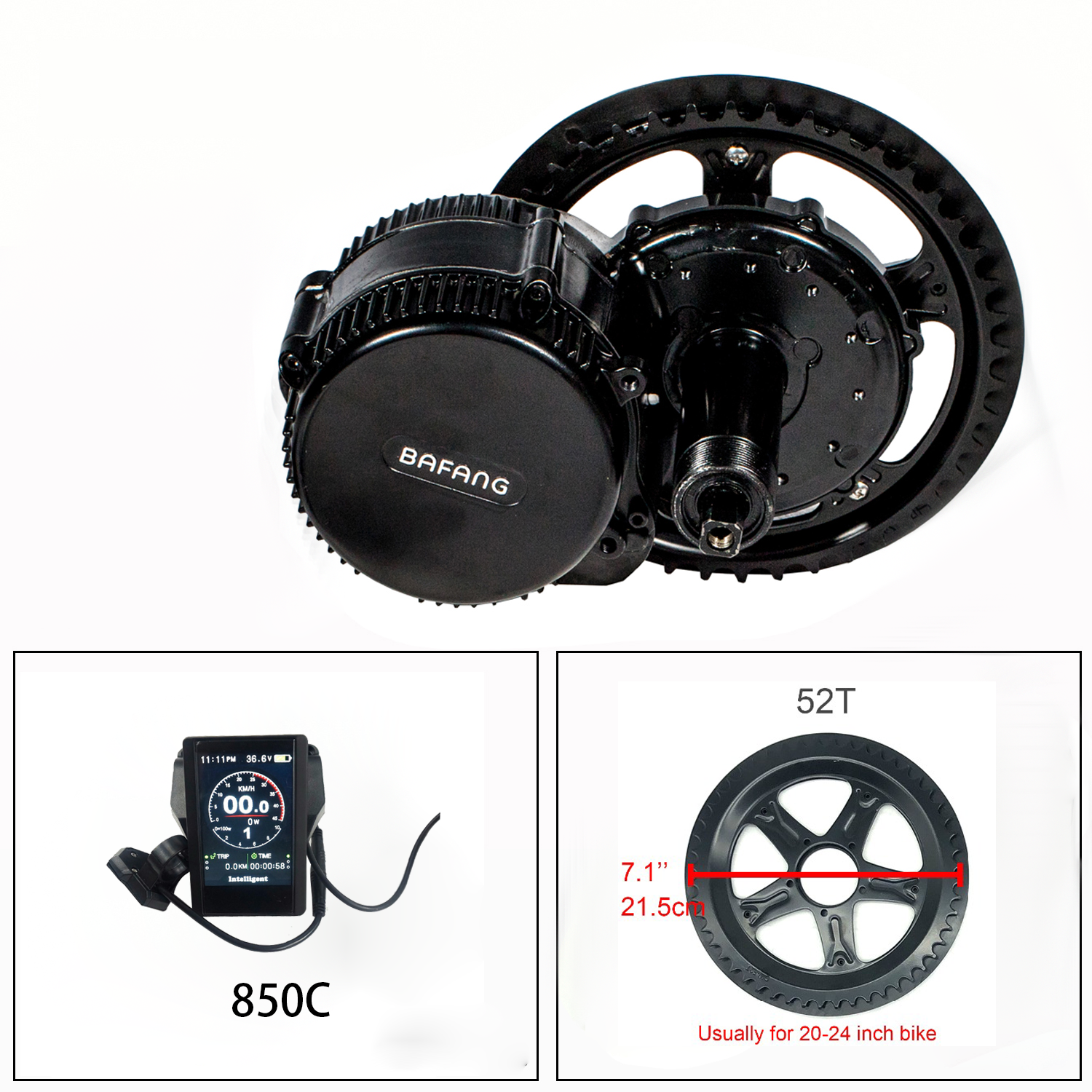

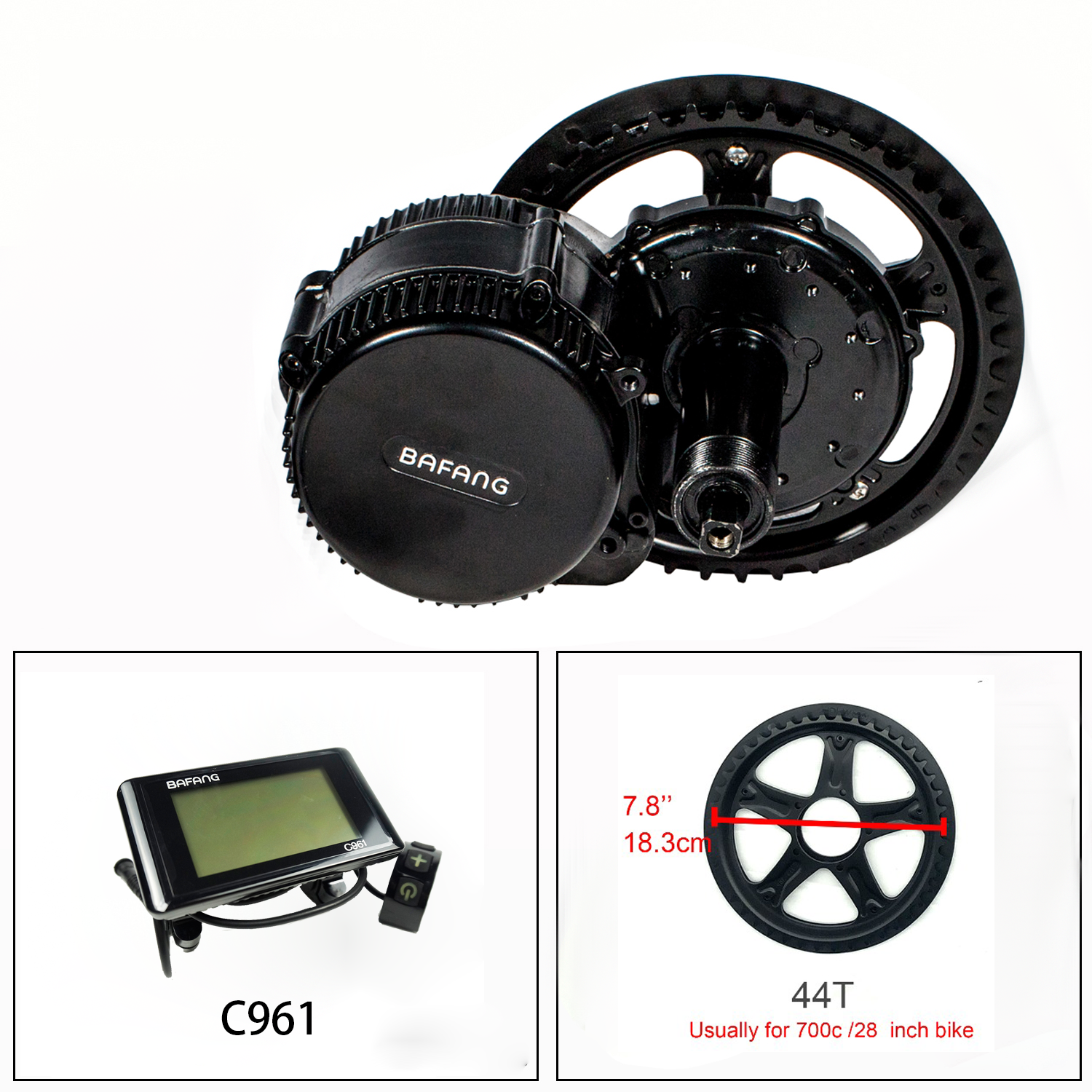

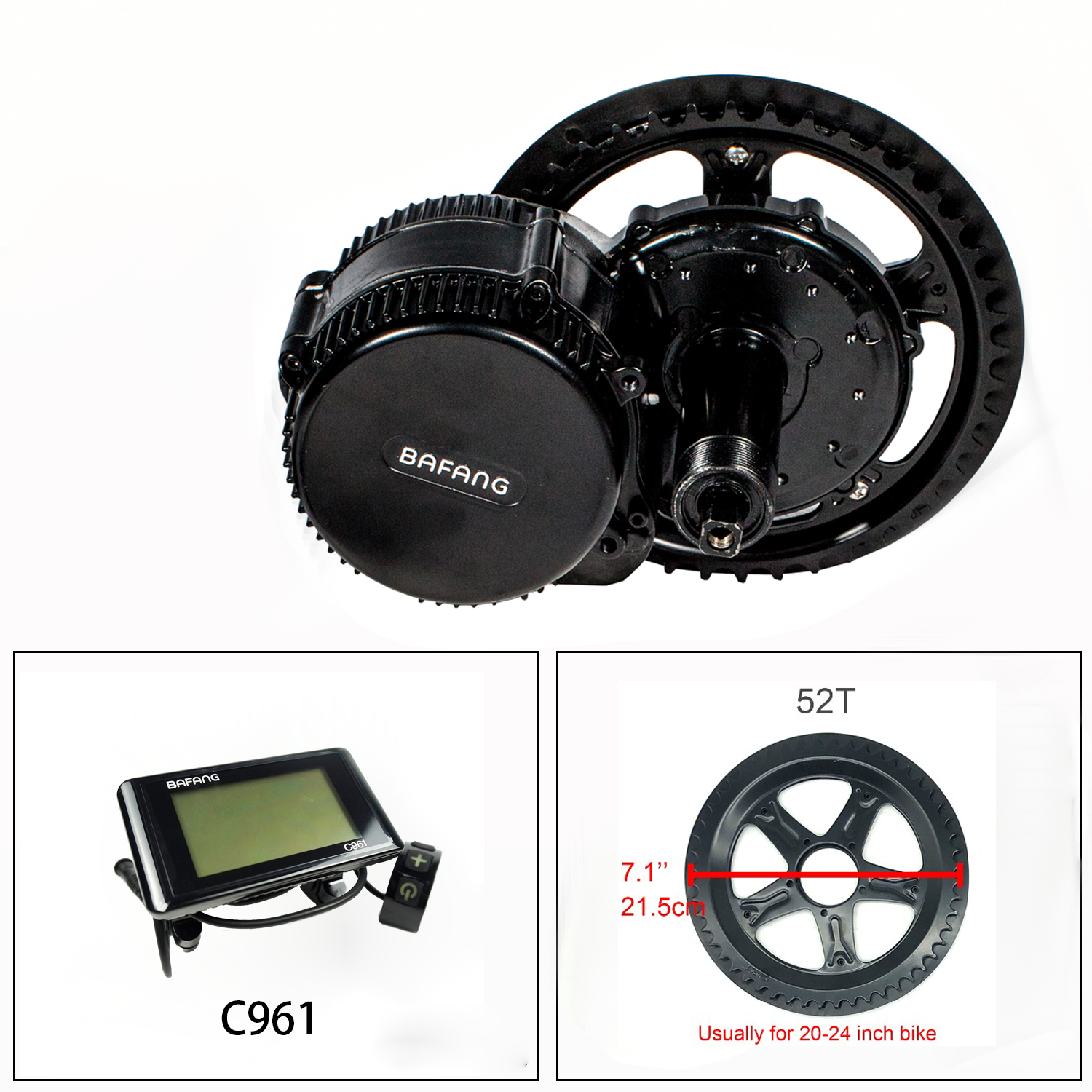

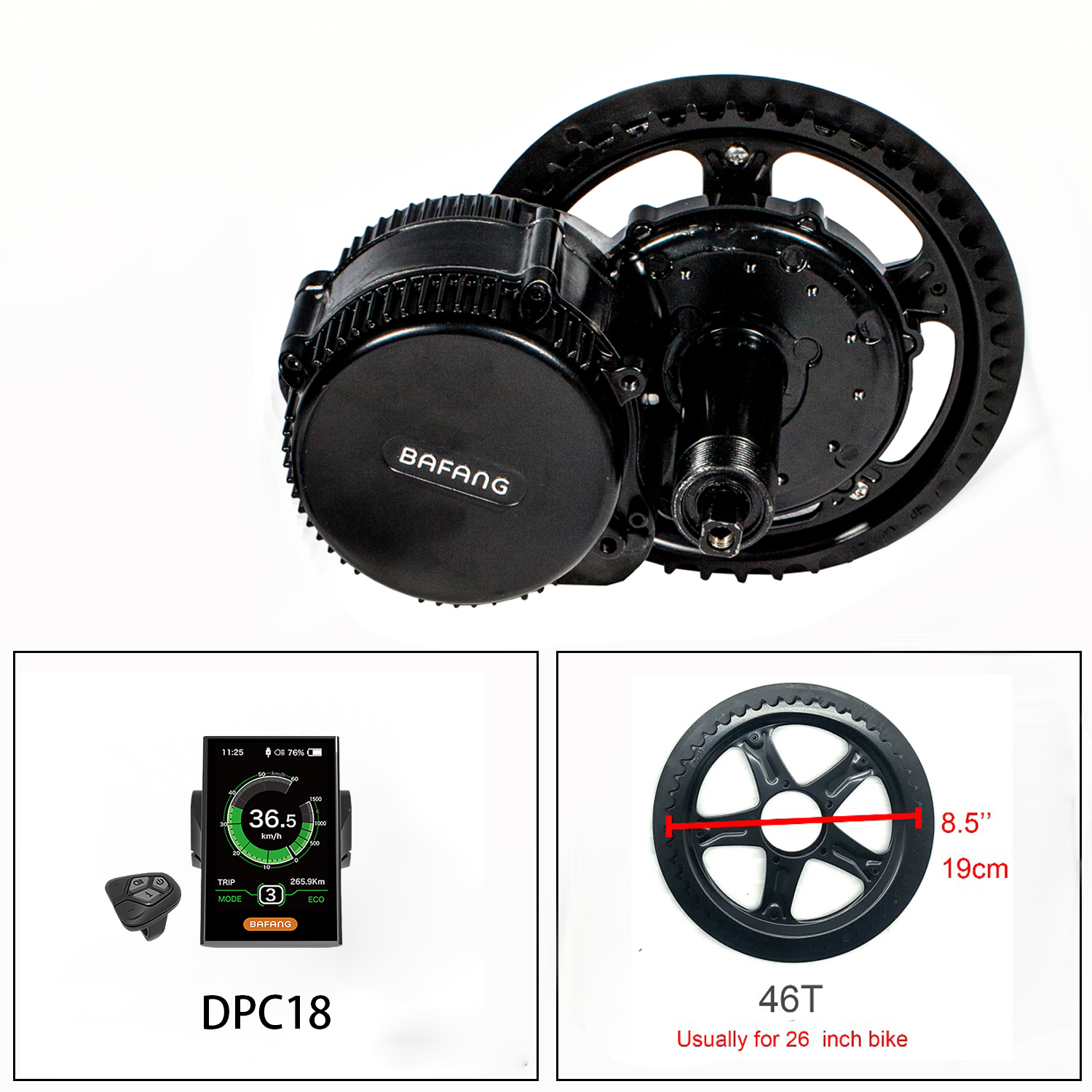

Greenpedel 8fun bafang 36v 250 watt middle drive motor bbs01b elertric bike motor kit
Greenpedel 8fun bafang 36v 250 watt middle drive motor bbs01b elertric bike motor kit
Regular price
£3,127.42 GBP
Regular price
£0.00 GBP
Sale price
£3,127.42 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
Greenpedel Service Advantages:
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor.Please leave a message when you place the order.

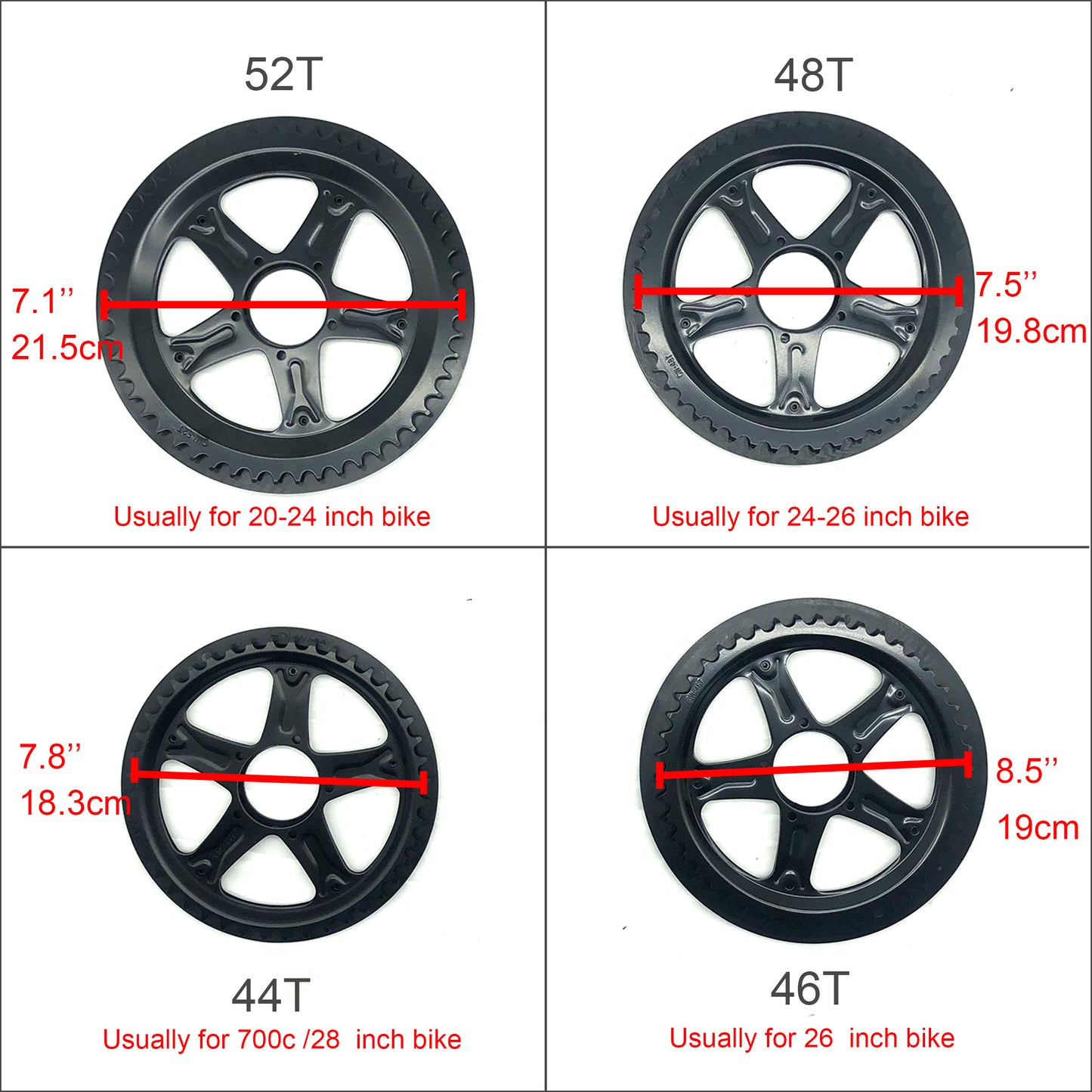

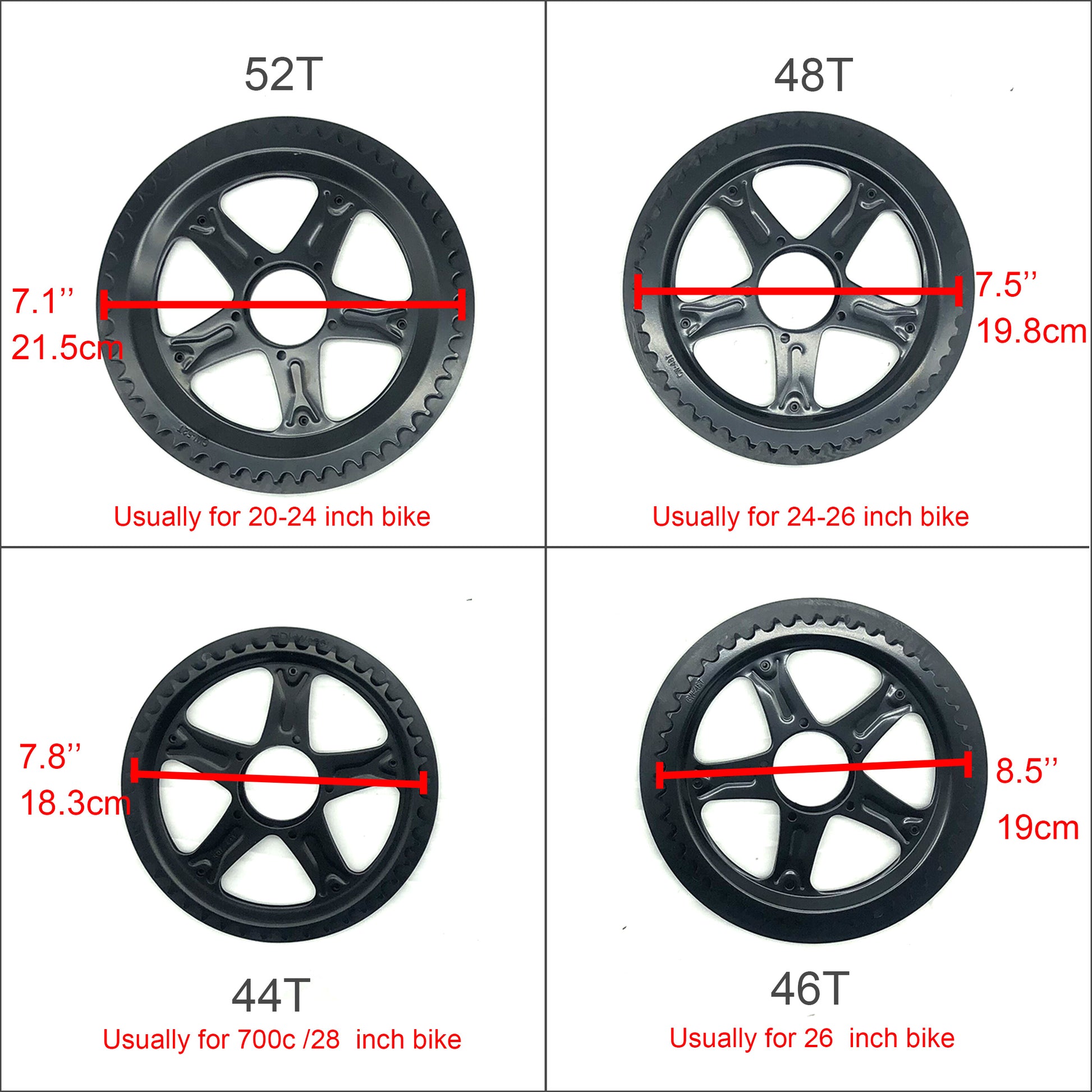

2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.

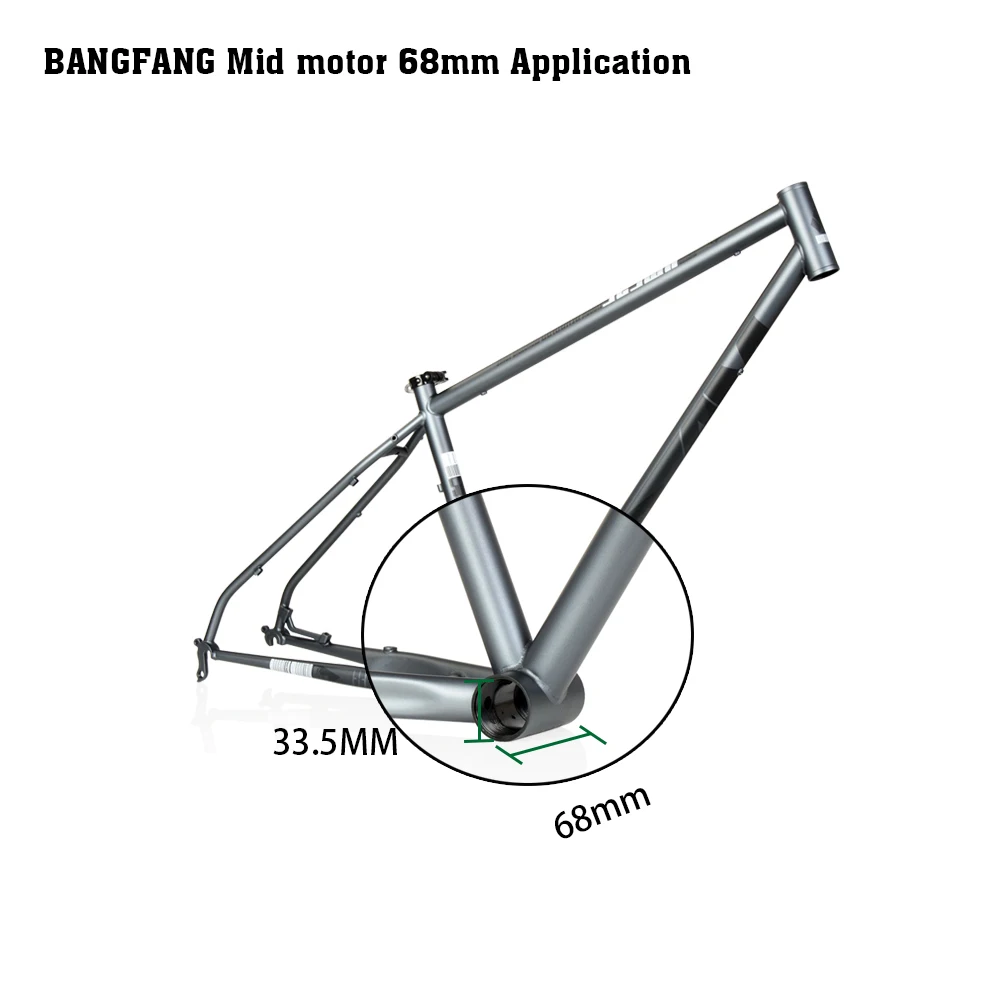

5.This is for 68mm bottom branket.(JIS) If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
2.We supply 44T 46T 48T 52T chainwheel.If you need replace.Please also leave a message.Thanks.
3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60.Please also leave a message.Thanks.
4.If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
5.This is for 68mm bottom branket.(JIS) If your bottom branket is 73mm.Please contact us.
6.This kit is not for Carbon fiber bicycle.
Details Images
|
Rated Voltage (DCV)
|
36V
|
|
Rated Power (W)
|
250W
|
|
Max Torque
|
80N.m
|
|
Integrated Controller Current
|
15A
|
|
Construction
|
Gear drive
|
|
Efficiency (%)
|
≥ 80 %
|
|
Certifications
|
CE / EN14764 / ROHS
|
|
Type
|
Pedal Sensor Speed
|
|
Operating Temperature
|
-20-45℃
|
|
axle size
|
68mm
|
|

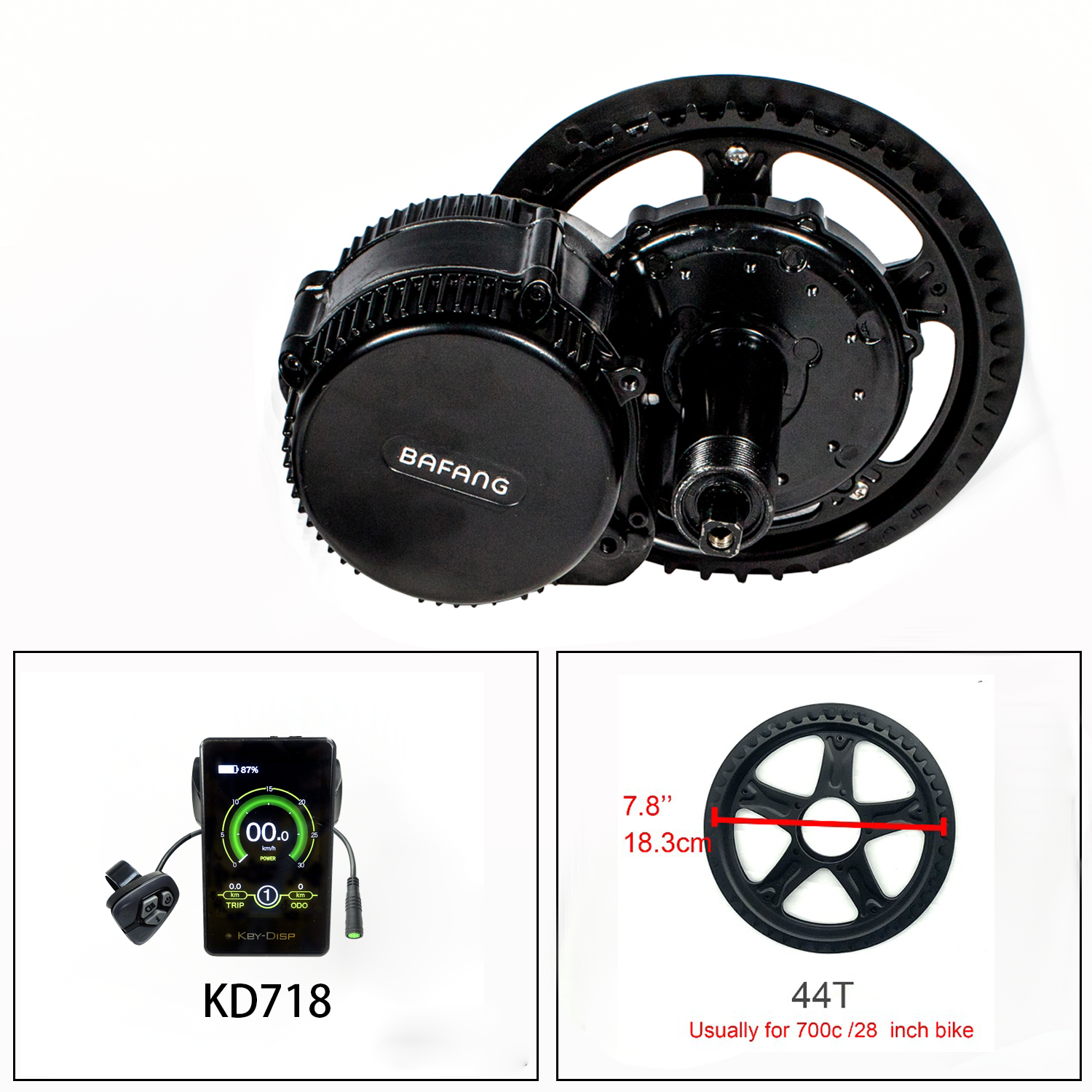

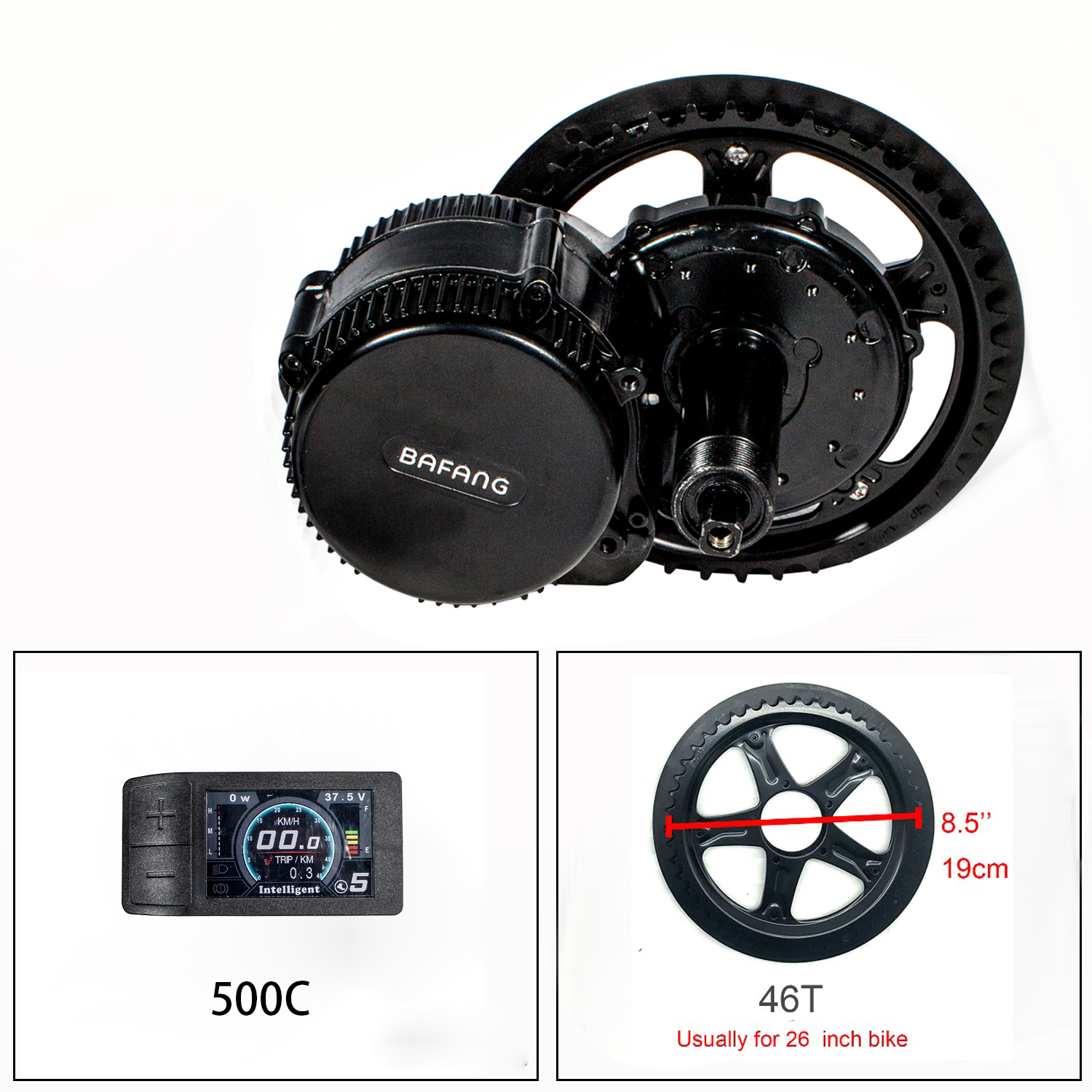

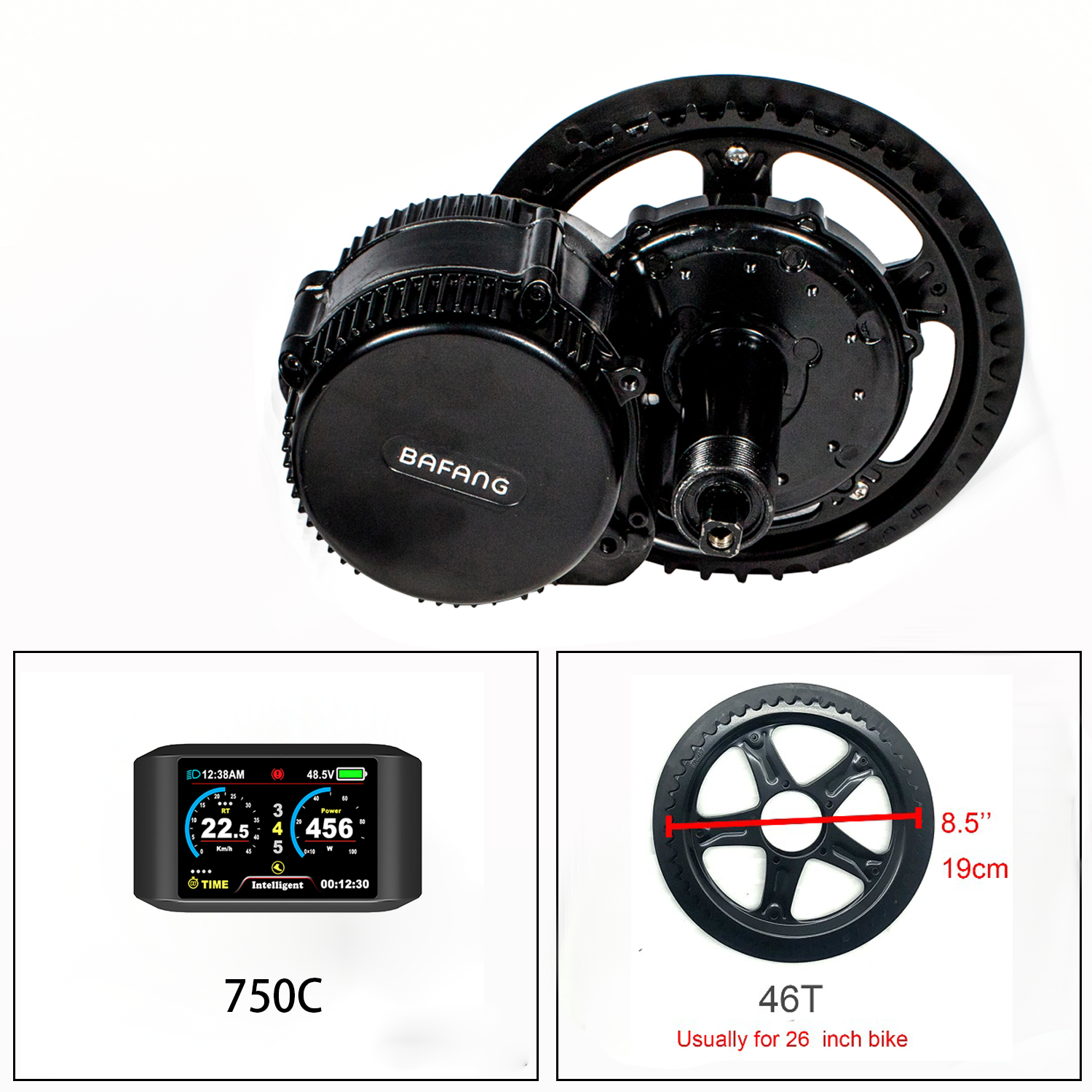

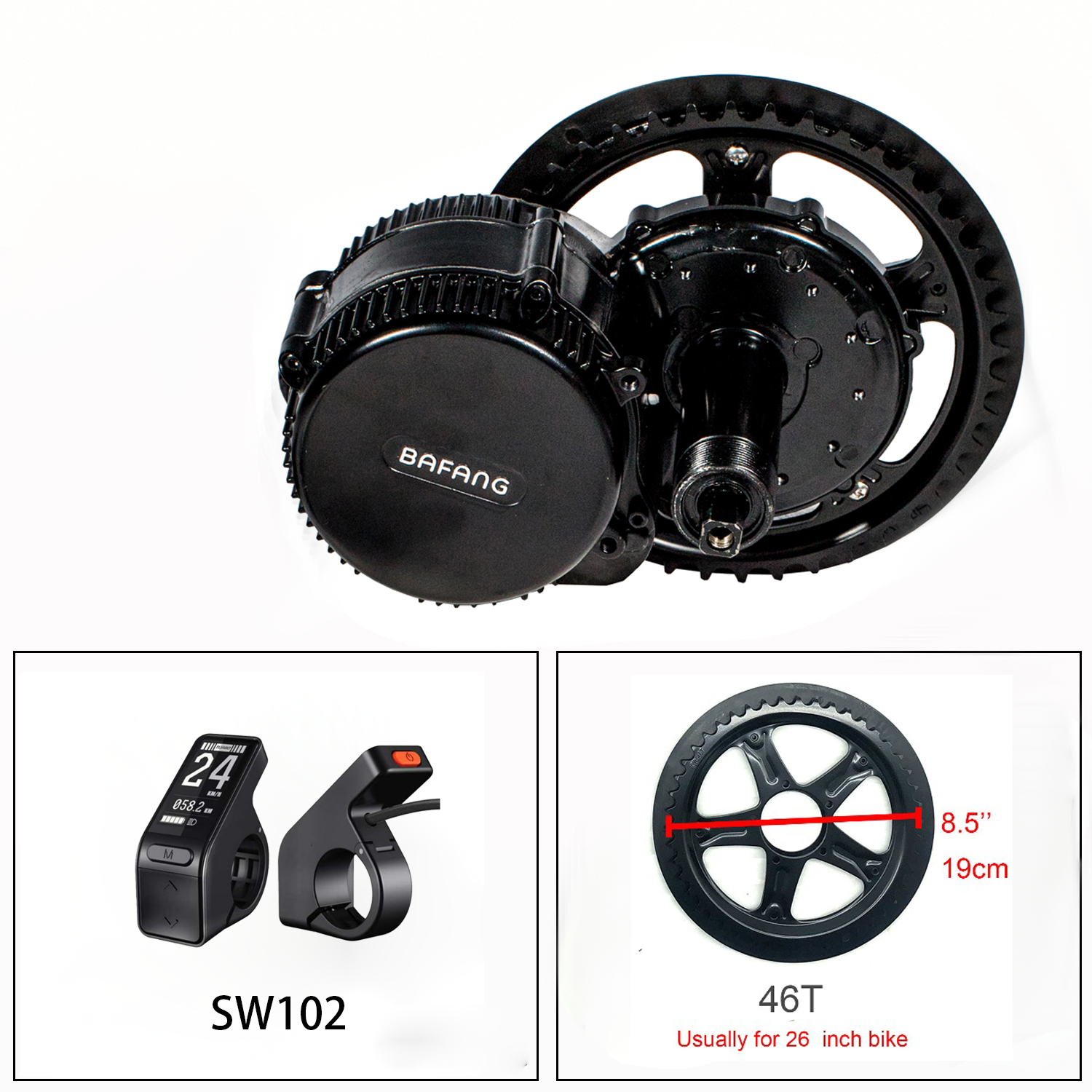

chain wheel
|
42T 44T 46T 48T 52T for option
|
|

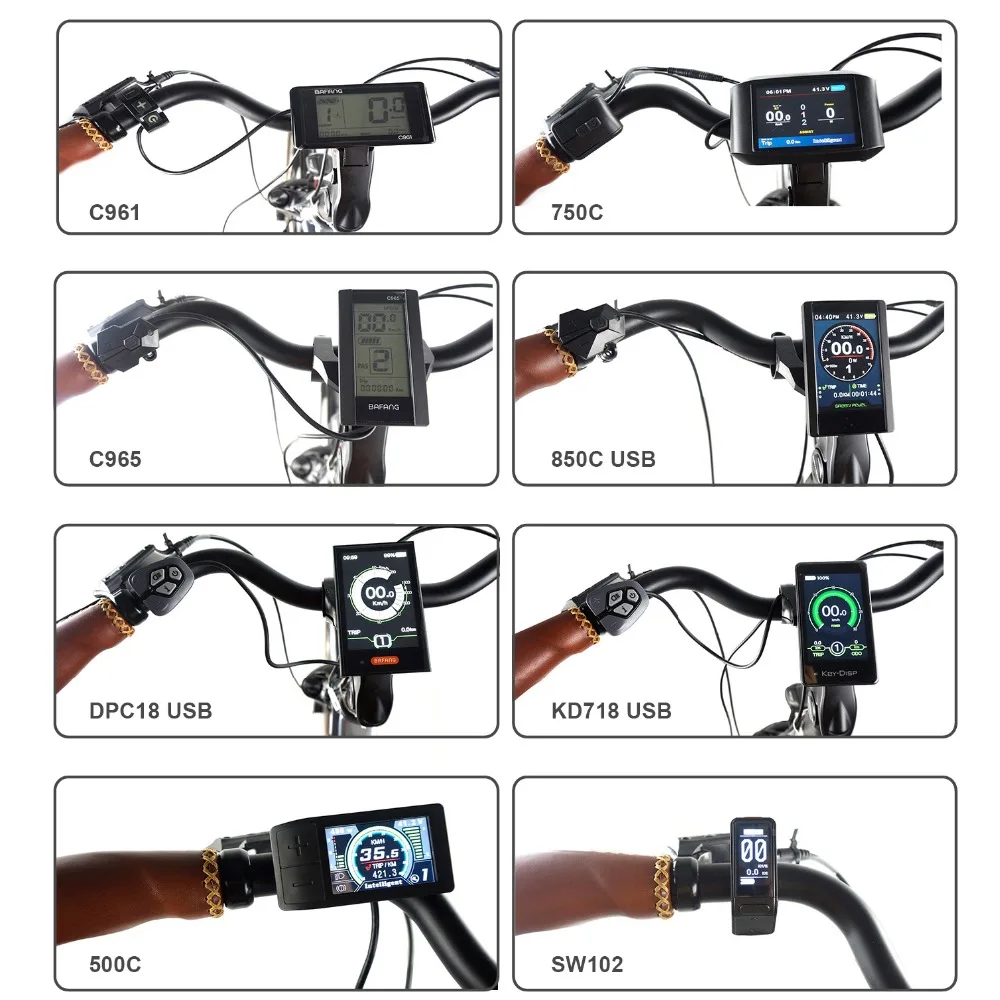

Display
|
C965/C961/ 750C/850C/DPC-18/718 for option
|
|
Gross weight(kg)
|
7
|
|

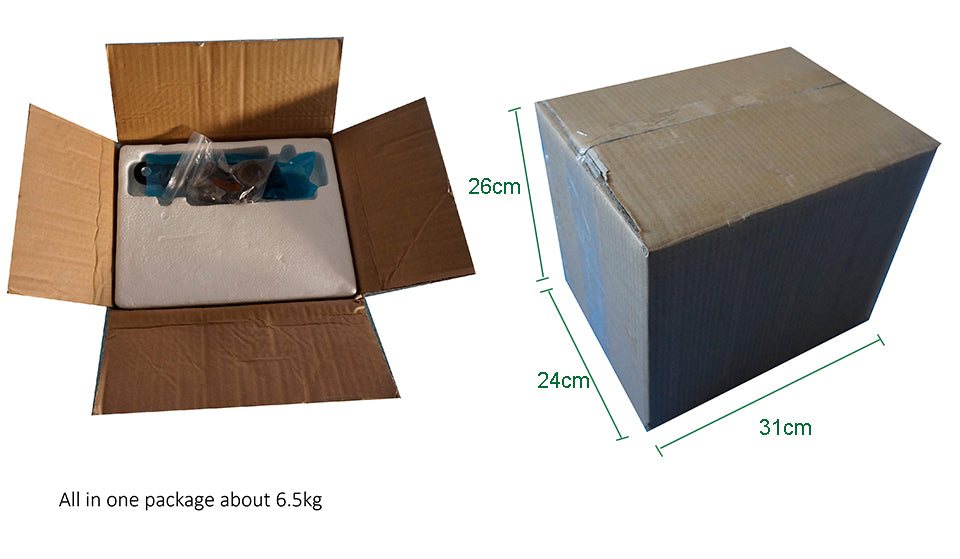

Package size
|
32*25*28cm
|
Max Torque : 80 N.m

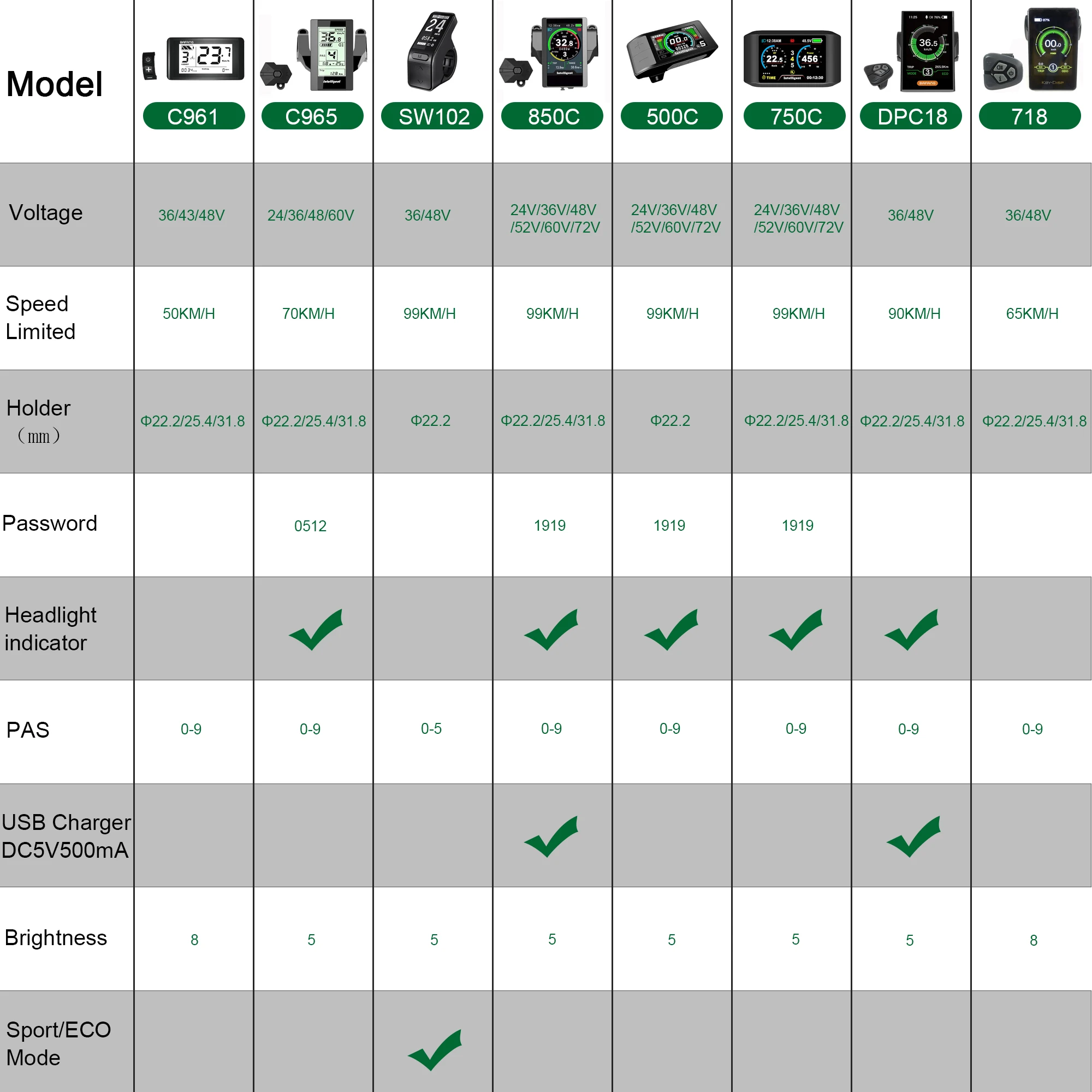

Display(Optional) : C961 C965 SW102 850C 750C DPC18 KD718 500C (colorful display)
Integrated Controller Current : 15A/18A
Stator Widing : 13T
Teeth Number(Optional) : 44T 46T 48T 52T(Optional)
Net Motor Weight : 4.2kg
Bracket bottom length : 68mm
Display Working Temperature : -20-80℃
Waterproof Grade : IP65
Efficiency : ≥80%
Pedal sensor : speed sensor
Noise Grade : ＜55dB
Shaft Standard : JIS
Certifications : CE / EN 14764 / ROHS
Salt Spray Test Standard(h) : 96
