Greenpedel hot sale 36V 350W geared motor ebike electric e bike conversion kit 20 inch rear wheel

Greenpedel hot sale 36V 350W geared motor ebike electric e bike conversion kit 20 inch rear wheel

£8,157.47 GBP
£0.00 GBP £8,157.47 GBP
Sale Sold out
Tax included.
Product Paramenters
Motor
36v 350w geared brushless hub motor with 9 pin waterproof cable
Rim
Aluminium double wall rim 1.5-1.95
Spokes
12G/13G
controller
36V48V 14A controller
PAS
BZ(4) 1:1 8 magnets PAS
throttle
130X thumb throttle
Brake
Ebrake(hydraulic brake)
Hall sensor
Yes
Brake type
V brake or Disc brake
Integrated Speed Sensor
Yes
Product Description

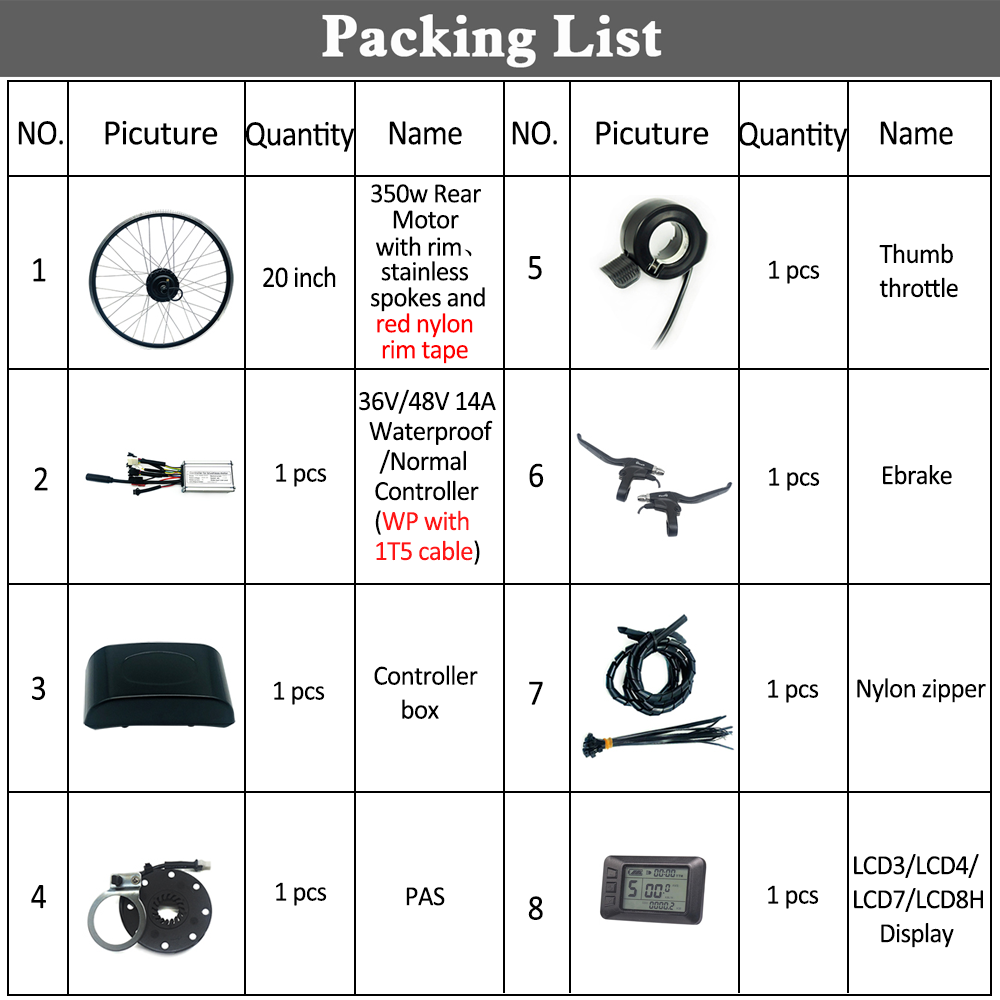

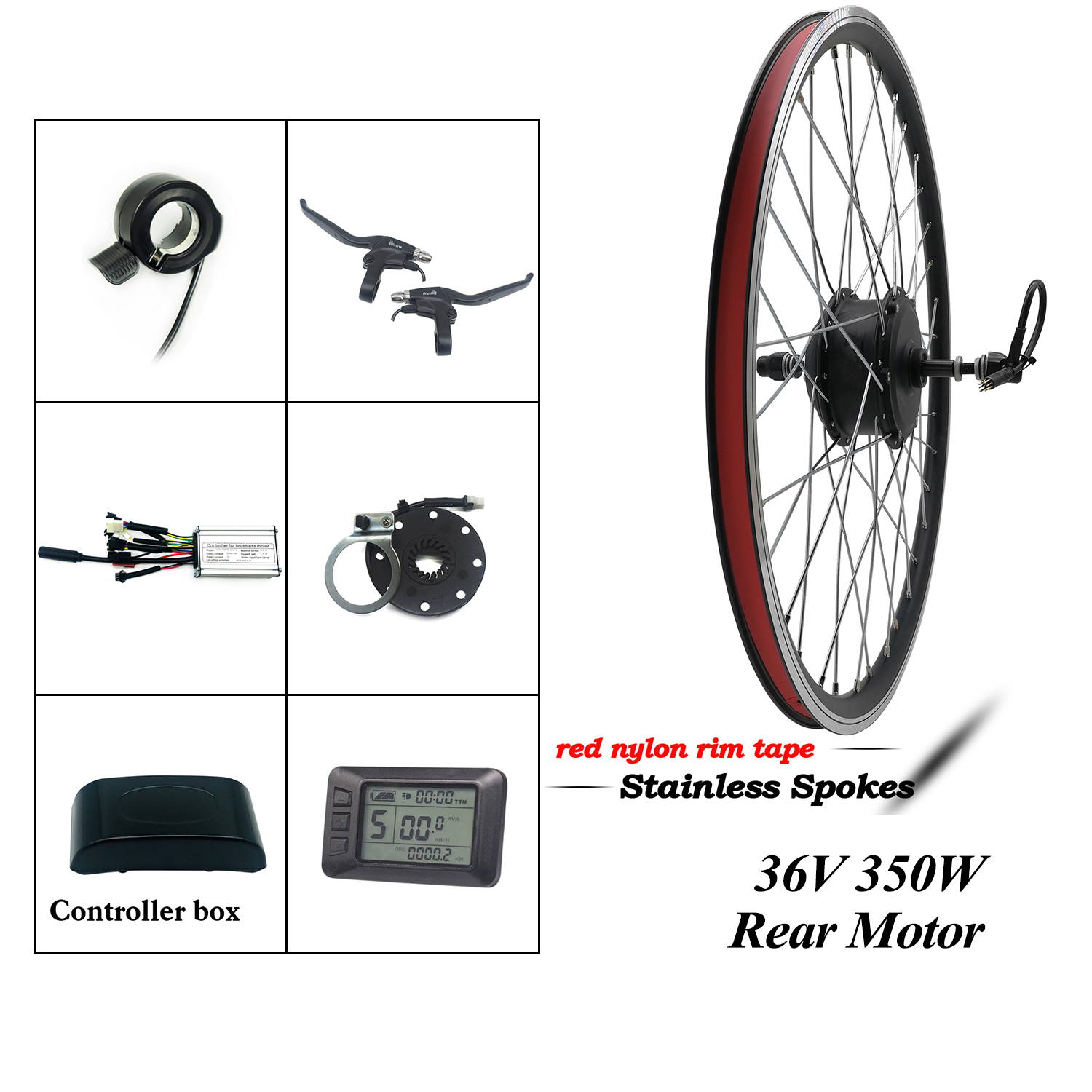

Packing List :

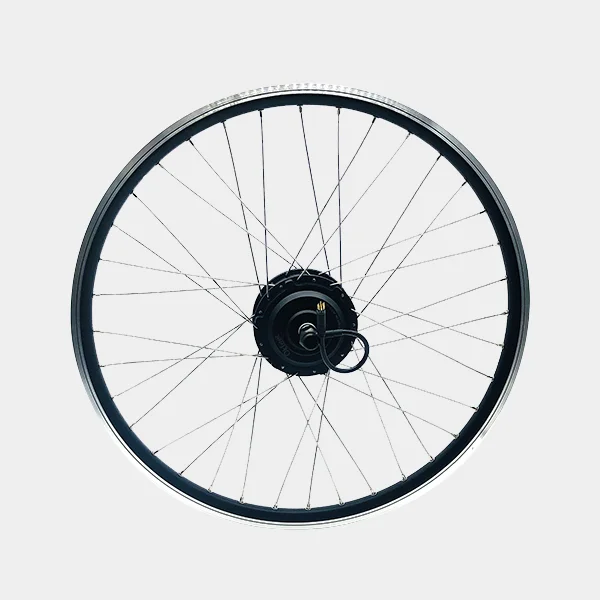

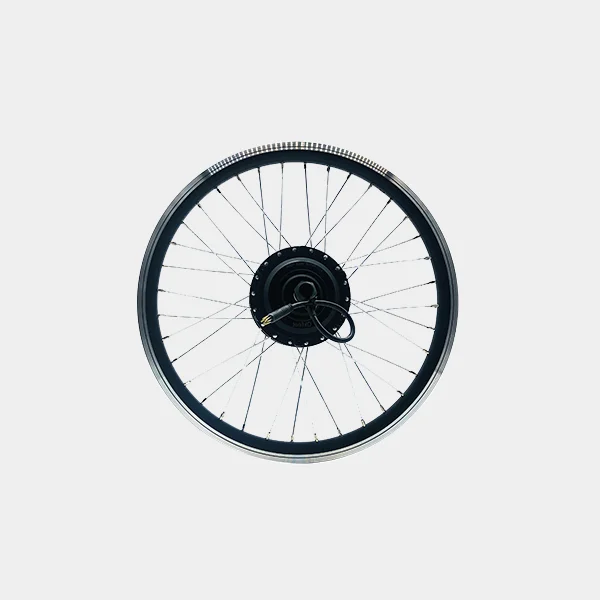

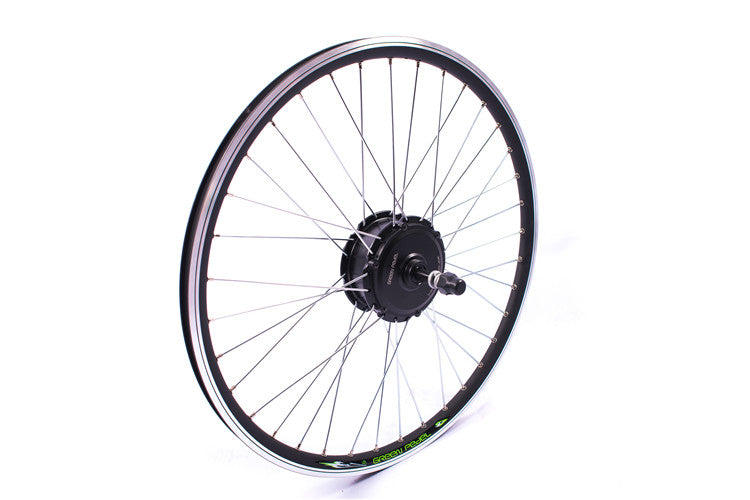

1 SET * 36V 350W rear gear hub motor wheel with rim and stainless spoke（Motor with Disc brake/V brake adaptor)
1 PCS * high quality red nylon rim tape
1 PCS * KT 36V 14A Controller(Waterproof with 1T5 cable)
1 PCS * Wuxing 130X Thumb Throttle（Both right and left hands can be used）
1 Pair * Wuxing 115PDD Ebrake（You can ask for a brake sensor instead .Please leave a message when you order.）
1 PCS * 1:1 PAS, 8 magnet
1 PCS * Controller Box
20 inch

26 inch
28 inch
This product provide 20 inch wheel size motor kit , if you need another , please click on the picture above or you can contact us directly.
Front wheel

Rear wheel
Cassette wheel
This product provide Rear wheel motor kit , if you need another , please click on the picture above or you can contact us directly.
250W-350W ebike kit

500W-1000W ebike kit
>1000W ebike kit

Fat tire ebike kit
Details Images

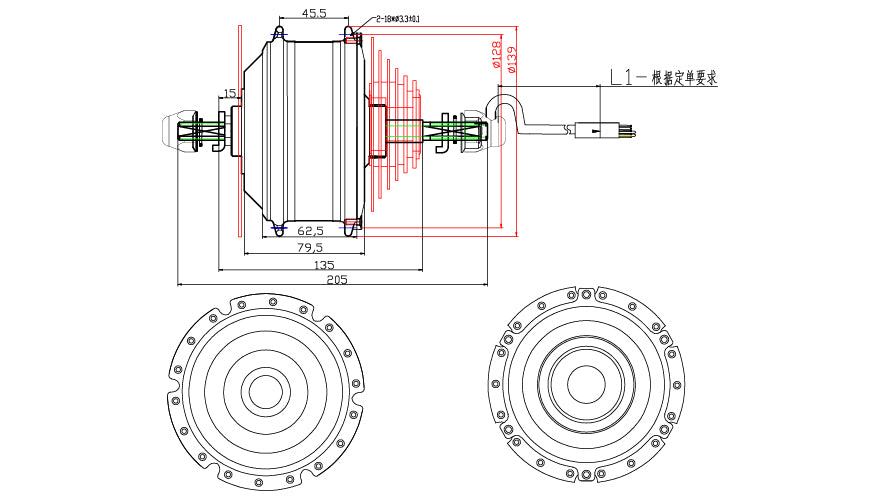

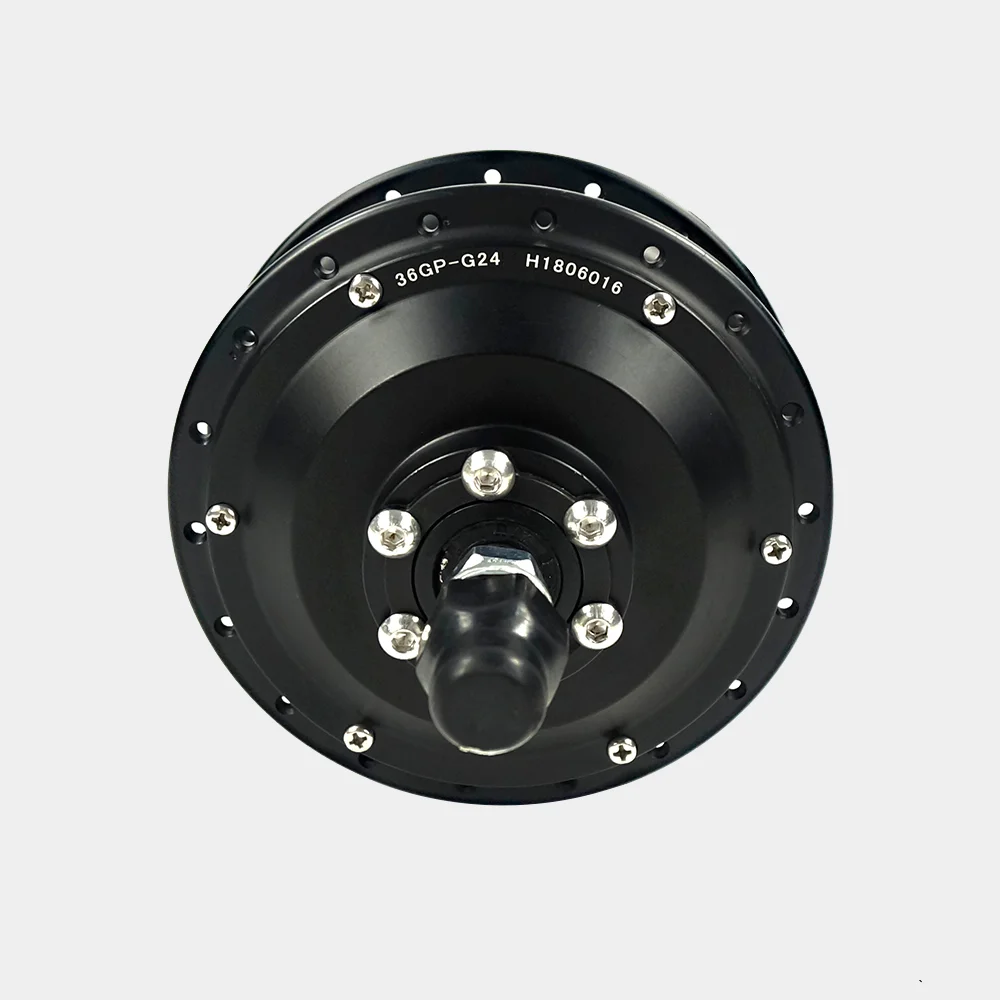

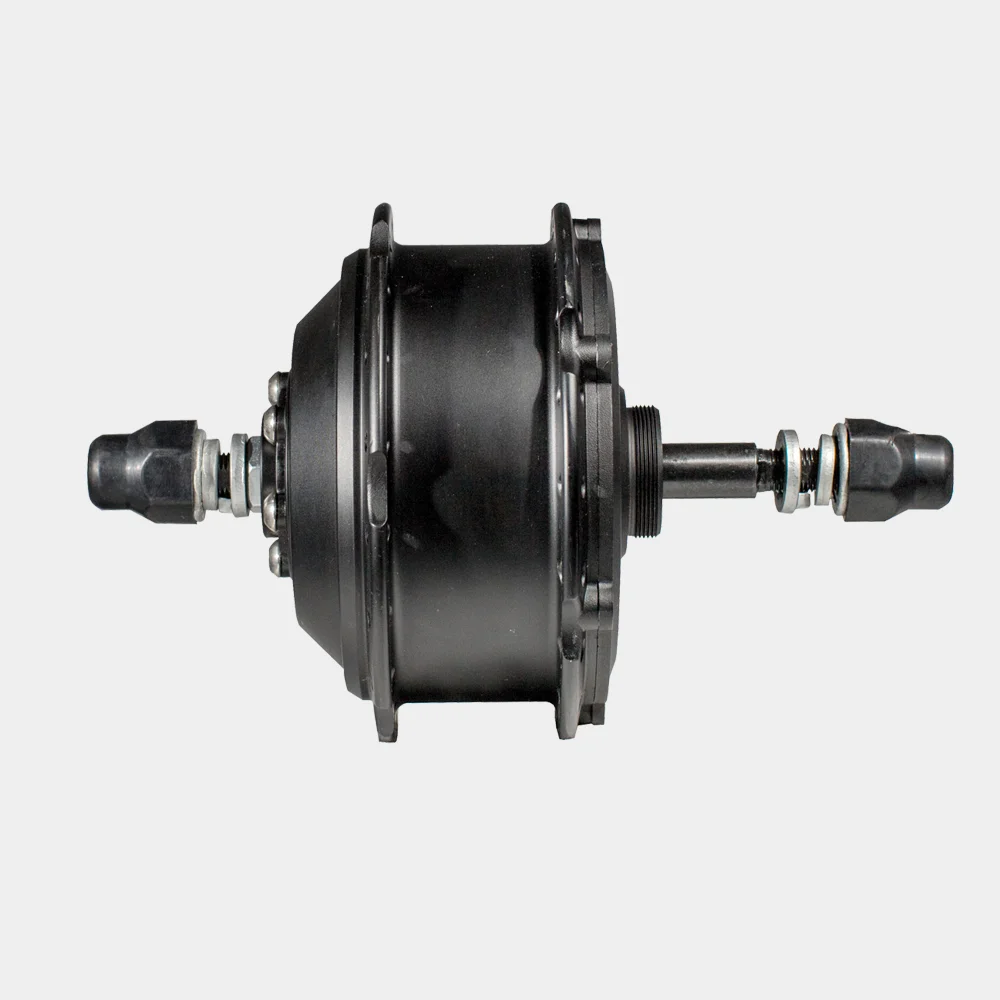

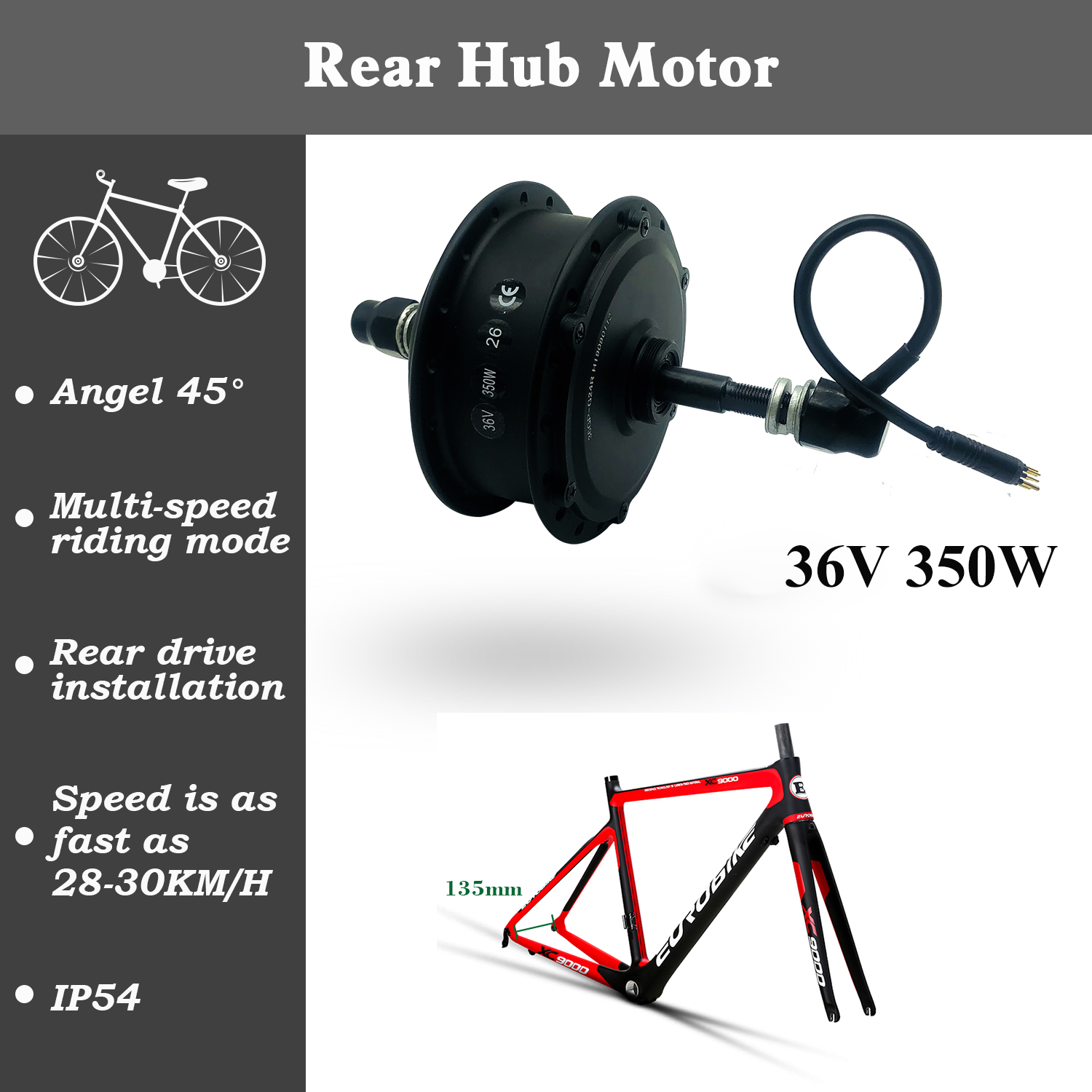

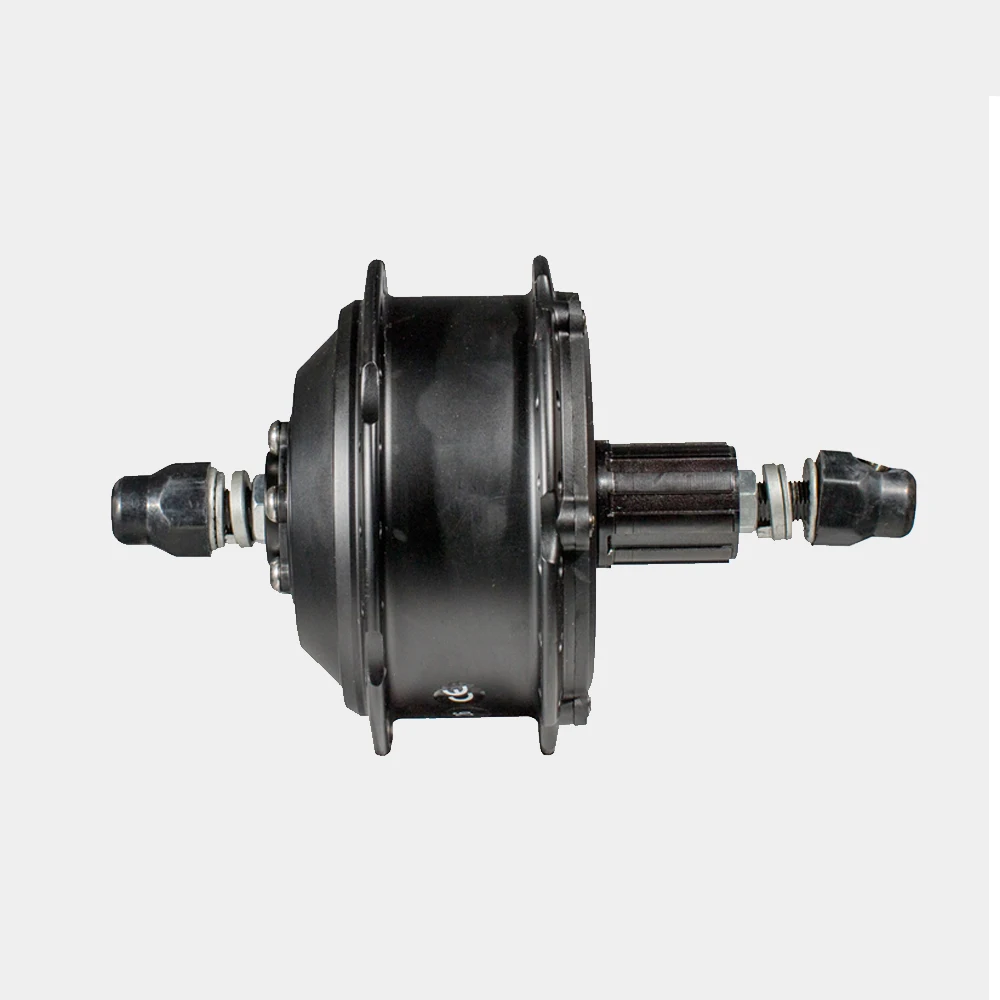

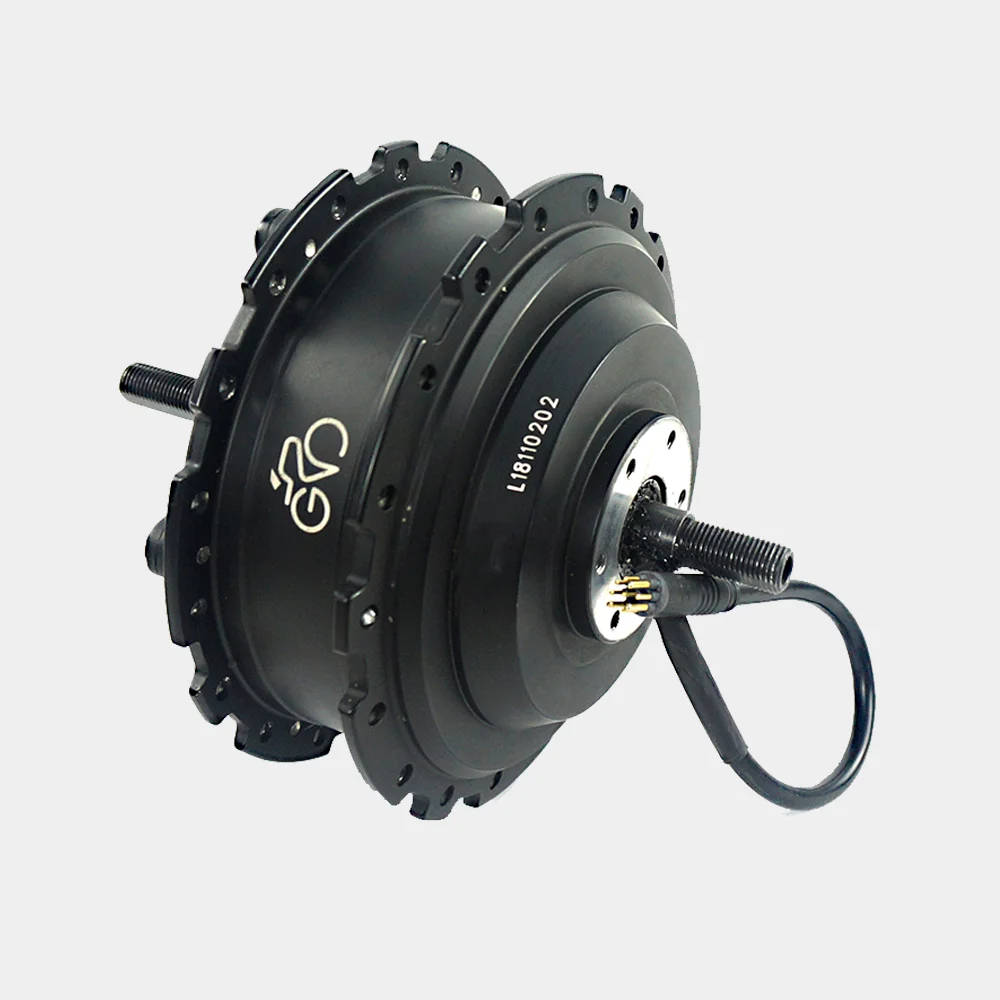

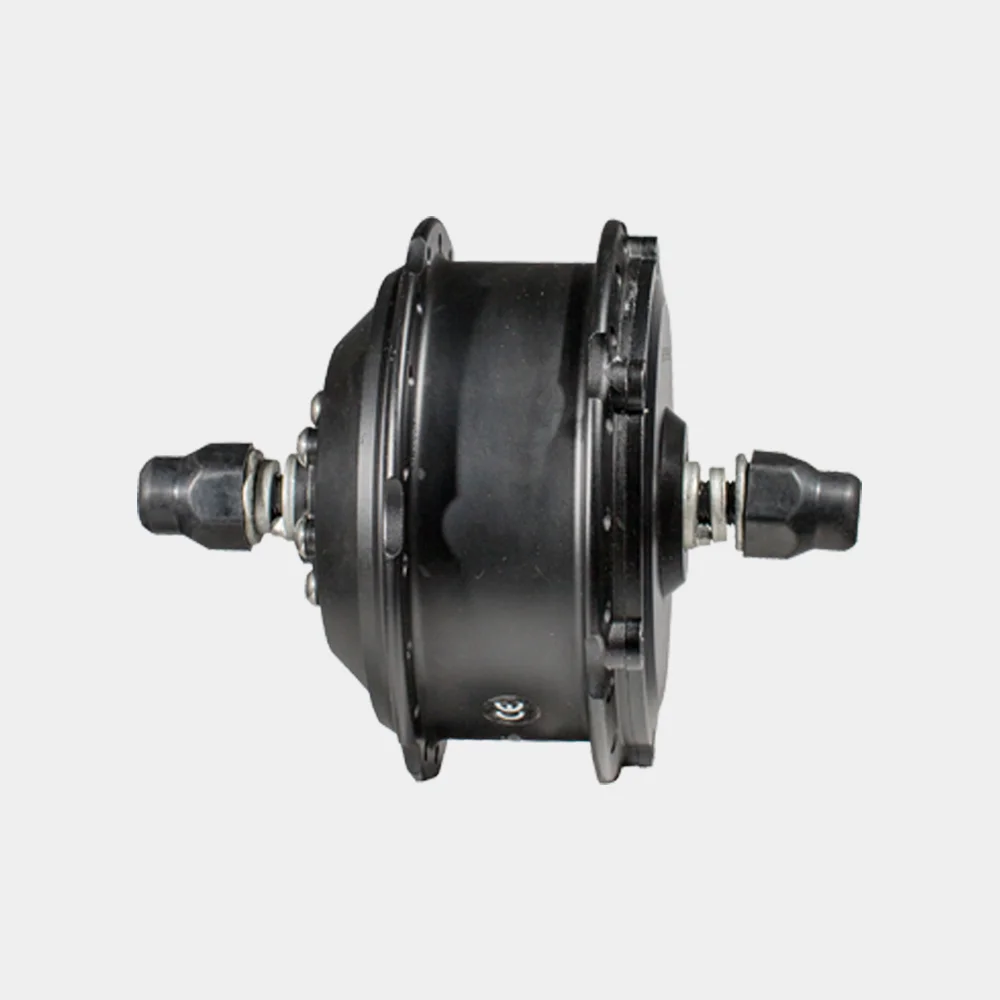

Motor :

Type : 36V 350W Rear hub motor
RPM : 270
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:4.4
Open Size : Rear Wheel 135 mm
Color : Black
Noise : ＜55db
Waterproof Grade : IP54​
​Connector : Julet 1.2 square 9 pin waterproof plug

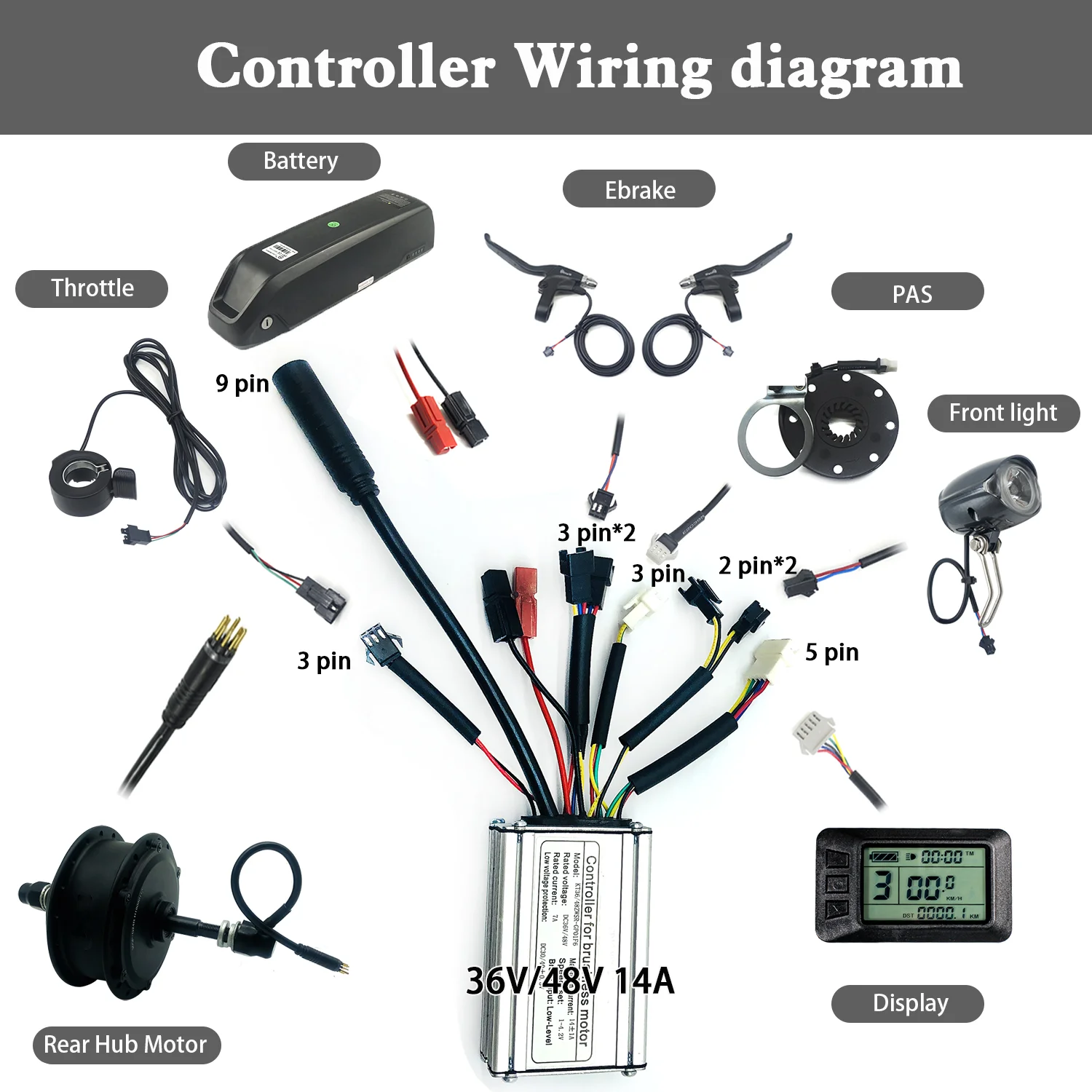

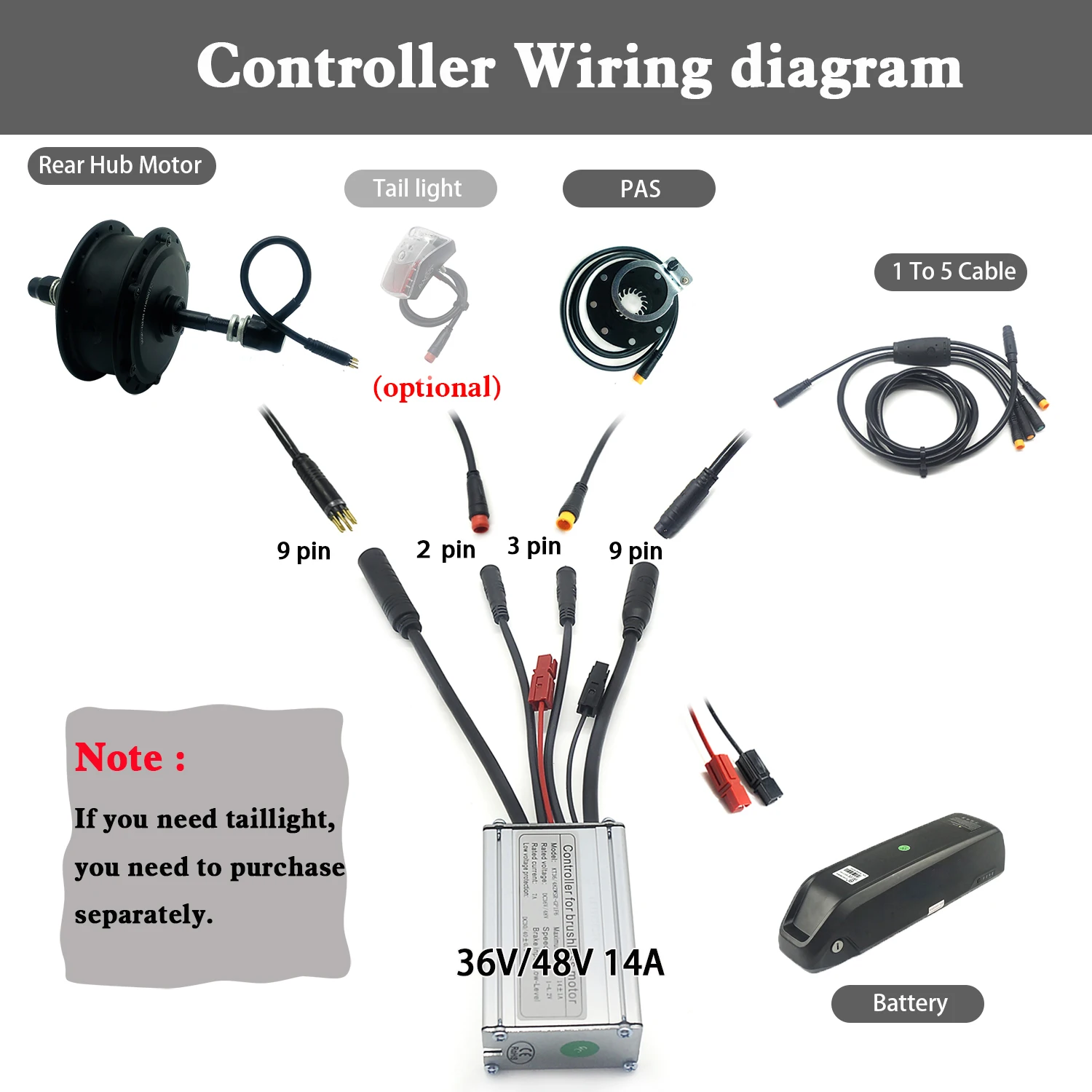

Controller :


Type : KT 36/48V 14A Controller
Color : Silver
Dimension : 80.5*52*30.5mm
Mosfet : 6 Mosfets
Maximum current : 14±1A
Rated current : 7A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 10-13cm

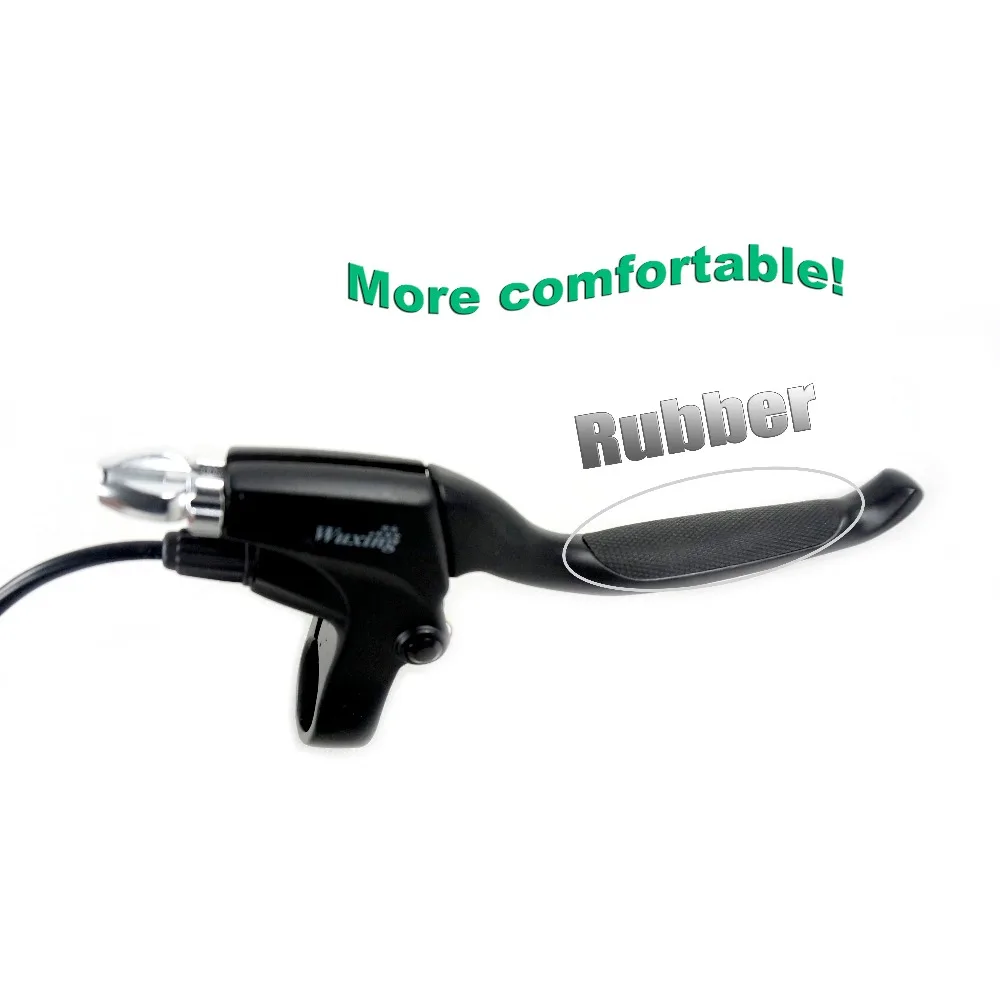

Brake :


Type : Wuxing 115PDD Ebrake-Cut Off Power
Material : Aluminum Alloy
Installation : Left/Right
Size : L 156mm W 105mm H 34mm
Voltage : 12V 24V 36V 48V 60V 72V
Color : Black
Cable Length : SM(180cm including the connector), WP(2 pin/3pin 25cm including the connector)

You can freely ask for a brake sensor instead if you need.



Throttle :


Type:130X Thumb Throttle
Voltage:36V,48V
Wire length:180cm(SM) ,25cm(Waterproof)
Plug:3 Pin Connector
Installation:Left/Right

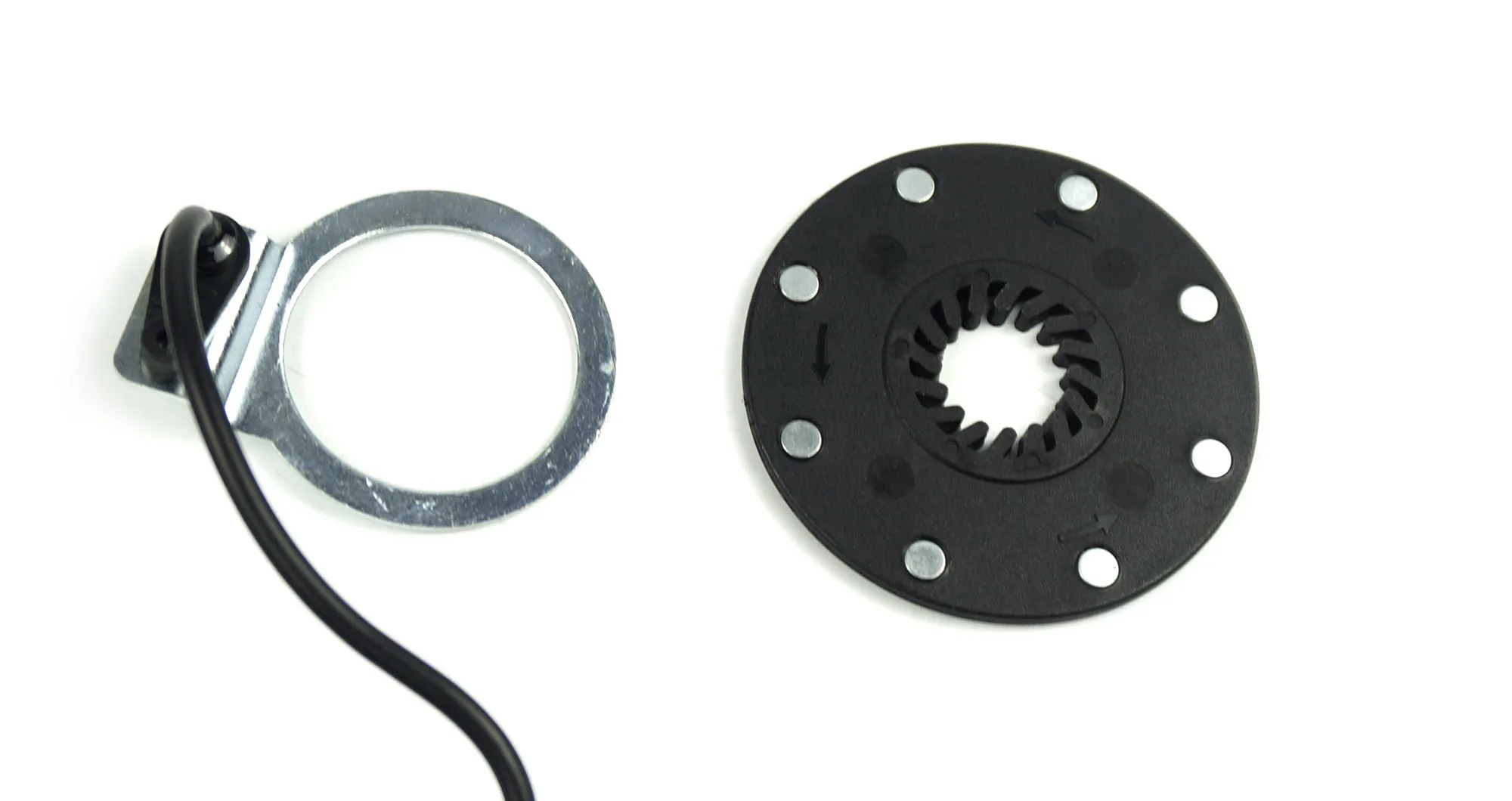

PAS :


Type : KT-8 PAS Senser
Installation : Left
Voltage : 36V,48V
Color : Black
Magnet : 8 Magnets
Cable Length : 80cm including the connector
Plug : 3 Pin Connector
